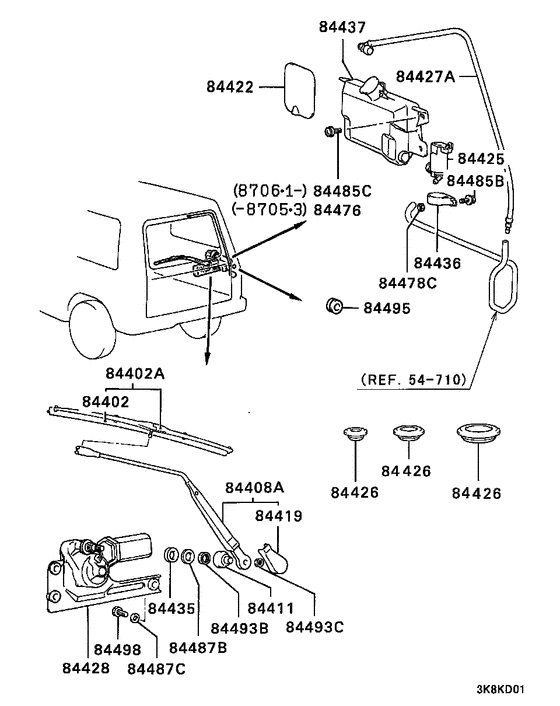

Rear window wiper & washer (ALL) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1990 - 1991
- Sales region
- MMNA
- Note
- HIGH LINE,WAGON,4FA/T CAL
- transmission
- 4FA/T
- grade
- HIGH LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84402
|
84402
MB543858
BLADE, RR WINDOW WIPER
|
MB543858 |
— | ||
| replacement | |||||
|
84402
|
84402
MB542556 BLADE, RR WINDOW WIPER384 |
MB542556 |
US $13.68 |
||
|
84402A
|
84402A
MB510387 BLADE ASSY, RR WINDOW WIPER388 |
MB510387 |
US $30.10 |
||
|
84408A
|
84408A
MB510385
ARM ASSY, RR WINDOW WIPER
|
MB510385 |
— | ||
|
84411
|
84411
MB171596
CAP, WINDSHIELD WIPER PIVOT
|
MB171596 |
— | ||
|
84419
|
84419
MB261592
COVER, RR WINDOW WIPER ARM HEAD
|
MB261592 |
— | ||
|
84422
|
84422
MB571693 LID, RR WINDOW WASHER TANK FILLER |
MB571693 |
US $5.92 |
||
|
84422
|
84422
MB734848 LID, RR WINDOW WASHER TANK FILLER |
MB734848 |
US $4.59 |
||
|
84422
|
84422
MB742620 LID, RR WINDOW WASHER TANK FILLER |
MB742620 |
US $3.70 |
||
|
84425
|
84425
MB286961 MOTOR, WINDSHIELD WASHER |
MB286961 |
US $69.83 |
||
|
84427A
|
84427A
MB261564
NOZZLE ASSY, RR WINDOW WASHER
|
MB261564 |
— | ||
|
84428
|
84428
MB510383
MOTOR, RR WINDOW WIPER
|
MB510383 |
— | ||
|
84435
|
84435
MB171592 GASKET, WINDSHIELD WIPER PIVOT |
MB171592 |
US $4.38 |
||
|
84436
|
84436
MB628751 SUPPORT, RR WINDOW WASHER MOTOR |
MB628751 |
US $4.44 |
||
|
84436
|
84436
MB683926 SUPPORT, RR WINDOW WASHER MOTOR |
MB683926 |
US $5.62 |
||
|
84437
|
84437
MB628750 TANK, RR WINDOW WASHER |
MB628750 |
from US $28.15 |
||
|
84478C
|
84478C
MF430004 NUT, ENG OIL PAN6 |
MF430004 |
from US $0.99 |
||
|
84485B
|
84485B
MF243624 BOLTWasher assembled,6x16 |
MF243624 |
from US $0.96 |
||
|
84487B
|
84487B
MB184017 WASHER, WINDSHIELD WIPERPlain,12.5 |
MB184017 |
US $3.11 |
||
|
84493B
|
84493B
MB171594 NUT, WINDSHIELD WIPERSpecial,12 |
MB171594 |
US $3.55 |
||
|
84493C
|
84493C
MF430004 NUT, ENG OIL PAN6 |
MF430004 |
from US $0.99 |
||
|
84498
|
84498
MS240252 BOLT, RR BODYWasher assembled,6x16 |
MS240252 |
US $2.81 |
||
|
54 710
|
Wiring & attaching parts
54 710
|
||||
|
54 710
|
Wiring & attaching parts
54 710
|
||||
|
54 710
|
Wiring & attaching parts
54 710
|
||||
