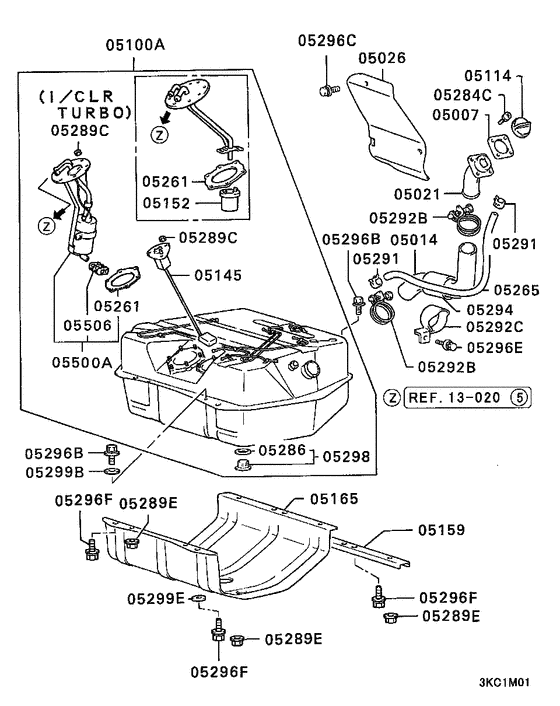

Fuel tank (WAGON..FOR COIL SUSPENSION MODEL) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1988 - 1991
- Sales region
- EUR
- Note
- SEMI-HIGH-ROOF(5-SEATS),4FA/T LHD
- transmission
- 4FA/T
- grade
- SEMI-HIGH-ROOF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05007
|
05007
MA152319 GASKET, FUEL FILLER NECK |
MA152319 |
US $4.10 |
||
|
05014
|
05014
MB554777 HOSE, FUEL FILLER |
MB554777 |
US $62.93 |
||
|
05021
|
05021
MB504622
PIPE,FUEL FILLER
|
MB504622 |
— | ||
|
05026
|
05026
MB554919
PROTECTOR,FUEL FILLER HOSE
|
MB554919 |
— | ||
|
05100A
|
05100A
MB554741
FUEL TANK ASSY
|
MB554741 |
— | ||
|
05114
|
05114
MB595689
CAP, FUEL TANK
|
MB595689 |
— | ||
| replacement | |||||
|
05114
|
05114
MB400395 CAP, FUEL TANK |
MB400395 |
from US $33.52 |
||
|
05145
|
05145
MB571603 GAUGE UNIT, FUEL TANK |
MB571603 |
from US $110.12 |
||
|
05159
|
05159
MB247210 REINFORCEMENT, FUEL TANK PROTECTOR |
MB247210 |
US $34.20 |
||
|
05165
|
05165
MB248948 PROTECTOR, FUEL TANK |
MB248948 |
US $65.66 |
||
|
05261
|
05261
MB400461 GASKET, FUEL TANK GAUGE |
MB400461 |
from US $5.54 |
||
|
05265
|
05265
MB595287 HOSE, FUEL TANK |
MB595287 |
US $36.26 |
||
|
05284C
|
05284C
MB400513 SCREW, FUEL TANKWasher assembled,6x12 |
MB400513 |
US $3.69 |
||
|
05286
|
05286
MB329078 GASKET, FUEL TANK8 |
MB329078 |
US $4.65 |
||
|
05286
|
05286
MT199415
GASKET, FUEL TANK
|
MT199415 |
— | ||
|
05289C
|
05289C
MS440501 NUT, FUEL TANKWasher assembled,5 |
MS440501 |
from US $1.03 |
||
|
05289E
|
05289E
MB288653 NUT, ENG RR MOUNTINGFlange self locking,10 |
MB288653 |
from US $1.42 |
||
|
05291
|
05291
MS660173 CLIP, FUEL TANKD=18.5 |
MS660173 |
from US $1.54 |
||
|
05292B
|
05292B
MF661028 CLAMP, FUEL TANKD=60 |
MF661028 |
US $2.74 |
||
|
05292C
|
05292C
MB554918 CLAMP, FUEL TANK |
MB554918 |
US $19.24 |
||
|
05294
|
05294
MB129146 TUBE, FUEL TANKSoft vinyl,60x1000 |
MB129146 |
US $3.83 |
||
|
05296B
|
05296B
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
05296C
|
05296C
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
05296E
|
05296E
MF240023 BOLT, FUEL TANKWasher assembled,6x12 |
MF240023 |
from US $0.60 |
||
|
05296F
|
05296F
MS240130 BOLT, FUEL TANKWasher assembled,10x30 |
MS240130 |
US $2.66 |
||
|
05298
|
05298
MB075290
PLUG, FUEL TANK
|
MB075290 |
— | ||
|
05298
|
05298
MB527239 PLUG, FUEL TANK8 |
MB527239 |
from US $8.64 |
||
|
05299B
|
05299B
MF450885 WASHER, FUEL TANKTooth,8 |
MF450885 |
US $2.37 |
||
|
05299E
|
05299E
MF450886 WASHER, FUEL TANKTooth,10 |
MF450886 |
US $1.92 |
||
|
05500A
|
05500A
MB598093 FUEL PUMP ASSY |
MB598093 |
US $1,022.11 |
||
|
05506
|
05506
MB400814 FILTER, FUEL PUMP |
MB400814 |
US $75.48 |
||
|
