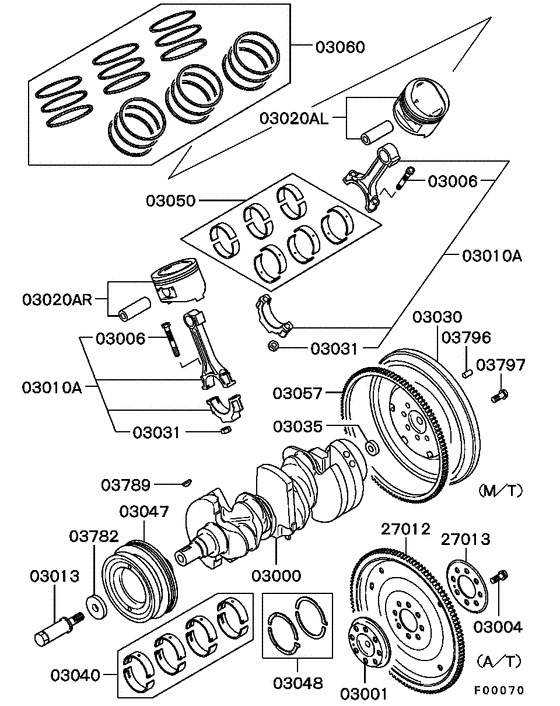

Piston & crankshaft (ALL) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1988 - 1991
- Sales region
- EUR
- Note
- SEMI-HIGH-ROOF(5-SEATS),4FA/T LHD
- transmission
- 4FA/T
- grade
- SEMI-HIGH-ROOF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
03000
|
03000
MD129529 CRANKSHAFT |
MD129529 |
US $2,073.60 |
||
|
03000
|
03000
MD144525 CRANKSHAFT |
MD144525 |
US $1,509.68 |
||
|
03001
|
03001
MD729059
ADAPTER, CRANKSHAFT A/T DRIVE PLATE
|
MD729059 |
— | ||
|
03004
|
03004
MD113400 BOLT, A/T DRIVE PLATEFlange,10x25 |
MD113400 |
from US $3.26 |
||
|
03006
|
03006
MD096144
BOLT, CONNROD
|
MD096144 |
— | ||
| replacement | |||||
|
03006
|
03006
MN149212 BOLT, CONNROD9x58.5 |
MN149212 |
from US $3.78 |
||
|
03010A
|
03010A
MD096043 CONNECTING ROD ASSY |
MD096043 |
from US $150.27 |
||
|
03013
|
03013
MD138069
CENTER BOLT, CRANKSHAFT PULLEY
|
MD138069 |
— | ||
| replacement | |||||
|
03013
|
03013
1101A022 CENTER BOLT, CRANKSHAFT PULLEY14x40 |
1101A022 |
from US $9.30 |
||
|
03020AL
|
03020AL
MD119671 PISTON & PIN ASSY, RHStd b |
MD119671 |
US $128.76 |
||
|
03020AL
|
03020AL
MD131251 PISTON & PIN ASSY, RHO/size 0.25 |
MD131251 |
US $153.92 |
||
|
03020AL
|
03020AL
MD131252 PISTON & PIN ASSY, RHO/size 0.50 |
MD131252 |
US $128.76 |
||
|
03020AL
|
03020AL
MD131253 PISTON & PIN ASSY, RHO/size 0.75 |
MD131253 |
US $153.92 |
||
|
03020AL
|
03020AL
MD131254 PISTON & PIN ASSY, RHO/size 1.00 |
MD131254 |
US $128.76 |
||
|
03020AL
|
03020AL
MD152562 PISTON & PIN ASSY, LHStd a |
MD152562 |
US $102.86 |
||
|
03020AL
|
03020AL
MD152563 PISTON & PIN ASSY, LHStd b |
MD152563 |
US $128.76 |
||
|
03020AL
|
03020AL
MD152564 PISTON & PIN ASSY, LHStd c |
MD152564 |
US $102.86 |
||
|
03020AL
|
03020AL
MD152575 PISTON & PIN ASSY, LHO/size 0.25 |
MD152575 |
US $153.92 |
||
|
03020AL
|
03020AL
MD152576 PISTON & PIN ASSY, LHO/size 0.50 |
MD152576 |
US $128.76 |
||
|
03020AL
|
03020AL
MD152577 PISTON & PIN ASSY, LHO/size 0.75 |
MD152577 |
US $153.92 |
||
|
03020AL
|
03020AL
MD152578 PISTON & PIN ASSY, LHO/size 1.00 |
MD152578 |
US $128.76 |
||
|
03020AR
|
03020AR
MD119670 PISTON & PIN ASSY, RHStd a |
MD119670 |
US $102.86 |
||
|
03020AR
|
03020AR
MD119671 PISTON & PIN ASSY, RHStd b |
MD119671 |
US $128.76 |
||
|
03020AR
|
03020AR
MD119672 PISTON & PIN ASSY, RHStd c |
MD119672 |
US $102.86 |
||
|
03020AR
|
03020AR
MD131251 PISTON & PIN ASSY, RHO/size 0.25 |
MD131251 |
US $153.92 |
||
|
03020AR
|
03020AR
MD131252 PISTON & PIN ASSY, RHO/size 0.50 |
MD131252 |
US $128.76 |
||
|
03020AR
|
03020AR
MD131253 PISTON & PIN ASSY, RHO/size 0.75 |
MD131253 |
US $153.92 |
||
|
03020AR
|
03020AR
MD131254 PISTON & PIN ASSY, RHO/size 1.00 |
MD131254 |
US $128.76 |
||
|
03031
|
03031
MD006704 NUT, CONNROD9 |
MD006704 |
from US $4.33 |
||
|
03040
|
03040
MD105269 BEARING SET, CRANKSHAFTPlain,std |
MD105269 |
US $204.24 |
||
|
03047
|
03047
MD141468 PULLEY, CRANKSHAFTV-ditch |
MD141468 |
US $389.38 |
||
|
03048
|
03048
MD116890
THRUST BEARING SET, CRANKSHAFT
|
MD116890 |
— | ||
| replacement | |||||
|
03048
|
03048
1052A271 THRUST BEARING SET, CRANKSHAFTPlain |
1052A271 |
from US $15.97 |
||
|
03050
|
03050
MD105277
BEARING SET, CONNROD
|
MD105277 |
— | ||
|
03060
|
03060
MD129548 RING SET, PISTONStd |
MD129548 |
US $356.72 |
||
|
03060
|
03060
MD129549 RING SET, PISTONO/size 0.25 |
MD129549 |
US $390.21 |
||
|
03060
|
03060
MD129550 RING SET, PISTONO/size 0.50 |
MD129550 |
US $323.23 |
||
|
03060
|
03060
MD129551 RING SET, PISTONO/size 0.75 |
MD129551 |
US $390.21 |
||
|
03060
|
03060
MD129552 RING SET, PISTONO/size 1.00 |
MD129552 |
US $323.23 |
||
|
03782
|
03782
MD096930
WASHER, CRANKSHAFT PULLEY
|
MD096930 |
— | ||
| replacement | |||||
|
03782
|
03782
MR994412 WASHER, CRANKSHAFT PULLEY14.5 |
MR994412 |
from US $4.97 |
||
|
03789
|
03789
MD008959 KEY, CRANKSHAFT |
MD008959 |
from US $2.03 |
||
|
03797
|
03797
MD113400 BOLT, A/T DRIVE PLATEFlange,10x25 |
MD113400 |
from US $3.26 |
||
|
27012
|
27012
MD729060 PLATE, A/T DRIVE |
MD729060 |
US $158.69 |
||
|
27013
|
27013
MD719871
PLATE, A/T DRIVE PLATE ADAPTER
|
MD719871 |
— | ||
| replacement | |||||
|
27013
|
27013
MD760089 PLATE, A/T DRIVE PLATE ADAPTER |
MD760089 |
from US $8.33 |
||
