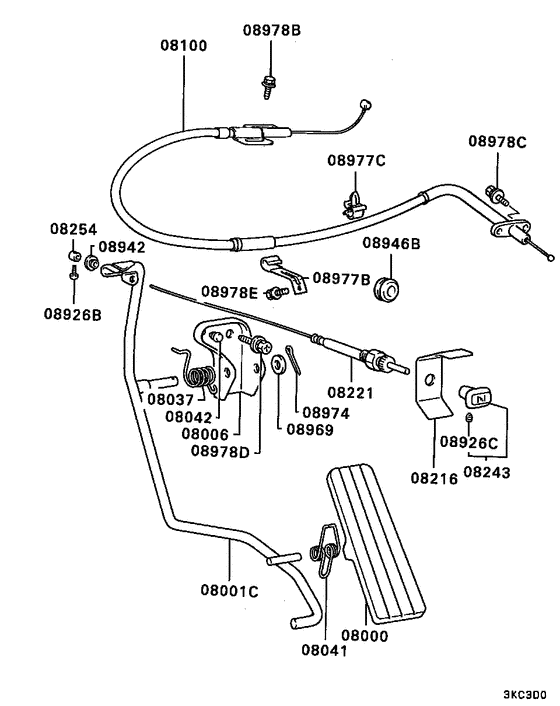

Engine control (RHD) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1988 - 1991
- Sales region
- EUR
- Note
- SEMI-HIGH-ROOF(7-SEATS),4FA/T RHD
- transmission
- 4FA/T
- grade
- SEMI-HIGH-ROOF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
08000
|
08000
MB011432
PEDAL, ACCEL
|
MB011432 |
— | ||
|
08001C
|
08001C
MB356035
ARM, ACCEL PEDAL
|
MB356035 |
— | ||
|
08006
|
08006
MB011397
BRACKET, ACCEL PEDAL ARM
|
MB011397 |
— | ||
|
08006
|
08006
MB539328 BRACKET, ACCEL PEDAL ARM |
MB539328 |
US $28.12 |
||
|
08037
|
08037
MA152074 SPRING, ACCEL PEDAL ARM RETURN |
MA152074 |
US $5.88 |
||
|
08041
|
08041
MB322351
SPRING, ACCEL PEDAL RETURN
|
MB322351 |
— | ||
|
08042
|
08042
MA152079 STOPPER, ACCEL PEDAL ARM |
MA152079 |
US $3.56 |
||
|
08042
|
08042
MB539326
STOPPER, ACCEL PEDAL ARM
|
MB539326 |
— | ||
| replacement | |||||
|
08042
|
08042
MA152079 STOPPER, ACCEL PEDAL ARM |
MA152079 |
US $3.56 |
||
|
08100
|
08100
MB539310 CABLE, ACCEL |
MB539310 |
US $36.26 |
||
|
08100
|
08100
MB539312 CABLE, CRUISE CONTROL |
MB539312 |
US $56.98 |
||
|
08926B
|
08926B
MF200025 SCREW, ROCKER COVERMachine,4x8 |
MF200025 |
US $2.19 |
||
|
08926C
|
08926C
MB181114 SCREW, ENG IDLE CONTROL EQUIP5x4 |
MB181114 |
US $3.56 |
||
|
08946B
|
08946B
MS660183 PLUG, ENG STOP CONTROL LINKAGERubber,d=20 |
MS660183 |
US $1.40 |
||
| replacement | |||||
|
08946B
|
08946B
MU670023 PLUG,CHASSIS FRAMERubber,20 |
MU670023 |
from US $2.16 |
||
|
08969
|
08969
MA152064 WASHER, WATER SEPARATOR INR |
MA152064 |
US $4.24 |
||
|
08974
|
08974
MF472067 PIN, WATER SEPARATOR INRSplit,3x20 |
MF472067 |
from US $0.45 |
||
|
08977B
|
08977B
MB181199 CLIP, CRUISE CONTROL EQUIP15 |
MB181199 |
US $7.40 |
||
|
08977C
|
08977C
MU481043 CLIP, CRUISE CONTROL EQUIP7 |
MU481043 |
from US $2.16 |
||
|
08978B
|
08978B
MF243623 BOLT, FLYWHEEL HOUSINGWasher assembled,6x14 |
MF243623 |
US $2.74 |
||
|
08978C
|
08978C
MS240022 BOLT, CRUISE CONTROL EQUIPWasher assembled,6x20 |
MS240022 |
US $2.19 |
||
|
08978D
|
08978D
MS240045 BOLT, ACCEL CONTROL EQUIPWasher assembled,8x20 |
MS240045 |
US $2.07 |
||
|
08978E
|
08978E
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
