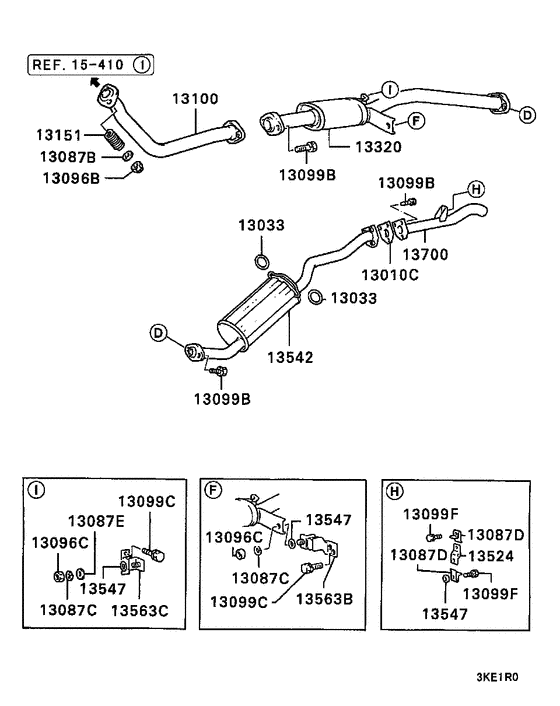

Exhaust pipe & muffler (EXHAUST PIPE,MUFFLER ETC.) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1989 - 1991
- Sales region
- EUR
- Note
- SEMI-HIGH-ROOF(I/CLR TURBO),5FM/T RHD
- transmission
- 5FM/T
- grade
- SEMI-HIGH-ROOF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13010C
|
13010C
MB313111 GASKET, EXHAUST PIPE |
MB313111 |
US $6.81 |
||
|
13033
|
13033
MB009776
O-RING, EXHAUST PIPE
|
MB009776 |
— | ||
|
13087B
|
13087B
MF450007 WASHER, CYLINDER HEADPlain,12 |
MF450007 |
from US $0.90 |
||
|
13087C
|
13087C
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
13087D
|
13087D
MB009769 WASHER, EXHAUST PIPESpring,9 |
MB009769 |
US $4.51 |
||
|
13087E
|
13087E
MF450005 WASHER, FLYWHEEL HOUSINGPlain,8 |
MF450005 |
from US $1.01 |
||
|
13096B
|
13096B
MB059359 NUT, CATALYTIC CONVERTERSelf locking,6t,12 |
MB059359 |
from US $1.66 |
||
|
13096C
|
13096C
MF430005 NUT, ROCKER COVER8 |
MF430005 |
from US $1.01 |
||
|
13099B
|
13099B
MF241284 BOLT, CYLINDER BLOCKWasher assembled,10x30 |
MF241284 |
from US $1.31 |
||
|
13099C
|
13099C
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
13099F
|
13099F
MF240055 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF240055 |
from US $1.23 |
||
|
13100
|
13100
MB611506 PIPE, EXHAUST, FR |
MB611506 |
US $210.16 |
||
|
13151
|
13151
MB179443 SPRING, CATALYTIC CONVERTER CUSHION |
MB179443 |
US $11.63 |
||
|
13320
|
13320
MB313706
PIPE, EXHAUST, CTR
|
MB313706 |
— | ||
| replacement | |||||
|
13320
|
13320
MB313705
PIPE, EXHAUST, CTR
|
MB313705 |
— | ||
|
13524
|
13524
MB009240
HANGER, EXHAUST MUFFLER
|
MB009240 |
— | ||
|
13542
|
13542
MB611685 MUFFLER, EXHAUST MAIN |
MB611685 |
US $296 |
||
|
13547
|
13547
MB179166
SEAT, EXHAUST MUFFLER HANGER
|
MB179166 |
— | ||
| replacement | |||||
|
13547
|
13547
MB651931 SEAT, EXHAUST MUFFLER HANGER |
MB651931 |
from US $2.52 |
||
|
13547
|
13547
MB651931 SEAT, EXHAUST MUFFLER HANGER |
MB651931 |
from US $2.52 |
||
|
13563B
|
13563B
MB252113 SUSPENDER, EXHAUST MUFFLER |
MB252113 |
from US $20.52 |
||
|
13563C
|
13563C
MB313477
SUSPENDER, EXHAUST MUFFLER
|
MB313477 |
— | ||
|
13700
|
13700
MB611687
PIPE, EXHAUST TAIL
|
MB611687 |
— | ||
| replacement | |||||
|
13700
|
13700
MB612221 PIPE, EXHAUST TAIL |
MB612221 |
US $57.46 |
||
|
