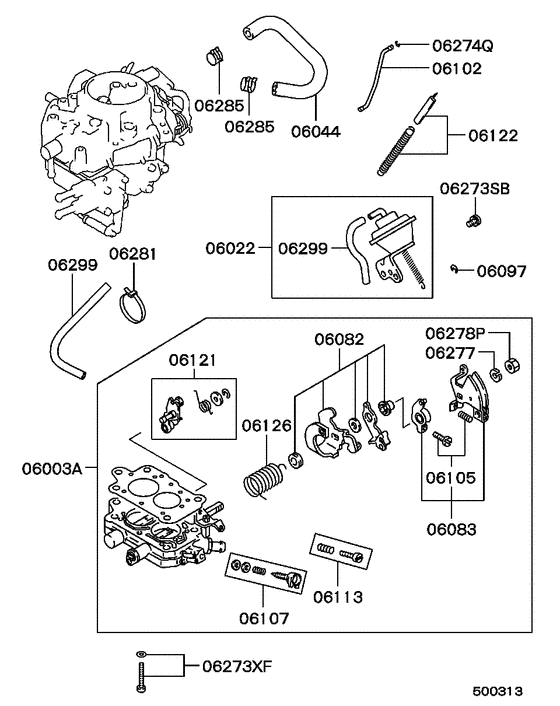

Carburetor (WITH EGR VALVE (INNER PARTS LOWER)) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1992 - 1993
- Sales region
- EUR
- Note
- METAL-TOP VAN/PART TIME 4WD,5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- METAL-TOP /PART
- body
- VAN/VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
06003A
|
06003A
MD617906
THROTTLE BODY ASSY,CARB
|
MD617906 |
— | ||
|
06022
|
06022
MD612948
CHAMBER KIT,CARB DEPRESSION
|
MD612948 |
— | ||
|
06044
|
06044
MD606650 HOSE, CARB AUTO CHOKE WATER |
MD606650 |
US $22.57 |
||
|
06082
|
06082
MD617135
LEVER KIT,CARB THROTTLE CONTROL LINK
|
MD617135 |
— | ||
|
06082
|
06082
MD617330
LEVER KIT,CARB THROTTLE CONTROL LINK
|
MD617330 |
— | ||
|
06083
|
06083
MD612770 LEVER KIT, CARB THROTTLE |
MD612770 |
US $91.02 |
||
|
06083
|
06083
MD617764
LEVER KIT,CARB THROTTLE
|
MD617764 |
— | ||
|
06097
|
06097
MD612426 SNAP RING, CARB DEPRESSION CHAMBER |
MD612426 |
US $4.44 |
||
|
06102
|
06102
MD606854 ROD, CARB CHOKE LEVER |
MD606854 |
US $18.50 |
||
|
06102
|
06102
MD617097
ROD,CARB CHOKE LEVER
|
MD617097 |
— | ||
|
06105
|
06105
MD606517 ADJUSTING SCREW KIT, FAST IDLE |
MD606517 |
US $6.81 |
||
|
06105
|
06105
MD617724 ADJUSTING SCREW KIT, FAST IDLE |
MD617724 |
US $6.22 |
||
|
06107
|
06107
MD606939 SCREW, CARB INR |
MD606939 |
US $24.62 |
||
|
06107
|
06107
MD612789
ADJUSTING SCREW KIT,CARB MIXTURE
|
MD612789 |
— | ||
|
06113
|
06113
MD606855 SCREW, CARB INR |
MD606855 |
US $11.40 |
||
|
06113
|
06113
MD617281
SCREW,CARB INR
|
MD617281 |
— | ||
|
06121
|
06121
MD612422 SPRING KIT, CARB SECONDARY THROTTLE |
MD612422 |
US $18.50 |
||
|
06122
|
06122
MD617812 SPRING KIT, CARB THROTTLE RETURN |
MD617812 |
from US $12.88 |
||
|
06126
|
06126
MD617656 SPRING, CARB THROTTLE RETURN |
MD617656 |
US $10.06 |
||
|
06273SB
|
06273SB
MF350047 SCREW, FLYWHEEL HOUSINGWasher assembled,5x10 |
MF350047 |
from US $0.88 |
||
|
06273XF
|
06273XF
MD612462 SCREW, CARB INR |
MD612462 |
US $13.76 |
||
|
06274Q
|
06274Q
MD612739 SNAP RING, CARB INR |
MD612739 |
US $2.66 |
||
|
06277
|
06277
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
06278P
|
06278P
MD600059 NUT, CARB INR |
MD600059 |
US $3.26 |
||
|
06281
|
06281
MD608632 CLIP, CARB INR |
MD608632 |
US $6.96 |
||
|
06285
|
06285
MS660240 CLIP, ROCKER COVERD=13.1 |
MS660240 |
from US $0.86 |
||
|
06299
|
06299
MD606951
HOSE, CARB DEPRESSION CHAMBER
|
MD606951 |
— | ||
| replacement | |||||
|
06299
|
06299
MD617777 HOSE, CARB INR1000 |
MD617777 |
US $35.57 |
||
|
06299
|
06299
MD617777 HOSE, CARB INR1000 |
MD617777 |
US $35.57 |
||
