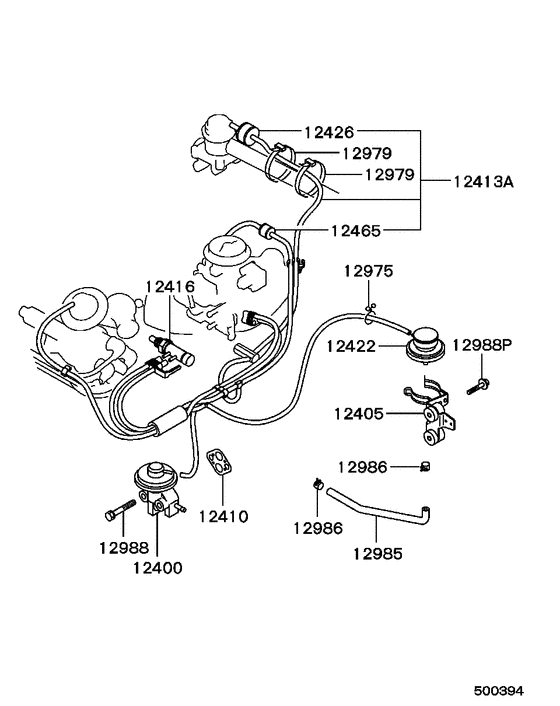

Emission control (WITH EGR VALVE) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1992 - 1993
- Sales region
- EUR
- Note
- METAL-TOP VAN/PART TIME 4WD,5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- METAL-TOP /PART
- body
- VAN/VAN
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12400
|
12400
MD140452
VALVE,EGR
|
MD140452 |
— | ||
|
12405
|
12405
MD159307
BRACKET,EMISSION VACUUM CONTROL REGULATOR VALVE
|
MD159307 |
— | ||
|
12410
|
12410
MD088604
GASKET, EGR VALVE
|
MD088604 |
— | ||
| replacement | |||||
|
12410
|
12410
MD119127 GASKET, EGR VALVE |
MD119127 |
from US $2.44 |
||
|
12413A
|
12413A
MD197402
HOSE & PIPE ASSY,EMISSION CONTROL
|
MD197402 |
— | ||
|
12416
|
12416
MD116701 THERMO-VALVE, EMISSION CONTROL |
MD116701 |
US $103.60 |
||
|
12422
|
12422
MD107893 VALVE, EMISSION VACUUM CONTROL REGULATOR |
MD107893 |
US $73.26 |
||
|
12426
|
12426
MD017917 VALVE, EMISSION CONTROL DELAY |
MD017917 |
US $20.72 |
||
|
12465
|
12465
MD142986
ORIFICE,EMISSION VACUUM CONTROL HOSE
|
MD142986 |
— | ||
|
12975
|
12975
MD006478 CLIP, FUEL VAPOR CONTROL LINE25 |
MD006478 |
US $2.66 |
||
|
12975
|
12975
MS470359 CLIP, ENG OIL FILLER16 |
MS470359 |
US $2.19 |
||
|
12979
|
12979
MB249339 BAND, ENG BREATHERL=169.5 |
MB249339 |
from US $1.50 |
||
|
12985
|
12985
MD167875
HOSE,EGR EQUIP
|
MD167875 |
— | ||
|
12986
|
12986
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
12988
|
12988
MF241263 BOLT, BALANCER BELT TRAINWasher assembled,8x50 |
MF241263 |
US $1.50 |
||
|
12988P
|
12988P
MF247232 BOLT, ELECTRIC FUEL PUMPWasher assembled,6x35 |
MF247232 |
US $2.66 |
||
