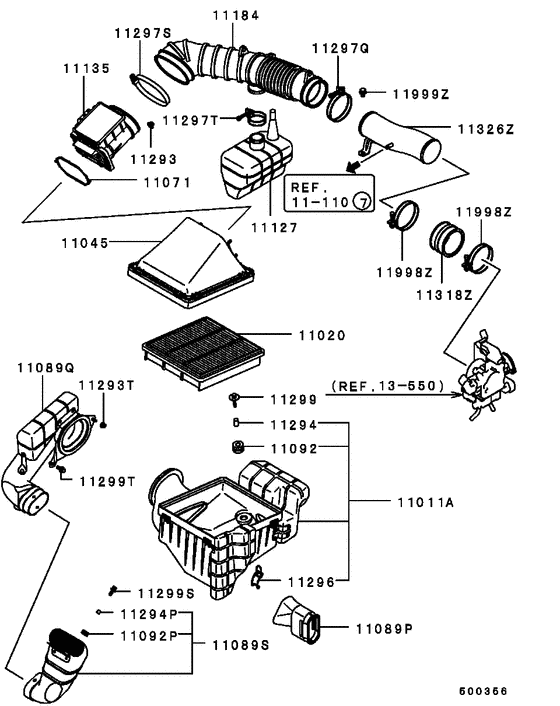

Air cleaner (-9703.3 W/O PRE AIR CLEANER) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1996 - 1999
- Sales region
- Japan
- Note
- SR-1/SX/ROOKIE(WIDE/SS4),4FA/T
- transmission
- 4FA/T
- grade
- SR-1/SX/ROOKIE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011A
|
11011A
MR312763 BODY ASSY, AIR CLEANER |
MR312763 |
US $94.72 |
||
|
11020
|
11020
MD620837
ELEMENT, AIR CLEANER
|
MD620837 |
— | ||
| replacement | |||||
|
11020
|
11020
MR571473 ELEMENT, AIR CLEANERNon woven |
MR571473 |
from US $53.74 |
||
|
11045
|
11045
MR312766 COVER, AIR CLEANER |
MR312766 |
US $80.66 |
||
|
11071
|
11071
MD151672 GASKET, AIR CLEANER AIR FLOW SENSOR |
MD151672 |
from US $6.49 |
||
|
11089P
|
11089P
MR281239 DUCT, AIR CLEANER INTAKE |
MR281239 |
US $92.50 |
||
|
11089Q
|
11089Q
MR281241 DUCT, AIR CLEANER INTAKE |
MR281241 |
US $97.68 |
||
|
11089Q
|
11089Q
MR323077 DUCT, AIR CLEANER INTAKE |
MR323077 |
US $99.90 |
||
|
11089S
|
11089S
MR281240 DUCT, AIR CLEANER INTAKE |
MR281240 |
US $72.52 |
||
|
11089S
|
11089S
MR323076 DUCT, AIR CLEANER INTAKE |
MR323076 |
US $72.52 |
||
|
11092
|
11092
MR312768 INSULATOR, AIR CLEANER SUPPORT |
MR312768 |
from US $5.20 |
||
|
11092P
|
11092P
MD012711 INSULATOR, AIR CLEANER SUPPORT |
MD012711 |
US $2.96 |
||
|
11127
|
11127
MR266342
RESONATOR, AIR CLEANER
|
MR266342 |
— | ||
|
11135
|
11135
MD183609 SENSOR, AIR CLEANER AIR FLOW |
MD183609 |
US $1,045.10 |
||
|
11135
|
11135
MD357338 SENSOR, AIR CLEANER AIR FLOW |
MD357338 |
US $953.16 |
||
|
11184
|
11184
MR266284 DUCT, AIR CLEANER TO THROTTLE BODY |
MR266284 |
US $282.57 |
||
|
11293
|
11293
MF434103 NUT, ENG OIL PANFlange,6 |
MF434103 |
from US $0.10 |
||
|
11293T
|
11293T
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
11294
|
11294
MR312769 COLLAR, AIR CLEANER |
MR312769 |
US $3.83 |
||
|
11294P
|
11294P
MD012712 COLLAR, AIR CLEANER |
MD012712 |
US $4.14 |
||
|
11296
|
11296
MD620542 CLAMP, AIR CLEANER INR |
MD620542 |
US $9.30 |
||
|
11297Q
|
11297Q
MF661137 CLAMP, AIR CLEANER80 |
MF661137 |
from US $3.78 |
||
|
11297S
|
11297S
MD151059 CLAMP, AIR CLEANER |
MD151059 |
US $10.53 |
||
|
11297T
|
11297T
MF661123 CLAMP, AIR CLEANER48 |
MF661123 |
US $5.75 |
||
|
11299
|
11299
MD161216 BOLT, AIR CLEANERWasher assembled,6x30 |
MD161216 |
from US $1.74 |
||
|
11299S
|
11299S
MF243624 BOLTWasher assembled,6x16 |
MF243624 |
from US $0.96 |
||
|
11299T
|
11299T
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
11318Z
|
11318Z
MD305983 HOSE, ENG AIR INTAKE TO THROTTLE BODY |
MD305983 |
US $25.99 |
||
|
11326Z
|
11326Z
MD332171 PIPE, ENG AIR INTAKE |
MD332171 |
US $51.80 |
||
|
11998Z
|
11998Z
MF661138 CLAMP, AIR CLEANER83 |
MF661138 |
from US $3.71 |
||
|
11999Z
|
11999Z
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
||
|
11 110
|
Rocker cover
11 110
|
||||
|
13 550
|
Injector & throttle body
13 550
|
||||
|
13 550
|
Injector & throttle body
13 550
|
||||
|
13 550
|
Injector & throttle body
13 550
|
||||
|
13 550
|
Injector & throttle body
13 550
|
||||
