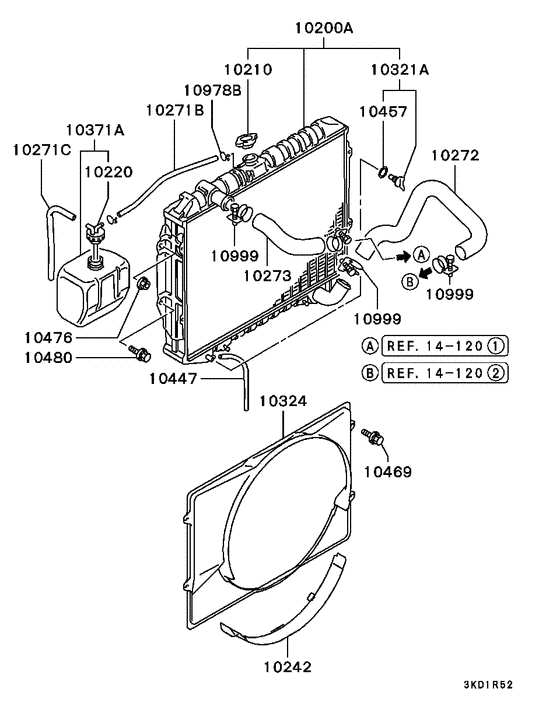

Radiator,hose & condenser tank (ALL) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1996 - 1999
- Sales region
- Japan
- Note
- SR-1/SX/ROOKIE(WIDE/SS4),4FA/T
- transmission
- 4FA/T
- grade
- SR-1/SX/ROOKIE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10200A
|
10200A
MB660083 RADIATOR ASSY |
MB660083 |
US $1,569.60 |
||
|
10210
|
10210
MB660735 CAP, RADIATOR |
MB660735 |
from US $21.10 |
||
|
10220
|
10220
MB598036 CAP, RADIATOR CONDENSER TANK |
MB598036 |
from US $13.30 |
||
|
10242
|
10242
MR239645 COVER, RADIATOR UNDER |
MR239645 |
US $13.32 |
||
|
10271B
|
10271B
MS600623 HOSE, RADIATOR CONDENSER TANK7x2000 |
MS600623 |
from US $12.03 |
||
|
10271C
|
10271C
MB660535 HOSE, RADIATOR CONDENSER TANK |
MB660535 |
US $13.54 |
||
|
10272
|
10272
MR266508 HOSE, RADIATOR, LWR |
MR266508 |
US $30.10 |
||
|
10273
|
10273
MR266507 HOSE, RADIATOR, UPR |
MR266507 |
from US $12.27 |
||
|
10321A
|
10321A
MB008067
PLUG ASSY, RADIATOR
|
MB008067 |
— | ||
| replacement | |||||
|
10321A
|
10321A
MR508982 PLUG ASSY, RADIATOR |
MR508982 |
from US $6.22 |
||
|
10321A
|
10321A
MR508982 PLUG ASSY, RADIATOR |
MR508982 |
from US $6.22 |
||
|
10324
|
10324
MR266509 SHROUD, COOLING FAN |
MR266509 |
US $97.68 |
||
|
10371A
|
10371A
MB605260 TANK ASSY, RADIATOR CONDENSER |
MB605260 |
from US $21.76 |
||
|
10447
|
10447
MS610314 HOSE, RADIATOR CONDENSER TANK7x2000 |
MS610314 |
US $48.56 |
||
|
10457
|
10457
MB007701 O-RING, RADIATORD=5 |
MB007701 |
from US $3.32 |
||
|
10457
|
10457
MR497347 O-RING, RADIATOR |
MR497347 |
US $2.81 |
||
|
10469
|
10469
MF243624 BOLTWasher assembled,6x16 |
MF243624 |
from US $0.96 |
||
|
10476
|
10476
MS440523 NUT, FUEL TANKWasher assembled,8 |
MS440523 |
from US $0.70 |
||
|
10480
|
10480
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
10978B
|
10978B
MS660205 CLIP, RADIATOR PIPINGD=11.5 |
MS660205 |
from US $1.33 |
||
|
10999
|
10999
MA609112 CLAMP, RADIATOR PIPINGD=44 |
MA609112 |
from US $4.13 |
||
|
10999
|
10999
MB356968
CLIP, RADIATOR PIPING
|
MB356968 |
— | ||
| replacement | |||||
|
10999
|
10999
MR404538 CLIP, RADIATOR PIPINGD=37 |
MR404538 |
from US $2.83 |
||
|
