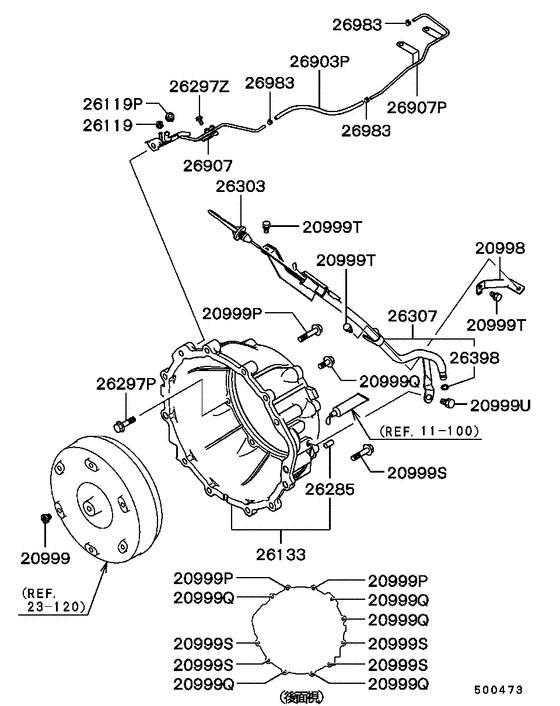

A/t case (ALL (HOUSING,CONNECTING PARTS)) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1997
- Sales region
- Japan
- Note
- JS(J-TOP/SS4),4FA/T
- transmission
- 4FA/T
- grade
- JS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20998
|
20998
MR111335 BRACKET, T/M CONNECTING |
MR111335 |
US $5.48 |
||
|
20999
|
20999
MD713228 BOLT, T/M CONNECTING |
MD713228 |
from US $5.97 |
||
|
20999P
|
20999P
MF140268 BOLT, ENG SUPPORT RODFlange,10x50 |
MF140268 |
from US $2.42 |
||
|
20999Q
|
20999Q
MF140260 BOLT, ROCKER COVERFlange,10x25 |
MF140260 |
from US $1.23 |
||
|
20999S
|
20999S
MF140267 BOLT, ENG MOUNTINGFlange,10x45 |
MF140267 |
from US $2.18 |
||
|
20999T
|
20999T
MF241251 BOLT, CYLINDER HEADWasher assembled,8x16 |
MF241251 |
from US $0.98 |
||
|
20999T
|
20999T
MF244849 BOLT, ENG MOUNTINGWasher assembled,8x16 |
MF244849 |
US $2.60 |
||
|
20999U
|
20999U
MF244878 BOLT, CYLINDER HEADWasher assembled,10x20 |
MF244878 |
from US $1.50 |
||
|
26119
|
26119
MR176940 CAP, CLUTCH HOUSING BREATHER PIPE |
MR176940 |
from US $3.14 |
||
|
26119P
|
26119P
MR195599 CAP, A/T CASE BREATHER |
MR195599 |
from US $1.74 |
||
|
26133
|
26133
MR290238 HOUSING, A/T TORQUE CONVERTER |
MR290238 |
US $655.20 |
||
|
26285
|
26285
MF472405 PIN, CYLINDER BLOCKDowel,10x20 |
MF472405 |
from US $1.31 |
||
|
26297P
|
26297P
MF140266 BOLT, TIMING BELT TRAINFlange,10x40 |
MF140266 |
from US $1.48 |
||
|
26297Z
|
26297Z
MF240023 BOLT, FUEL TANKWasher assembled,6x12 |
MF240023 |
from US $0.60 |
||
|
26297Z
|
26297Z
MF240025 BOLT, ENG OIL PUMP INRWasher assembled,6x16 |
MF240025 |
US $1.92 |
||
|
26303
|
26303
MR388682
GAUGE, A/T OIL LEVEL
|
MR388682 |
— | ||
| replacement | |||||
|
26303
|
26303
MR567839
GAUGE, A/T OIL LEVEL
|
MR567839 |
— | ||
|
26307
|
26307
MR377704 TUBE, A/T OIL FILLER |
MR377704 |
US $74.74 |
||
|
26398
|
26398
MD707200
O-RING, OIL FILTER
|
MD707200 |
— | ||
| replacement | |||||
|
26398
|
26398
MR486844 O-RING, A/T CASE9.8 |
MR486844 |
from US $1.25 |
||
|
26903P
|
26903P
MS632192 HOSE, CRUISE CONTROL EQUIP3x2000 |
MS632192 |
US $11.22 |
||
|
26907
|
26907
MR357206 PIPE, A/T BREATHER |
MR357206 |
US $25.16 |
||
|
26907P
|
26907P
MR145666 PIPE, A/T BREATHER |
MR145666 |
US $15.54 |
||
|
26983
|
26983
MS660159 CLIP, VACUUM PUMPD=7.8 |
MS660159 |
from US $1.64 |
||
|
11 100
|
Liquid gasket
11 100
|
||||
|
23 120
|
A/t tor-con & oil pump
23 120
|
||||
