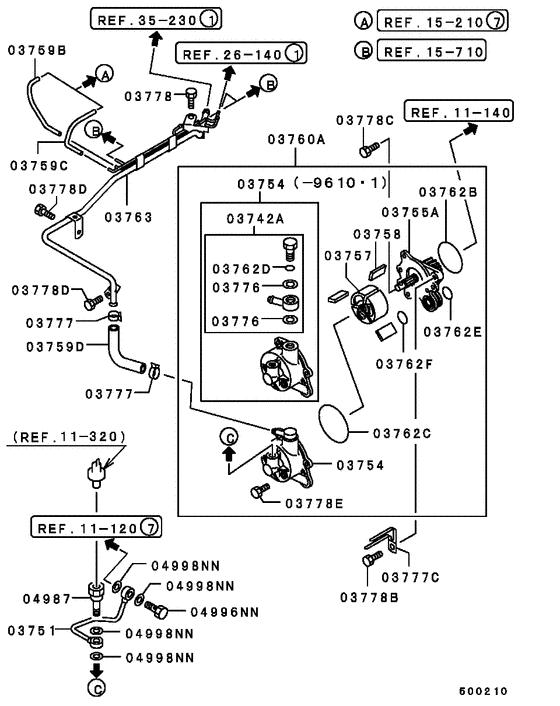

Alternator & vacuum pump (-9711.1 (VACUUM PUMP)) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1997
- Sales region
- Japan
- Note
- JS(J-TOP/SS4),4FA/T
- transmission
- 4FA/T
- grade
- JS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
03751
|
03751
ME200259
TUBE, VACUUM PUMP OIL FEED
|
ME200259 |
— | ||
| replacement | |||||
|
03751
|
03751
ME203478 TUBE, VACUUM PUMP OIL FEED |
ME203478 |
US $6.43 |
||
|
03751
|
03751
ME200818
HOSE, ALTERNATOR VACUUM PUMP OIL FEED
|
ME200818 |
— | ||
|
03754
|
03754
ME202487 CYLINDER, VACUUM PUMP |
ME202487 |
US $189.44 |
||
|
03755A
|
03755A
ME201576 FLANGE & SHAFT ASSY, VACUUM PUMP |
ME201576 |
US $398.94 |
||
|
03757
|
03757
ME201579 ROTOR, VACUUM PUMP |
ME201579 |
US $70.30 |
||
|
03758
|
03758
ME201578
VANE, VACUUM PUMP ROTOR
|
ME201578 |
— | ||
|
03758
|
03758
ME202773 VANE, VACUUM PUMP ROTOR |
ME202773 |
US $3.28 |
||
|
03759B
|
03759B
MS632392 HOSE, EMISSION CONTROL EQUIP3x2000 |
MS632392 |
US $54.72 |
||
|
03759C
|
03759C
MS633192 HOSE, EMISSION VACUUM CONTROL EQUIP3x2000 |
MS633192 |
US $48.10 |
||
|
03759D
|
03759D
ME200115 HOSE, VACUUM PUMP |
ME200115 |
from US $10.81 |
||
|
03759D
|
03759D
ME202809 HOSE, VACUUM PUMP9.5 |
ME202809 |
US $6.16 |
||
|
03760A
|
03760A
ME202046 VACUUM PUMP ASSY |
ME202046 |
US $668.30 |
||
|
03760A
|
03760A
ME202764 VACUUM PUMP ASSY |
ME202764 |
US $627.54 |
||
|
03762B
|
03762B
ME201138 O-RING, VACUUM PUMP |
ME201138 |
from US $6.86 |
||
|
03762C
|
03762C
ME201131 O-RING, VACUUM PUMP |
ME201131 |
from US $7.18 |
||
|
03762E
|
03762E
ME201133 O-RING, VACUUM PUMP |
ME201133 |
from US $3.32 |
||
|
03762F
|
03762F
ME201580 O-RING, VACUUM PUMP |
ME201580 |
US $7.40 |
||
|
03763
|
03763
ME202573 PIPE, VACUUM PUMP |
ME202573 |
US $133.20 |
||
|
03777
|
03777
MB058828 CLIP, BRAKE BOOSTER16 |
MB058828 |
from US $1.35 |
||
|
03777C
|
03777C
MB043630 CLIP, CRUISE CONTROL EQUIP8.5-40/55 |
MB043630 |
US $2.96 |
||
| replacement | |||||
|
03777C
|
03777C
MB305867 CLIP, SPEEDOMETER CABLE8.5-50/65 |
MB305867 |
US $4.65 |
||
|
03778
|
03778
MH000999 BOLT, ENG BREATHERFlange,6x12 |
MH000999 |
US $2.66 |
||
|
03778B
|
03778B
MF140238 BOLT, WATER PUMPFlange,8x65 |
MF140238 |
from US $2.30 |
||
|
03778C
|
03778C
MF140237 BOLT, WATER PUMPFlange,8x60 |
MF140237 |
from US $1.99 |
||
|
03778D
|
03778D
MF140022 BOLT, ACCEL CABLE SUPPORTFlange,8x14 |
MF140022 |
US $2.46 |
||
|
03778E
|
03778E
ME201132 BOLT, VACUUM PUMP |
ME201132 |
US $2.96 |
||
|
04987
|
04987
ME200260 JOINT, ENG OIL LINE |
ME200260 |
from US $12.58 |
||
|
04996NN
|
04996NN
MF650102 EYEBOLT, FUEL LINE10x20 |
MF650102 |
from US $9.03 |
||
|
04998NN
|
04998NN
MF660063 GASKET, CYLINDER HEAD PLUGD=10 |
MF660063 |
from US $0.43 |
||
|
11 120
|
Cylinder head
11 120
|
||||
|
11 140
|
Cover,rear plate & oil pan
11 140
|
||||
|
11 320
|
Oil press switch or gauge unit
11 320
|
||||
|
15 210
|
Inlet manifold
15 210
|
||||
|
15 710
|
Emission control
15 710
|
||||
|
15 710
|
Emission control
15 710
|
||||
|
26 140
|
Front axle freewheel clutch
26 140
|
||||
|
26 140
|
Front axle freewheel clutch
26 140
|
||||
|
35 230
|
Power brake booster
35 230
|
||||
