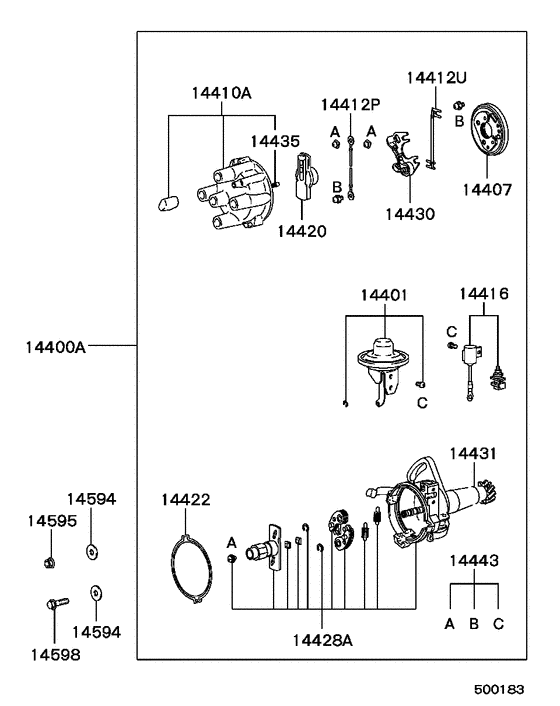

Distributor (ALL) Diagram Mitsubishi PAJERO/MONTERO
- Year
- -
- Sales region
- EUR
- Note
- SEMI-HI-RF WAGON/PART TIME 4WD,5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- SEMI-HI-RF WAGO
- body
- LONG WAGON
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14400A
|
14400A
MD142257
DISTRIBUTOR ASSY
|
MD142257 |
— | ||
|
14401
|
14401
MD618216
ADVANCER,DISTRIBUTOR VACUUM
|
MD618216 |
— | ||
|
14407
|
14407
MD618218
BASE,DISTRIBUTOR BREAKER
|
MD618218 |
— | ||
|
14410A
|
14410A
MD618210
CAP ASSY,DISTRIBUTOR
|
MD618210 |
— | ||
|
14412P
|
14412P
MD618211
CABLE,DISTRIBUTOR LEAD
|
MD618211 |
— | ||
|
14412U
|
14412U
MD618212
CABLE,DISTRIBUTOR LEAD
|
MD618212 |
— | ||
|
14416
|
14416
MD618213 TERMINAL KIT,DISTRIBUTOR |
MD618213 |
US $17.65 |
||
|
14420
|
14420
MD602758
ROTOR, DISTRIBUTOR
|
MD602758 |
— | ||
|
14422
|
14422
MD607653 GASKET, DISTRIBUTOR CAP |
MD607653 |
US $4.79 |
||
|
14428A
|
14428A
MD618215
HOUSING ASSY,DISTRIBUTOR
|
MD618215 |
— | ||
|
14430
|
14430
MD611245 POINT KIT,DISTRIBUTOR CONTACT |
MD611245 |
US $16.36 |
||
|
14431
|
14431
MD602412
O-RING, DISTRIBUTOR
|
MD602412 |
— | ||
|
14435
|
14435
MD602757
PIECE, DISTRIBUTOR CAP CONTACT
|
MD602757 |
— | ||
|
14443
|
14443
MD618214
SCREW SET,DISTRIBUTOR
|
MD618214 |
— | ||
|
14594
|
14594
MD001521 WASHER, TIMING BELT TRAINPlain,8.5 |
MD001521 |
from US $1.21 |
||
|
14595
|
14595
MF434104 NUT, ROCKER COVERFlange,8 |
MF434104 |
from US $0.55 |
||
|
14598
|
14598
MF140228 BOLT, CYLINDER HEADFlange,8x28 |
MF140228 |
from US $0.92 |
