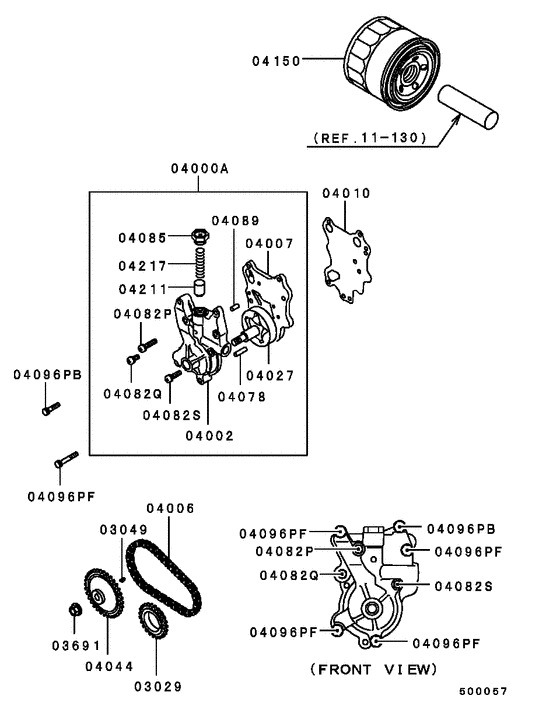

Oil pump & oil filter (ALL) Diagram Mitsubishi PAJERO/MONTERO
- Year
- -
- Sales region
- EUR
- Note
- SEMI-HI-RF WAGON/PART TIME 4WD,5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- SEMI-HI-RF WAGO
- body
- LONG WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
03029
|
03029
MD021180
SPROCKET,CRANKSHAFT BALANCER SHAFT DRIVE
|
MD021180 |
— | ||
|
03049
|
03049
MF476204 KEY (3x10)Woodruff key, 3x10 |
MF476204 |
from US $1.58 |
||
|
03691
|
03691
MD095237 NUT, TIMING BELT TRAINFlange,10 |
MD095237 |
US $4.38 |
||
|
04000A
|
04000A
MD025550 OIL PUMP ASSY,ENG |
MD025550 |
from US $195.62 |
||
|
04002
|
04002
MD025551 BODY,ENG OIL PUMP |
MD025551 |
US $67.34 |
||
|
04006
|
04006
MD025509 CHAIN,ENG OIL PUMP DRIVE |
MD025509 |
from US $29.60 |
||
|
04007
|
04007
MD025552 COVER,ENG OIL PUMP |
MD025552 |
US $39.96 |
||
|
04010
|
04010
MD025558 GASKET,ENG OIL PUMP |
MD025558 |
US $5.62 |
||
|
04010
|
04010
MD191431 GASKET,ENG OIL PUMP |
MD191431 |
from US $5.01 |
||
|
04027
|
04027
MD025553 ROTOR SET,ENG OIL PUMP INR & OTR |
MD025553 |
US $44.40 |
||
|
04044
|
04044
MD021181 SPROCKET,ENG OIL PUMP |
MD021181 |
from US $64.38 |
||
|
04078
|
04078
MF472403 PIN, CYLINDER BLOCKDowel,6x14 |
MF472403 |
from US $2.40 |
||
|
04082P
|
04082P
MF350079
SCREW, ENG OIL PUMP INR
|
MF350079 |
— | ||
|
04082Q
|
04082Q
MF350073 SCREW, ENG OIL PUMP INR |
MF350073 |
US $1.78 |
||
|
04082S
|
04082S
MF350077 SCREW, ENG OIL PUMP INR |
MF350077 |
from US $2.69 |
||
|
04085
|
04085
MD021564 PLUG, ENG OIL PUMPScrew,d=18 |
MD021564 |
US $4.29 |
||
|
04089
|
04089
MD023415 PIN, ENG FR CASEDowel,6x17.5 |
MD023415 |
US $2.37 |
||
|
04096PB
|
04096PB
MF241229 BOLT, CYLINDER BLOCKWasher assembled,6x25 |
MF241229 |
from US $2.01 |
||
|
04096PF
|
04096PF
MS241056 BOLT,ENG OIL PUMP |
MS241056 |
US $2.07 |
||
|
04150
|
04150
MD135737
OIL FILTER
|
MD135737 |
— | ||
| replacement | |||||
|
04150
|
04150
MD360935 OIL FILTERCartridge type |
MD360935 |
from US $10.57 |
||
|
04150
|
04150
MD136466
OIL FILTER
|
MD136466 |
— | ||
| replacement | |||||
|
04150
|
04150
1230A153 OIL FILTER |
1230A153 |
from US $11.10 |
||
|
04150
|
04150
MD322508
OIL FILTER
|
MD322508 |
— | ||
|
04150
|
04150
MD325714
OIL FILTER
|
MD325714 |
— | ||
| replacement | |||||
|
04150
|
04150
1230A153 OIL FILTER |
1230A153 |
from US $11.10 |
||
|
04150
|
04150
MD332687 OIL FILTERCartridge type |
MD332687 |
US $20.72 |
||
|
04150
|
04150
MD348631 OIL FILTERCartridge type |
MD348631 |
US $11.25 |
||
| replacement | |||||
|
04150
|
04150
1230A151 OIL FILTER |
1230A151 |
from US $10.18 |
||
|
04211
|
04211
MD021563 PLUNGER, ENG OIL RELIEF |
MD021563 |
from US $2.63 |
||
|
04217
|
04217
MD017405 SPRING,ENG OIL RELIEF PLUNGER |
MD017405 |
US $1.33 |
||
|
11 130
|
Cylinder block
11 130
|
||||
