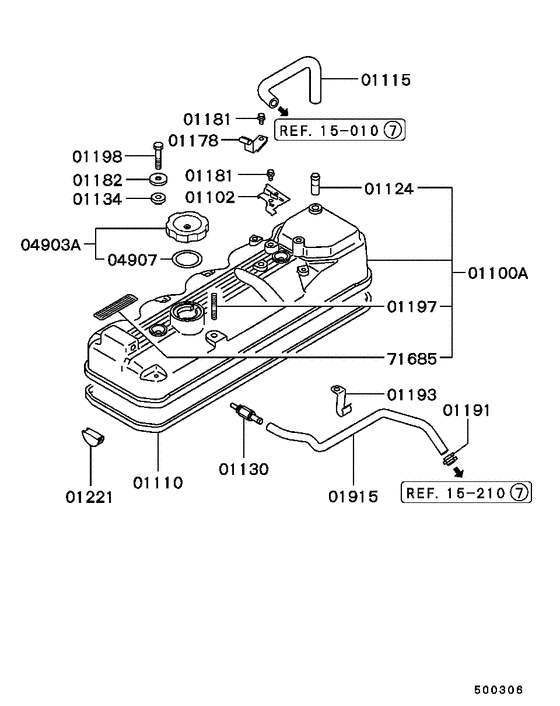

Rocker cover (ALL) Diagram Mitsubishi PAJERO/MONTERO
- Year
- -
- Sales region
- EUR
- Note
- SEMI-HI-RF WAGON/PART TIME 4WD,5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- SEMI-HI-RF WAGO
- body
- LONG WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01100A
|
01100A
MD061238
COVER ASSY,ROCKER
|
MD061238 |
— | ||
|
01100A
|
01100A
MD164658
COVER ASSY,ROCKER
|
MD164658 |
— | ||
|
01100A
|
01100A
MD192174
COVER ASSY,ROCKER
|
MD192174 |
— | ||
|
01102
|
01102
MD023989
BRACKET,ROCKER COVER ACCEL CABLE
|
MD023989 |
— | ||
|
01110
|
01110
MD024682 GASKET, ROCKER COVER |
MD024682 |
from US $11.95 |
||
|
01115
|
01115
MD101099
HOSE,ROCKER COVER BREATHER
|
MD101099 |
— | ||
|
01124
|
01124
MD026618 JOINT, ROCKER COVER BREATHER HOSE |
MD026618 |
US $6.66 |
||
|
01130
|
01130
MD024719 VALVE, PCV |
MD024719 |
from US $36.25 |
||
|
01134
|
01134
MD000523 SEAL, ROCKER COVER BOLT |
MD000523 |
from US $1.01 |
||
|
01178
|
01178
MD023048
CLAMP,ACCEL CABLE SUPPORT
|
MD023048 |
— | ||
|
01181
|
01181
MF140722 BOLT, ACCEL CABLE SUPPORTFlange,6x10 |
MF140722 |
US $3.28 |
||
|
01182
|
01182
MD126097
WASHER, ROCKER COVER
|
MD126097 |
— | ||
| replacement | |||||
|
01182
|
01182
MD085089 WASHER, ROCKER COVER8.5 |
MD085089 |
from US $1.42 |
||
|
01191
|
01191
MS660240 CLIP, ROCKER COVERD=13.1 |
MS660240 |
from US $0.86 |
||
|
01193
|
01193
MD024869
CLAMP, ROCKER COVER
|
MD024869 |
— | ||
| replacement | |||||
|
01193
|
01193
MD125717 CLAMP, ROCKER COVER |
MD125717 |
US $4.24 |
||
|
01197
|
01197
MF402233 STUD, ROCKER COVER8x18 |
MF402233 |
US $2.66 |
||
|
01198
|
01198
MF105463 BOLT, ROCKER COVER8x40 |
MF105463 |
US $2.87 |
||
|
01221
|
01221
MD020718 SEAL, CYLINDER HEAD CAMSHAFT ENDRubber |
MD020718 |
from US $3.43 |
||
|
01915
|
01915
MD026609 HOSE, ROCKER COVER PCV |
MD026609 |
US $11.35 |
||
|
04903A
|
04903A
MD132260
CAP ASSY, ENG OIL FILLER
|
MD132260 |
— | ||
| replacement | |||||
|
04903A
|
04903A
1250A015 CAP ASSY, ENG OIL FILLER |
1250A015 |
from US $12.13 |
||
|
04907
|
04907
MD103148
GASKET, ENG OIL FILLER CAP
|
MD103148 |
— | ||
| replacement | |||||
|
04907
|
04907
MD311638 GASKET, ENG OIL FILLER CAP |
MD311638 |
from US $1.50 |
||
|
71685
|
71685
MD008817
LABEL,ENG MAINTENANCE CAUTION
|
MD008817 |
— | ||
|
