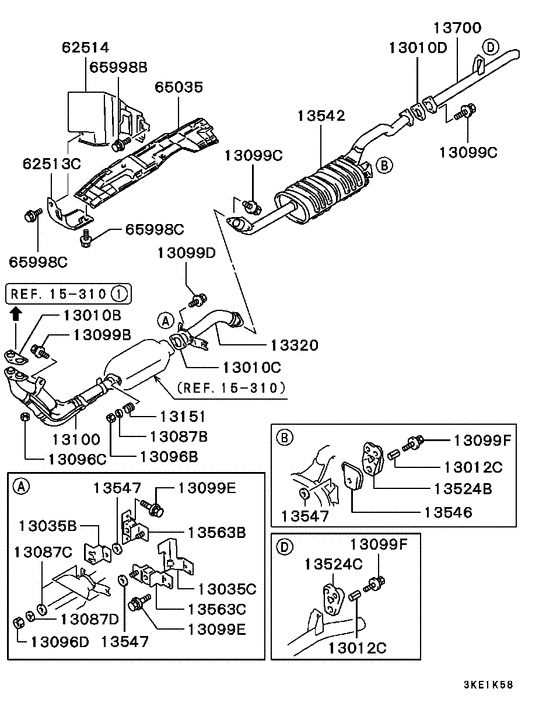

Exhaust pipe & muffler (ALL) Diagram Mitsubishi PAJERO/MONTERO
- Year
- -
- Sales region
- EUR
- Note
- GLX(PART TIME),5FM/T LHD
- transmission
- 5FM/T
- grade
- GLX
- body
- LONG WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13010B
|
13010B
MB687020 GASKET, EXHAUST PIPE |
MB687020 |
from US $8.07 |
||
|
13010C
|
13010C
MB687002 GASKET, EXHAUST PIPE |
MB687002 |
from US $5.73 |
||
|
13010D
|
13010D
MB687012 GASKET, EXHAUST PIPE |
MB687012 |
from US $6.20 |
||
|
13012C
|
13012C
MB549178 COLLAR, EXHAUST PIPE |
MB549178 |
US $3.01 |
||
|
13035B
|
13035B
MB868787 PROTECTOR, EXHAUST PIPE SUSPENDER |
MB868787 |
US $13.62 |
||
|
13035C
|
13035C
MB687858 PROTECTOR, EXHAUST PIPE SUSPENDER |
MB687858 |
from US $13.62 |
||
|
13087B
|
13087B
MB577050 WASHER, EXHAUST PIPE12.5 |
MB577050 |
from US $5.18 |
||
|
13087C
|
13087C
MF450005 WASHER, FLYWHEEL HOUSINGPlain,8 |
MF450005 |
from US $1.01 |
||
|
13087D
|
13087D
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
13096B
|
13096B
MB059359 NUT, CATALYTIC CONVERTERSelf locking,6t,12 |
MB059359 |
from US $1.66 |
||
|
13096C
|
13096C
MB059333 NUT, EXHAUST PIPESelf locking,10 |
MB059333 |
from US $1.74 |
||
|
13096D
|
13096D
MF430005 NUT, ROCKER COVER8 |
MF430005 |
from US $1.01 |
||
|
13099B
|
13099B
MF244882 BOLT, ENG RR MOUNTINGWasher assembled,10x30 |
MF244882 |
from US $1.05 |
||
|
13099C
|
13099C
MF241284 BOLT, CYLINDER BLOCKWasher assembled,10x30 |
MF241284 |
from US $1.31 |
||
|
13099D
|
13099D
MF241309 BOLT, ENG MOUNTINGWasher assembled,12x30 |
MF241309 |
from US $1.54 |
||
|
13099E
|
13099E
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
13099F
|
13099F
MF243661 BOLT, EXHAUST PIPEWasher assembled,8x50 |
MF243661 |
from US $1.50 |
||
|
13100
|
13100
MB810725
PIPE,EXHAUST,FR
|
MB810725 |
— | ||
|
13151
|
13151
MB179443 SPRING, CATALYTIC CONVERTER CUSHION |
MB179443 |
US $11.63 |
||
|
13320
|
13320
MB651684
PIPE, EXHAUST, CTR
|
MB651684 |
— | ||
| replacement | |||||
|
13320
|
13320
MB651685 PIPE, EXHAUST, CTR |
MB651685 |
US $324.48 |
||
|
13524B
|
13524B
MB548707 HANGER, EXHAUST MUFFLER |
MB548707 |
from US $8.07 |
||
|
13524C
|
13524C
MB431175
HANGER, EXHAUST MUFFLER
|
MB431175 |
— | ||
| replacement | |||||
|
13524C
|
13524C
MB548707 HANGER, EXHAUST MUFFLER |
MB548707 |
from US $8.07 |
||
|
13542
|
13542
MB810321
MUFFLER,EXHAUST MAIN
|
MB810321 |
— | ||
|
13546
|
13546
MB431942 PROTECTOR, EXHAUST MUFFLER HANGER |
MB431942 |
US $4.59 |
||
|
13547
|
13547
MB651931 SEAT, EXHAUST MUFFLER HANGER |
MB651931 |
from US $2.52 |
||
|
13563B
|
13563B
MB868783 SUSPENDER, EXHAUST MUFFLER |
MB868783 |
from US $36.72 |
||
|
13563C
|
13563C
MB252113 SUSPENDER, EXHAUST MUFFLER |
MB252113 |
from US $20.52 |
||
|
13700
|
13700
MB651700
PIPE, EXHAUST TAIL
|
MB651700 |
— | ||
| replacement | |||||
|
13700
|
13700
MB651701 PIPE, EXHAUST TAIL |
MB651701 |
US $123.12 |
||
|
62513C
|
62513C
MB274532 PROTECTOR, DASH PANEL HEAT, LWR |
MB274532 |
US $53.28 |
||
|
62514
|
62514
MB675080 PROTECTOR, DASH PANEL HEAT, UPR |
MB675080 |
US $72.52 |
||
|
65035
|
65035
MB675836 PROTECTOR, FR FLOOR HEAT |
MB675836 |
US $54.72 |
||
|
65998B
|
65998B
MF243648 BOLT, ENG SUPPORT RODWasher assembled,8x14 |
MF243648 |
from US $0.88 |
||
|
65998C
|
65998C
MF243622 BOLT, ROCKER COVERWasher assembled,6x12 |
MF243622 |
from US $1.33 |
||
|
65998C
|
65998C
MS100252 BOLT, FLOOR HEAT PROTECTORFlange,6x10 |
MS100252 |
US $3.55 |
||
|
15 310
|
Exhaust manifold
15 310
|
||||
