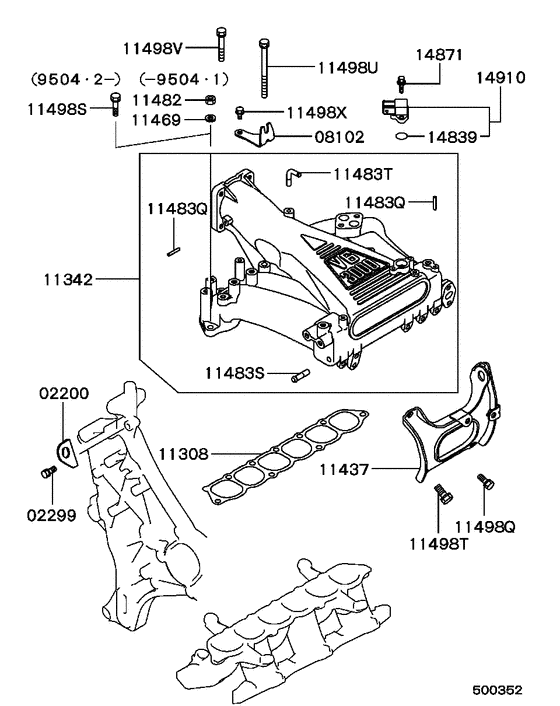

Inlet manifold (-9805.3 24-VALVE (SURGE TANK)) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1991 - 1994
- Sales region
- MMNA
- Note
- LS,4FA/T FED
- transmission
- 4FA/T
- grade
- LS
- body
- LONG WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02200
|
02200
MD002775 ENGINE HANGER |
MD002775 |
US $5.61 |
||
|
02299
|
02299
MF241251 BOLT, CYLINDER HEADWasher assembled,8x16 |
MF241251 |
from US $0.98 |
||
|
11308
|
11308
MD135158 GASKET, ENG AIR INTAKE SURGE TANK |
MD135158 |
from US $6.01 |
||
|
11308
|
11308
MD199282 GASKET, ENG AIR INTAKE SURGE TANK |
MD199282 |
from US $6.45 |
||
|
11342
|
11342
MD148227 TANK, ENG AIR INTAKE SURGE |
MD148227 |
US $531.44 |
||
|
11437
|
11437
MD308175
STAY,INLET MANIFOLD
|
MD308175 |
— | ||
|
11437
|
11437
MD338301 STAY,INLET MANIFOLD |
MD338301 |
US $42.92 |
||
|
11469
|
11469
MF450435 WASHER, INLET MANIFOLDSpring,8 |
MF450435 |
US $1.48 |
||
|
11469
|
11469
MF450495 WASHER, CYLINDER HEADSpring,8 |
MF450495 |
US $4.51 |
||
|
11482
|
11482
MF430035 NUT, INLET MANIFOLD8 |
MF430035 |
US $2.37 |
||
|
11482
|
11482
MF430151 NUT, RR AXLEJam,8 |
MF430151 |
US $2.05 |
||
|
11482
|
11482
MF430181 NUT, CYLINDER HEAD8 |
MF430181 |
US $2.74 |
||
|
11483Q
|
11483Q
MD108999 NIPPLE, INLET MANIFOLD4 |
MD108999 |
US $4.59 |
||
|
11483S
|
11483S
MD088093 JOINT, ROCKER COVER BREATHER HOSE |
MD088093 |
US $4.59 |
||
|
11483T
|
11483T
MD302606 NIPPLE, INLET MANIFOLD6 |
MD302606 |
US $4.88 |
||
|
11498Q
|
11498Q
MF241252 BOLT, CARBWasher assembled,8x18 |
MF241252 |
from US $0.96 |
||
|
11498Q
|
11498Q
MF241852 BOLT, INLET MANIFOLDWasher assembled,8x18 |
MF241852 |
US $3.28 |
||
|
11498S
|
11498S
MF241257 BOLT, CRANKCASEWasher assembled,8x30 |
MF241257 |
from US $1.42 |
||
|
11498S
|
11498S
MF241857 BOLT, THROTTLE BODYWasher assembled,8x30 |
MF241857 |
US $2.37 |
||
|
11498T
|
11498T
MF241252 BOLT, CARBWasher assembled,8x18 |
MF241252 |
from US $0.96 |
||
|
11498T
|
11498T
MF241280 BOLT, RR SEATWasher assembled,10x20 |
MF241280 |
from US $0.90 |
||
|
11498T
|
11498T
MF241880 BOLT, ENG MOUNTINGWasher assembled,10x20 |
MF241880 |
US $2.66 |
||
|
11498U
|
11498U
MF241271 BOLT, CARBWasher assembled,8x90 |
MF241271 |
US $3.15 |
||
|
11498U
|
11498U
MF241272 BOLT, CARBWasher assembled,8x100 |
MF241272 |
US $4.38 |
||
|
11498U
|
11498U
MF241872 BOLT, INLET MANIFOLDWasher assembled,8x100 |
MF241872 |
US $3.70 |
||
|
11498V
|
11498V
MF241264 BOLT, ENG FR CASEWasher assembled,8x55 |
MF241264 |
from US $1.54 |
||
|
11498V
|
11498V
MF241863 BOLT, INLET MANIFOLDWasher assembled,8x50 |
MF241863 |
US $3.70 |
||
|
11498X
|
11498X
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.68 |
||
|
11498X
|
11498X
MF140723 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140723 |
US $3.56 |
||
|
14839
|
14839
MD632057 O-RING, ENG CONTROL PRESSURE SENSOR |
MD632057 |
from US $2.22 |
||
|
14871
|
14871
MF244805 BOLT, ENG CONTROL PRESSURE SENSORWasher assembled,5x18 |
MF244805 |
from US $1.33 |
||
|
14910
|
14910
MD305600 SENSOR, INLET MANIFOLD DIFF PRESSURE |
MD305600 |
from US $292.03 |
