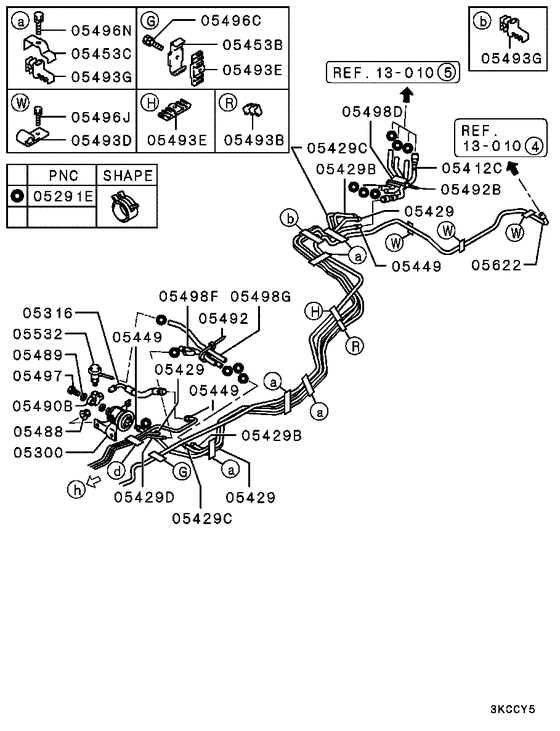

Fuel line & vapor gas control (9704.1- REAR) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1993 - 1997
- Sales region
- Japan
- Note
- SUPER EXCEED-Z(WIDE/SS4),4FA/T
- transmission
- 4FA/T
- grade
- SUPER EXCEED-Z
- body
- LONG WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05291E
|
05291E
MB329606 CLIP, FUEL RETURN LINE |
MB329606 |
US $4.51 |
||
|
05300
|
05300
MB868452 FUEL FILTER |
MB868452 |
from US $75.54 |
||
|
05300
|
05300
MR312413 FUEL FILTER |
MR312413 |
US $134.75 |
||
|
05316
|
05316
MB924541 HOSE, FUEL FILTER HIGH PRESSURE |
MB924541 |
US $58.46 |
||
|
05316
|
05316
MR160408 HOSE, FUEL FILTER HIGH PRESSURE |
MR160408 |
US $94.39 |
||
|
05316
|
05316
MR312409 HOSE, FUEL FILTER HIGH PRESSURE |
MR312409 |
US $91.76 |
||
|
05412C
|
05412C
MB433988
HOSE, FUEL FILTER HIGH PRESSURE
|
MB433988 |
— | ||
| replacement | |||||
|
05412C
|
05412C
MR161794 HOSE, FUEL HIGH PRESSURE |
MR161794 |
US $84.82 |
||
|
05412C
|
05412C
MR161794 HOSE, FUEL HIGH PRESSURE |
MR161794 |
US $84.82 |
||
|
05412C
|
05412C
MR323438 HOSE, FUEL HIGH PRESSURE |
MR323438 |
US $44.40 |
||
|
05429
|
05429
MB924511 PIPE, FUEL RETURN |
MB924511 |
US $56.24 |
||
|
05429
|
05429
MB924521
PIPE, FUEL RETURN
|
MB924521 |
— | ||
|
05429
|
05429
MB924547 PIPE, FUEL RETURN |
MB924547 |
US $12.43 |
||
|
05429
|
05429
MR312588 PIPE, FUEL RETURN |
MR312588 |
US $10.80 |
||
|
05429
|
05429
MR373574 PIPE, FUEL RETURN |
MR373574 |
US $68.08 |
||
|
05429
|
05429
MR373617 PIPE, FUEL RETURN |
MR373617 |
US $68.08 |
||
|
05429B
|
05429B
MR373619 PIPE, FUEL RETURN |
MR373619 |
US $68.08 |
||
|
05429C
|
05429C
MR373618 PIPE, FUEL RETURN |
MR373618 |
US $68.08 |
||
|
05429D
|
05429D
MR373575 PIPE, FUEL RETURN |
MR373575 |
US $68.08 |
||
|
05449
|
05449
MB924510 PIPE, FUEL LINE |
MB924510 |
US $63.61 |
||
|
05449
|
05449
MB924520
PIPE, FUEL LINE
|
MB924520 |
— | ||
|
05449
|
05449
MR373573 PIPE, FUEL LINE |
MR373573 |
US $72.52 |
||
|
05449
|
05449
MR373616 PIPE, FUEL LINE |
MR373616 |
US $72.52 |
||
|
05453B
|
05453B
MB554176 SUPPORT, FUEL LINE |
MB554176 |
US $10.40 |
||
|
05453C
|
05453C
MB129884 SUPPORT, FUEL LINE |
MB129884 |
US $3.69 |
||
|
05453C
|
05453C
MR373587 SUPPORT, FUEL LINE |
MR373587 |
US $3.85 |
||
|
05488
|
05488
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
05489
|
05489
MB906711 GASKET, FUEL LINE |
MB906711 |
US $3.69 |
||
|
05489
|
05489
MF660064 GASKET, CYLINDER BLOCKD=12 |
MF660064 |
from US $0.57 |
||
|
05490B
|
05490B
MR188223 CONNECTOR, FUEL LINE |
MR188223 |
US $21.20 |
||
|
05492
|
05492
MB249339 BAND, ENG BREATHERL=169.5 |
MB249339 |
from US $1.50 |
||
|
05492B
|
05492B
MB249340 BAND, FUEL TANK PROTECTORL=219.5 |
MB249340 |
US $2.74 |
||
|
05493B
|
05493B
MB181581 CLIP, FUEL LINE8,6.1 |
MB181581 |
US $2.87 |
||
|
05493D
|
05493D
MF477022 CLIP, FUEL FILLER LID LOCKINGD=6 |
MF477022 |
US $1.64 |
||
|
05493E
|
05493E
MB316724 CLIP, SPEEDOMETER CABLE6.2x4.5x4.5x7.8x6.2 |
MB316724 |
US $3.15 |
||
|
05493G
|
05493G
MB129930 CLIP, FUEL LINE6-8-4.5-6 |
MB129930 |
US $3.69 |
||
|
05493G
|
05493G
MR373586 CLIP, FUEL LINE |
MR373586 |
US $3.85 |
||
|
05496C
|
05496C
MS240084 BOLT, FUEL LINEWasher assembled,6x30 |
MS240084 |
US $2.19 |
||
|
05496J
|
05496J
MF240024 BOLT, FUEL TANKWasher assembled,6x14 |
MF240024 |
US $2.60 |
||
|
05496N
|
05496N
MS240099 BOLT, LUGGAGE RACK |
MS240099 |
US $2.81 |
||
|
05497
|
05497
MS650013 EYEBOLT, FUEL LINE12x23 |
MS650013 |
from US $3.28 |
||
|
05498D
|
05498D
MR373569 HOSE, FUEL RETURN LINE |
MR373569 |
US $25.16 |
||
|
05498D
|
05498D
MS605996
HOSE, FUEL TANK
|
MS605996 |
— | ||
| replacement | |||||
|
05498D
|
05498D
MU600698 HOSE, FUEL TANK6x2000 |
MU600698 |
US $97.13 |
||
|
05498D
|
05498D
MU600698 HOSE, FUEL TANK6x2000 |
MU600698 |
US $97.13 |
||
|
05498F
|
05498F
MR373565 HOSE, FUEL RETURN LINE |
MR373565 |
US $17.02 |
||
|
05498G
|
05498G
MR373568 HOSE, FUEL RETURN LINE |
MR373568 |
US $9.92 |
||
|
05532
|
05532
MR312411
REGULATOR, FUEL PUMP PRESSURE
|
MR312411 |
— | ||
|
05622
|
05622
MB924522 PIPE, FUEL VAPOR |
MB924522 |
from US $34.57 |
||
|
05622
|
05622
MR373620 PIPE, FUEL VAPOR |
MR373620 |
US $60.68 |
||
|
