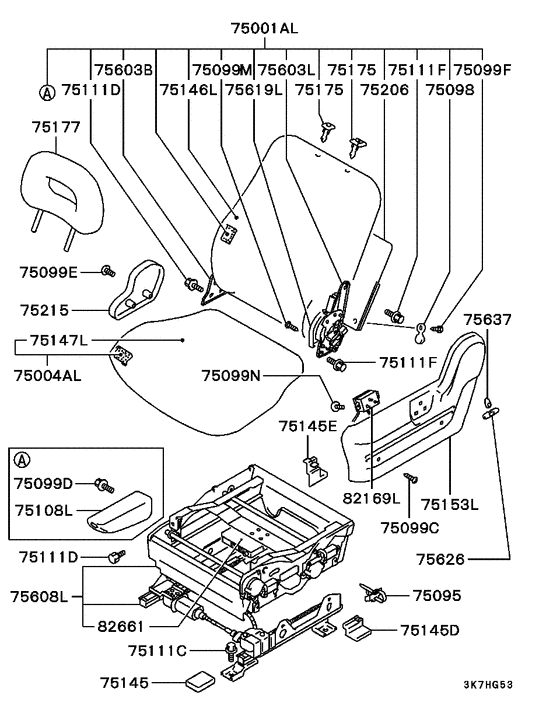

Front seat (LH..POWER) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1993 - 1996
- Sales region
- PUERTO RICO&GUAM
- Note
- SR(WIDE),4FA/T FED
- transmission
- 4FA/T
- grade
- SR
- body
- LONG WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AL
|
75001AL
MB792968
BACK ASSY,FR SEAT,LH
|
MB792968 |
— | ||
|
75001AL
|
75001AL
MB792969
BACK ASSY,FR SEAT,LH
|
MB792969 |
— | ||
|
75001AL
|
75001AL
MR723792
BACK ASSY,FR SEAT,LH
|
MR723792 |
— | ||
|
75001AL
|
75001AL
MR749708
BACK ASSY,FR SEAT,LH
|
MR749708 |
— | ||
|
75001AL
|
75001AL
MR749751
BACK ASSY,FR SEAT,LH
|
MR749751 |
— | ||
|
75001AL
|
75001AL
MR782316
BACK ASSY,FR SEAT,LH
|
MR782316 |
— | ||
|
75001AL
|
75001AL
MR782317
BACK ASSY,FR SEAT,LH
|
MR782317 |
— | ||
|
75004AL
|
75004AL
MB798485
CUSHION ASSY,FR SEAT,LH
|
MB798485 |
— | ||
|
75004AL
|
75004AL
MB798486
CUSHION ASSY,FR SEAT,LH
|
MB798486 |
— | ||
|
75004AL
|
75004AL
MR755567
CUSHION ASSY,FR SEAT,LH
|
MR755567 |
— | ||
|
75004AL
|
75004AL
MR755568
CUSHION ASSY,FR SEAT,LH
|
MR755568 |
— | ||
|
75004AL
|
75004AL
MR755637
CUSHION ASSY,FR SEAT,LH
|
MR755637 |
— | ||
|
75004AL
|
75004AL
MR797317
CUSHION ASSY,FR SEAT,LH
|
MR797317 |
— | ||
|
75004AL
|
75004AL
MR797318
CUSHION ASSY,FR SEAT,LH
|
MR797318 |
— | ||
|
75095
|
75095
MB601486 BAND, FR SEAT100 |
MB601486 |
US $2.60 |
||
|
75098
|
75098
MB774538 CAP, FR SEAT |
MB774538 |
US $5.20 |
||
|
75098
|
75098
MB828010 CAP, FR SEAT |
MB828010 |
US $1.92 |
||
|
75098
|
75098
MR746315 CAP, FR SEAT |
MR746315 |
US $3.11 |
||
|
75099C
|
75099C
MF455390 SCREW, FUEL LINETapping,5x10 |
MF455390 |
US $2.60 |
||
|
75099D
|
75099D
MB873353 SCREW, FR SEATWasher assembled,6x12 |
MB873353 |
US $3.40 |
||
|
75099E
|
75099E
MB872710 SCREW, FR SEATTapping,4x6 |
MB872710 |
US $3.11 |
||
|
75099E
|
75099E
MF456575 SCREW, STEERING COLUMN COVERTapping,4x8 |
MF456575 |
US $2.19 |
||
|
75099F
|
75099F
MF453916 SCREW, FR DOOR TRIMTapping,4x20 |
MF453916 |
US $3.42 |
||
|
75099M
|
75099M
MF456469 SCREW, EMERGENCY FLARETapping,5x8 |
MF456469 |
US $2.74 |
||
|
75099N
|
75099N
MF200026 SCREW, GENERATOR SETTINGMachine,4x10 |
MF200026 |
US $2.07 |
||
|
75108L
|
75108L
MB792907 ARMREST, FR SEAT, LH |
MB792907 |
US $471.74 |
||
|
75108L
|
75108L
MB792909 ARMREST, FR SEAT, LH |
MB792909 |
US $471.74 |
||
|
75108L
|
75108L
MR748820 ARMREST, FR SEAT, LH |
MR748820 |
US $499.41 |
||
|
75108L
|
75108L
MR782526 ARMREST, FR SEAT, LH |
MR782526 |
US $499.41 |
||
|
75108L
|
75108L
MR782527 ARMREST, FR SEAT, LH |
MR782527 |
US $499.41 |
||
|
75111C
|
75111C
MU240143 BOLT, FR SEATWasher assembled,10x30 |
MU240143 |
US $4.79 |
||
|
75111D
|
75111D
MF241253 BOLT, CRANKCASEWasher assembled,8x20 |
MF241253 |
from US $0.82 |
||
|
75111F
|
75111F
MF241280 BOLT, RR SEATWasher assembled,10x20 |
MF241280 |
from US $0.98 |
||
|
75145
|
75145
MB774354 COVER, FR SEAT ANCHOR |
MB774354 |
US $3.42 |
||
|
75145
|
75145
MB774355 COVER, FR SEAT ANCHOR |
MB774355 |
US $2.07 |
||
|
75145
|
75145
MR728254 COVER, FR SEAT ANCHOR |
MR728254 |
US $5.48 |
||
|
75145D
|
75145D
MB774357 COVER, FR SEAT ANCHOR |
MB774357 |
US $4.51 |
||
|
75145D
|
75145D
MB774358 COVER, FR SEAT ANCHOR |
MB774358 |
US $3.42 |
||
|
75145D
|
75145D
MR748779 COVER, FR SEAT ANCHOR |
MR748779 |
US $2.07 |
||
|
75145E
|
75145E
MB774363 COVER, FR SEAT ANCHOR |
MB774363 |
US $4.65 |
||
|
75145E
|
75145E
MB774364 COVER, FR SEAT ANCHOR |
MB774364 |
US $3.56 |
||
|
75145E
|
75145E
MR748781 COVER, FR SEAT ANCHOR |
MR748781 |
US $2.07 |
||
|
75146L
|
75146L
MB966653
COVER,FR SEAT BACK,LH
|
MB966653 |
— | ||
|
75146L
|
75146L
MB966654
COVER,FR SEAT BACK,LH
|
MB966654 |
— | ||
|
75146L
|
75146L
MR728914
COVER,FR SEAT BACK,LH
|
MR728914 |
— | ||
|
75146L
|
75146L
MR749718
COVER,FR SEAT BACK,LH
|
MR749718 |
— | ||
|
75146L
|
75146L
MR749755
COVER,FR SEAT BACK,LH
|
MR749755 |
— | ||
|
75146L
|
75146L
MR782893
COVER,FR SEAT BACK,LH
|
MR782893 |
— | ||
|
75146L
|
75146L
MR782894
COVER,FR SEAT BACK,LH
|
MR782894 |
— | ||
|
75147L
|
75147L
MB966629
COVER,FR SEAT CUSHION,LH
|
MB966629 |
— | ||
|
75147L
|
75147L
MB966630
COVER,FR SEAT CUSHION,LH
|
MB966630 |
— | ||
|
75147L
|
75147L
MR755569
COVER,FR SEAT CUSHION,LH
|
MR755569 |
— | ||
|
75147L
|
75147L
MR755570
COVER,FR SEAT CUSHION,LH
|
MR755570 |
— | ||
|
75147L
|
75147L
MR755638
CUSHION ASSY,FR SEAT,LH
|
MR755638 |
— | ||
|
75147L
|
75147L
MR797468
COVER,FR SEAT CUSHION,LH
|
MR797468 |
— | ||
|
75147L
|
75147L
MR797469
COVER,FR SEAT CUSHION,LH
|
MR797469 |
— | ||
|
75153L
|
75153L
MB792674
COVER, FR SEAT SIDE SHIELD, LH
|
MB792674 |
— | ||
|
75153L
|
75153L
MB792675 COVER, FR SEAT SIDE SHIELD, LH |
MB792675 |
US $45.14 |
||
|
75153L
|
75153L
MR723826
COVER,FR SEAT SIDE SHIELD,LH
|
MR723826 |
— | ||
|
75153L
|
75153L
MR740305
COVER,FR SEAT SIDE SHIELD,LH
|
MR740305 |
— | ||
|
75153L
|
75153L
MR740306
COVER,FR SEAT SIDE SHIELD,LH
|
MR740306 |
— | ||
|
75153L
|
75153L
MR749752
COVER,FR SEAT SIDE SHIELD,LH
|
MR749752 |
— | ||
|
75153L
|
75153L
MR749767
COVER,FR SEAT SIDE SHIELD,LH
|
MR749767 |
— | ||
|
75175
|
75175
MB789848 GUIDE, 2ND SEAT HEADRESTW/lock |
MB789848 |
US $8.34 |
||
|
75175
|
75175
MB789849 GUIDE, 2ND SEAT HEADRESTW/lock |
MB789849 |
US $8.73 |
||
|
75175
|
75175
MB789851 GUIDE, 2ND SEAT HEADRESTW/o lock |
MB789851 |
US $5.77 |
||
|
75175
|
75175
MB789852 GUIDE, 2ND SEAT HEADRESTW/o lock |
MB789852 |
US $5.77 |
||
|
75175
|
75175
MR728255 GUIDE, FR SEAT HEADRESTW/lock |
MR728255 |
US $9.62 |
||
|
75175
|
75175
MR728256 GUIDE, FR SEAT HEADRESTW/o lock |
MR728256 |
US $9.62 |
||
|
75177
|
75177
MB794643 HEADREST, FR SEAT |
MB794643 |
US $911.46 |
||
|
75177
|
75177
MB794644 HEADREST, FR SEAT |
MB794644 |
US $911.46 |
||
|
75177
|
75177
MR602492
HEADREST,FR SEAT
|
MR602492 |
— | ||
|
75177
|
75177
MR602493
HEADREST,FR SEAT
|
MR602493 |
— | ||
|
75177
|
75177
MR748898 HEADREST, FR SEAT |
MR748898 |
US $525.62 |
||
|
75206
|
75206
MB792695 PANEL, FR SEAT BACK |
MB792695 |
US $110.26 |
||
|
75206
|
75206
MB792696 PANEL, FR SEAT BACK |
MB792696 |
US $110.26 |
||
|
75206
|
75206
MR748809 PANEL, FR SEAT BACK |
MR748809 |
US $93.98 |
||
|
75206
|
75206
MR797304 PANEL, FR SEAT BACK |
MR797304 |
US $93.98 |
||
|
75206
|
75206
MR797305 PANEL, FR SEAT BACK |
MR797305 |
US $93.98 |
||
|
75215
|
75215
MB792988
PROTECTOR,FR SEAT FREE HINGE
|
MB792988 |
— | ||
|
75215
|
75215
MB792989
PROTECTOR,FR SEAT FREE HINGE
|
MB792989 |
— | ||
|
75215
|
75215
MB792990
PROTECTOR,FR SEAT FREE HINGE
|
MB792990 |
— | ||
|
75215
|
75215
MB792991
PROTECTOR,FR SEAT FREE HINGE
|
MB792991 |
— | ||
|
75215
|
75215
MR749710
PROTECTOR,FR SEAT FREE HINGE
|
MR749710 |
— | ||
|
75215
|
75215
MR749711
PROTECTOR,FR SEAT FREE HINGE
|
MR749711 |
— | ||
|
75603B
|
75603B
MB872831
ADJUSTER,FR SEAT RECLINING
|
MB872831 |
— | ||
|
75603B
|
75603B
MB872832
ADJUSTER,FR SEAT RECLINING
|
MB872832 |
— | ||
|
75603L
|
75603L
MR139287
ADJUSTER,FR SEAT RECLINING,LH
|
MR139287 |
— | ||
|
75608L
|
75608L
MR139257
ADJUSTER,FR POWER SEAT,LH
|
MR139257 |
— | ||
|
75619L
|
75619L
MB792687 COVER, FR SEAT RECLINING ADJUSTER, LH |
MB792687 |
US $8.62 |
||
|
75619L
|
75619L
MB792688 COVER, FR SEAT RECLINING ADJUSTER, LH |
MB792688 |
US $9.18 |
||
|
75619L
|
75619L
MR723832
COVER,FR SEAT RECLINING ADJUSTER,LWR LH
|
MR723832 |
— | ||
|
75619L
|
75619L
MR748807 COVER, FR SEAT RECLINING ADJUSTER, LWR LH |
MR748807 |
US $10.66 |
||
|
75619L
|
75619L
MR749769
COVER,FR SEAT RECLINING ADJUSTER,LWR LH
|
MR749769 |
— | ||
|
75626
|
75626
MB969233 KNOB, FR SEAT SLIDE ADJUSTER |
MB969233 |
US $8.76 |
||
|
75626
|
75626
MR746768 KNOB, FR SEAT SLIDE ADJUSTER |
MR746768 |
US $7.99 |
||
|
75637
|
75637
MB969236 KNOB, FR SEAT RECLINING ADJUSTER |
MB969236 |
US $7.25 |
||
|
75637
|
75637
MR746769 KNOB, FR SEAT RECLINING ADJUSTER |
MR746769 |
US $6.66 |
||
|
82169L
|
82169L
MR139265
SWITCH,FR POWER SEAT,LH
|
MR139265 |
— | ||
|
82661
|
82661
MR177232 CONTROL UNIT, FR POWER SEAT |
MR177232 |
US $875.06 |
