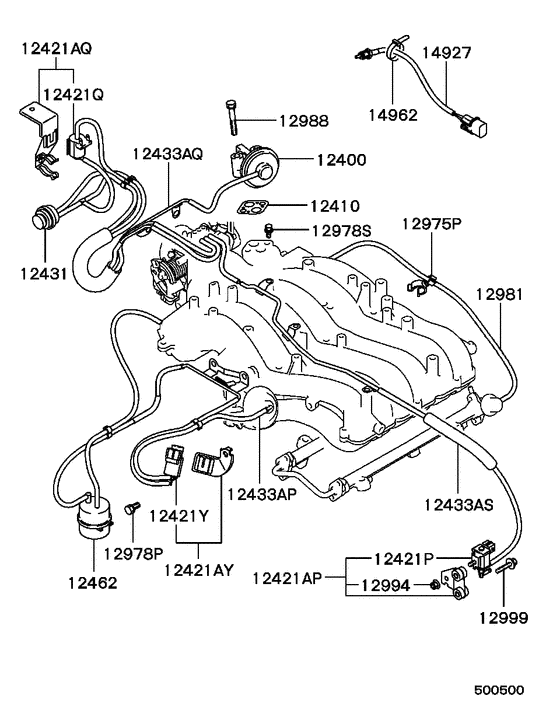

Emission control (-9604.3) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1996 - 1998
- Sales region
- PUERTO RICO&GUAM
- Note
- SR(WIDE),4FA/T FED
- transmission
- 4FA/T
- grade
- SR
- body
- LONG WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12400
|
12400
MD199283 VALVE, EGR |
MD199283 |
US $298.79 |
||
|
12410
|
12410
MD088604
GASKET, EGR VALVE
|
MD088604 |
— | ||
| replacement | |||||
|
12410
|
12410
MD119127 GASKET, EGR VALVE |
MD119127 |
from US $2.44 |
||
|
12421AP
|
12421AP
MB868839
VALVE ASSY,EMISSION SOLENOID
|
MB868839 |
— | ||
|
12421AP
|
12421AP
MR204300
VALVE ASSY,EMISSION SOLENOID
|
MR204300 |
— | ||
|
12421AQ
|
12421AQ
MR127015
VALVE ASSY,EMISSION SOLENOID
|
MR127015 |
— | ||
|
12421AQ
|
12421AQ
MR188338
VALVE ASSY,EMISSION SOLENOID
|
MR188338 |
— | ||
|
12421AY
|
12421AY
MR127231 VALVE ASSY, EMISSION SOLENOID |
MR127231 |
US $75.48 |
||
|
12421P
|
12421P
MR188756 VALVE, EMISSION SOLENOID |
MR188756 |
from US $68.68 |
||
|
12421P
|
12421P
MR299926
VALVE,EMISSION SOLENOID
|
MR299926 |
— | ||
|
12421P
|
12421P
MR312625 VALVE, EMISSION SOLENOID |
MR312625 |
US $86.87 |
||
|
12421Q
|
12421Q
MD126812 VALVE, EMISSION SOLENOID |
MD126812 |
US $75.92 |
||
|
12421Q
|
12421Q
MR127232
VALVE,EMISSION SOLENOID
|
MR127232 |
— | ||
|
12421Q
|
12421Q
MR127520 VALVE, EMISSION SOLENOID |
MR127520 |
from US $56.39 |
||
|
12421Y
|
12421Y
MD085014 VALVE, EMISSION SOLENOID |
MD085014 |
US $71.04 |
||
|
12431
|
12431
MR126976 VALVE, EMISSION VACUUM CONTROL |
MR126976 |
US $75.48 |
||
|
12433AP
|
12433AP
MR127428 HOSE & PIPE ASSY, EMISSION CONTROL |
MR127428 |
US $30.34 |
||
|
12433AQ
|
12433AQ
MR127426
HOSE & PIPE ASSY,EMISSION CONTROL
|
MR127426 |
— | ||
|
12433AQ
|
12433AQ
MR188337
HOSE & PIPE ASSY,EMISSION CONTROL
|
MR188337 |
— | ||
|
12433AS
|
12433AS
MR127427
HOSE & PIPE ASSY,EMISSION CONTROL
|
MR127427 |
— | ||
|
12462
|
12462
MD125817 VACUUM TANK, EMISSION CONTROL |
MD125817 |
US $41.72 |
||
|
12975P
|
12975P
MS470393 CLIP, FUEL RETURN LINE6-16.5 |
MS470393 |
US $4.14 |
||
|
12978P
|
12978P
MF240050 BOLT, ROCKER COVERWasher assembled,8x14 |
MF240050 |
from US $1.07 |
||
|
12978P
|
12978P
MF241824 BOLT, ROCKER COVERWasher assembled,6x14 |
MF241824 |
US $2.22 |
||
|
12978S
|
12978S
MF140722 BOLT, ACCEL CABLE SUPPORTFlange,6x10 |
MF140722 |
US $3.28 |
||
|
12978S
|
12978S
MF140723 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140723 |
US $3.56 |
||
|
12981
|
12981
MR188190 HOSE ASSY, EMISSION VACUUM CONTROL |
MR188190 |
US $6.81 |
||
|
12981
|
12981
MS632392 HOSE, EMISSION CONTROL EQUIP3x2000 |
MS632392 |
US $54.72 |
||
|
12988
|
12988
MF241263 BOLT, BALANCER BELT TRAINWasher assembled,8x50 |
MF241263 |
US $1.50 |
||
|
12994
|
12994
MF434103 NUT, ENG OIL PANFlange,6 |
MF434103 |
from US $0.10 |
||
|
12994
|
12994
MF434123 NUT, SPECIAL LAMP RELAYFlange,6 |
MF434123 |
US $1.78 |
||
|
12999
|
12999
MS240144 BOLT, FUEL LINEWasher assembled,6x30 |
MS240144 |
US $2.07 |
||
|
14927
|
14927
MD127984
SENSOR,EXHAUST HIGH TEMPERATURE
|
MD127984 |
— | ||
|
14962
|
14962
MB249338 BAND, ROCKER COVERL=129.5 |
MB249338 |
US $2.87 |
||
