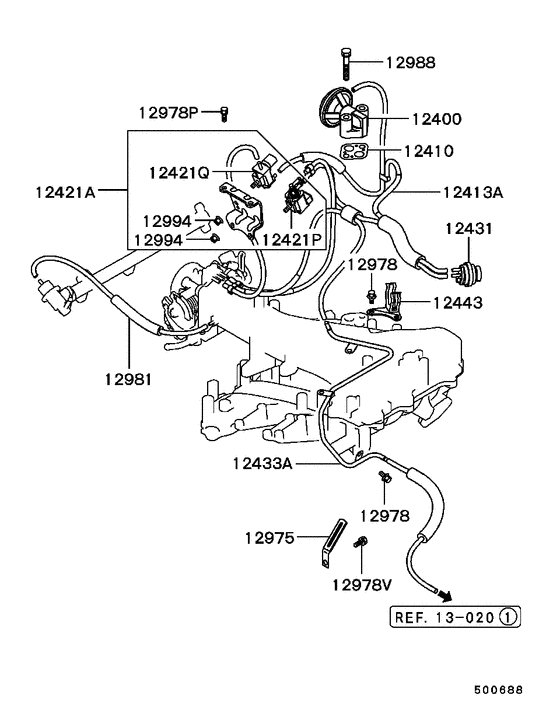

Emission control (9605.1-9705.3) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1996 - 1997
- Sales region
- PUERTO RICO&GUAM
- Note
- LS,4FA/T FED
- transmission
- 4FA/T
- grade
- LS
- body
- LONG WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12400
|
12400
MD199283 VALVE, EGR |
MD199283 |
US $298.79 |
||
|
12410
|
12410
MD088604
GASKET, EGR VALVE
|
MD088604 |
— | ||
| replacement | |||||
|
12410
|
12410
MD119127 GASKET, EGR VALVE |
MD119127 |
from US $2.44 |
||
|
12413A
|
12413A
MR299060
HOSE ASSY,EMISSION VACUUM CONTROL
|
MR299060 |
— | ||
|
12413A
|
12413A
MR299062
HOSE ASSY,EMISSION VACUUM CONTROL
|
MR299062 |
— | ||
|
12421A
|
12421A
MR281265
VALVE ASSY,EMISSION SOLENOID
|
MR281265 |
— | ||
|
12421A
|
12421A
MR299355 VALVE ASSY, EMISSION SOLENOID |
MR299355 |
US $132.46 |
||
|
12421P
|
12421P
MR188756 VALVE, EMISSION SOLENOID |
MR188756 |
from US $68.68 |
||
|
12421P
|
12421P
MR299926
VALVE,EMISSION SOLENOID
|
MR299926 |
— | ||
|
12421P
|
12421P
MR312625 VALVE, EMISSION SOLENOID |
MR312625 |
US $86.87 |
||
|
12421Q
|
12421Q
MD126812 VALVE, EMISSION SOLENOID |
MD126812 |
US $75.92 |
||
|
12421Q
|
12421Q
MR127232
VALVE,EMISSION SOLENOID
|
MR127232 |
— | ||
|
12421Q
|
12421Q
MR127520 VALVE, EMISSION SOLENOID |
MR127520 |
from US $56.39 |
||
|
12431
|
12431
MR126976 VALVE, EMISSION VACUUM CONTROL |
MR126976 |
US $75.48 |
||
|
12433A
|
12433A
MR299063
HOSE & PIPE ASSY,EMISSION CONTROL
|
MR299063 |
— | ||
|
12433A
|
12433A
MR299064
HOSE & PIPE ASSY,EMISSION CONTROL
|
MR299064 |
— | ||
|
12443
|
12443
MR266532 BRACKET, VACUUM CONTROL VALVE |
MR266532 |
US $6.81 |
||
|
12975
|
12975
MS470058 CLIP, ROCKER COVERL=60 |
MS470058 |
from US $1.74 |
||
|
12978
|
12978
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
12978
|
12978
MF140722 BOLT, ACCEL CABLE SUPPORTFlange,6x10 |
MF140722 |
US $3.28 |
||
|
12978
|
12978
MF140723 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140723 |
US $3.56 |
||
|
12978P
|
12978P
MF240050 BOLT, ROCKER COVERWasher assembled,8x14 |
MF240050 |
from US $1.07 |
||
|
12978P
|
12978P
MF241824 BOLT, ROCKER COVERWasher assembled,6x14 |
MF241824 |
US $2.22 |
||
|
12978V
|
12978V
MS240581 BOLT, BRAKE FLUID LINEWasher assembled,6x16 |
MS240581 |
US $2.60 |
||
|
12981
|
12981
MR188190 HOSE ASSY, EMISSION VACUUM CONTROL |
MR188190 |
US $6.81 |
||
|
12981
|
12981
MS632392 HOSE, EMISSION CONTROL EQUIP3x2000 |
MS632392 |
US $54.72 |
||
|
12988
|
12988
MF241263 BOLT, BALANCER BELT TRAINWasher assembled,8x50 |
MF241263 |
US $1.50 |
||
|
12994
|
12994
MF434103 NUT, ENG OIL PANFlange,6 |
MF434103 |
from US $0.10 |
||
|
12994
|
12994
MF434123 NUT, SPECIAL LAMP RELAYFlange,6 |
MF434123 |
US $1.78 |
||
|
