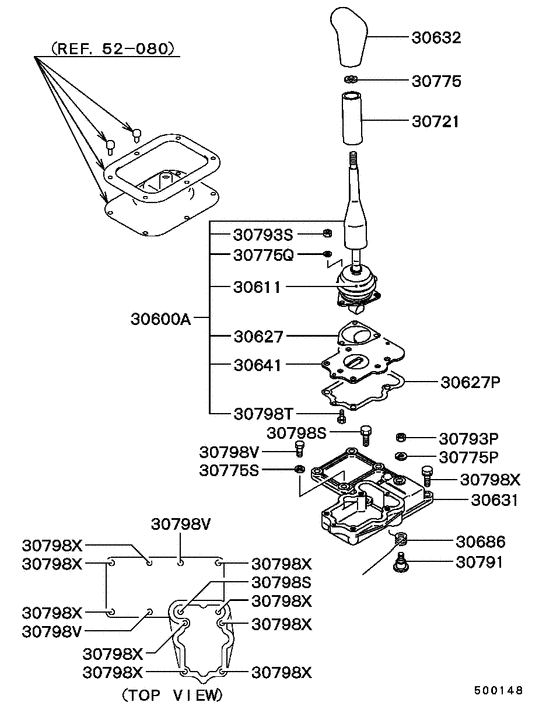

Transfer floor shift control (LHD..A/T (SHIFT LEVER)) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1993 - 1995
- Sales region
- EUR
- Note
- GLX(SUPER SELECT),4FA/T LHD
- transmission
- 4FA/T
- grade
- GLX
- body
- LONG WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30600A
|
30600A
MR110819
LEVER ASSY,T/F GEARSHIFT
|
MR110819 |
— | ||
|
30611
|
30611
MR110487
CAP, T/F GEARSHIFT LEVER
|
MR110487 |
— | ||
| replacement | |||||
|
30611
|
30611
MR567087 CAP, T/F GEARSHIFT LEVER |
MR567087 |
from US $7.88 |
||
|
30627
|
30627
MB937338 GASKET, T/F GEARSHIFT HOUSING COVER |
MB937338 |
from US $3.12 |
||
|
30627P
|
30627P
MR111142 GASKET, T/F GEARSHIFT HOUSING COVER |
MR111142 |
US $6.16 |
||
|
30631
|
30631
MR110826
HOUSING,T/F GEARSHIFT LEVER
|
MR110826 |
— | ||
|
30632
|
30632
MR165349
KNOB,T/F GEARSHIFT LEVER
|
MR165349 |
— | ||
|
30632
|
30632
MR165350
KNOB,T/F GEARSHIFT LEVER
|
MR165350 |
— | ||
|
30641
|
30641
MR110824
PLATE,T/F GEARSHIFT LEVER STOPPER
|
MR110824 |
— | ||
|
30686
|
30686
MB919237
SPRING,T/F GEARSHIFT LEVER
|
MB919237 |
— | ||
|
30775
|
30775
MS450043 WASHER, ENG RR MOUNTINGSpring,10 |
MS450043 |
from US $1.76 |
||
|
30775P
|
30775P
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
30775Q
|
30775Q
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
30775S
|
30775S
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
30791
|
30791
MD736700 PIN, T/F GEARSHIFT LINK |
MD736700 |
US $10.95 |
||
|
30793P
|
30793P
MF430841 NUT, CYLINDER HEADJam,8 |
MF430841 |
from US $0.92 |
||
|
30793S
|
30793S
MF430005 NUT, ROCKER COVER8 |
MF430005 |
from US $1.01 |
||
|
30798S
|
30798S
MD726990 BOLT, T/F GEARSHIFT LINKWasher assembled,8x25 |
MD726990 |
US $2.74 |
||
|
30798S
|
30798S
MF241255 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF241255 |
from US $1.11 |
||
|
30798T
|
30798T
MB936577 BOLT, T/F GEARSHIFT LINKWasher assembled,8x22 |
MB936577 |
US $4.10 |
||
|
30798T
|
30798T
MF106055 BOLT, TANDEM PROPELLER SHAFT8x20 |
MF106055 |
US $1.78 |
||
|
30798V
|
30798V
MB811994 BOLT, T/F GEARSHIFT LINKReamer,8x27 |
MB811994 |
US $1.92 |
||
|
30798V
|
30798V
MD736862 BOLT, T/F GEARSHIFT LINKReamer,8x40 |
MD736862 |
US $2.87 |
||
|
30798X
|
30798X
MD726990 BOLT, T/F GEARSHIFT LINKWasher assembled,8x25 |
MD726990 |
US $2.74 |
||
|
30798X
|
30798X
MF241255 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF241255 |
from US $1.11 |
||
|
52 080
|
Console
52 080
|
||||
|
52 080
|
Console
52 080
|
||||
|
52 080
|
Console
52 080
|
||||
