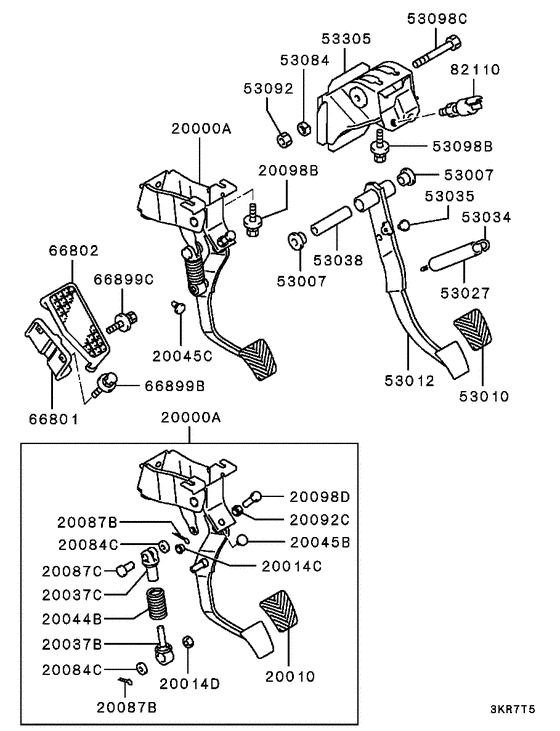

Brake & clutch pedal (M/T) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1997
- Sales region
- Japan
- Note
- EVOLUTION,5FM/T
- transmission
- 5FM/T
- grade
- EVOLUTION
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20000A
|
20000A
MR370644
PEDAL ASSY, CLUTCH
|
MR370644 |
— | ||
|
20010
|
20010
MB193884 PAD, BRAKE PEDAL62x58-40 |
MB193884 |
from US $3.26 |
||
|
20014C
|
20014C
MB555171 BUSHING, CLUTCH PEDAL10x8 |
MB555171 |
from US $3.53 |
||
|
20014D
|
20014D
MB807054 BUSHING, CLUTCH PEDAL10x16 |
MB807054 |
US $2.87 |
||
|
20037B
|
20037B
MB807046 ROD, CLUTCH PEDAL RETURN SPRING |
MB807046 |
US $23.26 |
||
|
20037C
|
20037C
MB807045 ROD, CLUTCH PEDAL RETURN SPRING |
MB807045 |
US $18.47 |
||
|
20044B
|
20044B
MB807041 SPRING, CLUTCH PEDAL RETURN |
MB807041 |
US $7.52 |
||
|
20045B
|
20045B
MR235515 STOPPER, CLUTCH PEDAL |
MR235515 |
US $4.65 |
||
|
20045C
|
20045C
MB134911
STOPPER, BRAKE PEDAL
|
MB134911 |
— | ||
| replacement | |||||
|
20045C
|
20045C
MA306227 STOPPER, ACCEL PEDAL ARM |
MA306227 |
from US $1.58 |
||
|
20084C
|
20084C
MB151106 WASHER, CLUTCH M/CYL10 |
MB151106 |
US $2.74 |
||
|
20087B
|
20087B
MF472052 PIN, FUEL TANKSplit,2.5x20 |
MF472052 |
US $0.96 |
||
|
20087C
|
20087C
MB844735 PIN, CLUTCH PEDALClevis,10x30 |
MB844735 |
US $4.79 |
||
|
20092C
|
20092C
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
20098B
|
20098B
MS240139 BOLT, STEERING COLUMNWasher assembled,8x20 |
MS240139 |
from US $1.23 |
||
|
20098D
|
20098D
MS100135 BOLT, CLUTCH PEDAL10x35 |
MS100135 |
US $2.87 |
||
|
53007
|
53007
MB316867 BUSHING, BRAKE PEDAL18.3x10 |
MB316867 |
from US $2.28 |
||
|
53010
|
53010
MB193884 PAD, BRAKE PEDAL62x58-40 |
MB193884 |
from US $3.26 |
||
|
53012
|
53012
MR370655
PEDAL, BRAKE
|
MR370655 |
— | ||
|
53027
|
53027
MB249288 PROTECTOR, CLUTCH PEDAL RETURN SPRING |
MB249288 |
US $3.26 |
||
|
53034
|
53034
MB316540 SPRING, BRAKE PEDAL RETURN |
MB316540 |
US $4 |
||
|
53035
|
53035
MR235515 STOPPER, CLUTCH PEDAL |
MR235515 |
US $4.65 |
||
|
53038
|
53038
MB151138 SPACER, CLUTCH PEDAL79.2 |
MB151138 |
US $6.43 |
||
|
53084
|
53084
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.41 |
||
|
53092
|
53092
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
53098C
|
53098C
MB316045
BOLT, CLUTCH PEDAL
|
MB316045 |
— | ||
| replacement | |||||
|
53098C
|
53098C
MF104902 BOLT, CLUTCH PEDAL10x100 |
MF104902 |
from US $2.03 |
||
|
53305
|
53305
MB891561 MEMBER, PEDAL SUPPORT |
MB891561 |
US $41.44 |
||
|
66801
|
66801
MB690213 BRACKET, FOOTREST |
MB690213 |
US $7.11 |
||
|
66802
|
66802
MB319436 FOOTREST |
MB319436 |
US $9.03 |
||
|
66899B
|
66899B
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
66899C
|
66899C
MS240402 BOLT, RADIATOR GRILLEWasher assembled,6x20 |
MS240402 |
US $3.01 |
||
|
82110
|
82110
MB229024 SWITCH, STOP LAMP |
MB229024 |
from US $13 |
||
