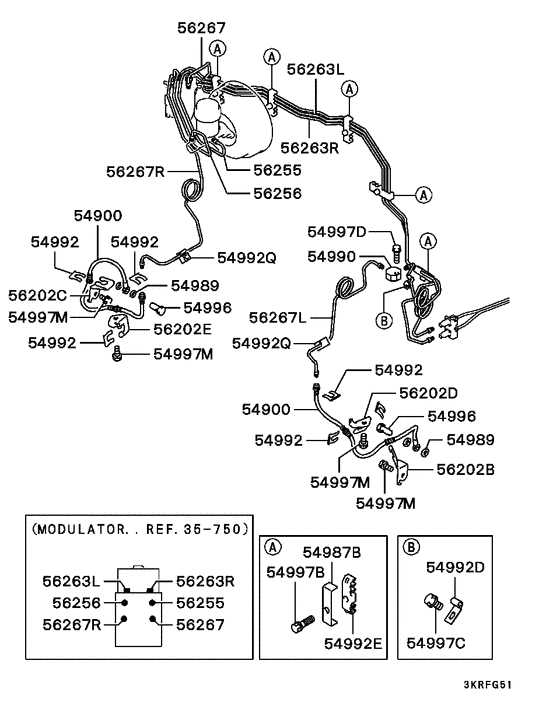

Brake line (FR..ABS) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1997
- Sales region
- Japan
- Note
- EVOLUTION,5FM/T
- transmission
- 5FM/T
- grade
- EVOLUTION
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
54900
|
54900
MR334771
HOSE, FR BRAKE
|
MR334771 |
— | ||
|
54987B
|
54987B
MB668276 HOLDER, BRAKE FLUID LINE |
MB668276 |
US $4.59 |
||
|
54989
|
54989
MA111832 GASKET, CLUTCH M/CYL10.2 |
MA111832 |
from US $1.07 |
||
|
54990
|
54990
MB618029 JOINT, BRAKE FLUID LINE |
MB618029 |
US $18.50 |
||
|
54992
|
54992
MA431825 CLIP, BRAKE FLUID LINE13 |
MA431825 |
from US $1.83 |
||
|
54992D
|
54992D
MB344587 CLIP, RR AXLE BRAKE TUBE4.76 |
MB344587 |
US $4.38 |
||
|
54992E
|
54992E
MB668275 CLIP, BRAKE FLUID LINE4.7-4.7-4.7-4.7-4.7 |
MB668275 |
US $11.84 |
||
|
54992E
|
54992E
MR205070 CLIP, BRAKE FLUID LINE4.7-6.3-4.7-4.7-4.7 |
MR205070 |
US $3.40 |
||
|
54992Q
|
54992Q
MR249619 CLIP, CLUTCH M/CYL |
MR249619 |
US $2.52 |
||
|
54996
|
54996
MR249625
EYEBOLT, BRAKE FLUID LINE
|
MR249625 |
— | ||
| replacement | |||||
|
54996
|
54996
MU001458 EYEBOLT, RR AXLE BRAKE TUBE |
MU001458 |
from US $3.37 |
||
|
54997B
|
54997B
MF240055 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF240055 |
from US $1.23 |
||
|
54997C
|
54997C
MF240050 BOLT, ROCKER COVERWasher assembled,8x14 |
MF240050 |
from US $1.07 |
||
|
54997D
|
54997D
MF240056 BOLTWasher assembled,8x28 |
MF240056 |
from US $0.88 |
||
|
54997M
|
54997M
MF240049 BOLT, ENG BREATHERWasher assembled,8x12 |
MF240049 |
from US $1.01 |
||
|
56202B
|
56202B
MR334757
BRACKET, BRAKE HOSE, LH
|
MR334757 |
— | ||
|
56202C
|
56202C
MR334758
BRACKET, BRAKE HOSE, RH
|
MR334758 |
— | ||
|
56202D
|
56202D
MR334927
BRACKET, BRAKE HOSE, LH
|
MR334927 |
— | ||
|
56202E
|
56202E
MR334928 BRACKET, BRAKE HOSE, RH |
MR334928 |
US $11.90 |
||
|
56255
|
56255
MR334913 TUBE, BRAKE M/CYL PRIMARY |
MR334913 |
US $10.95 |
||
|
56256
|
56256
MR334914 TUBE, BRAKE M/CYL SECONDARY |
MR334914 |
US $10.95 |
||
|
56263L
|
56263L
MR334917 TUBE, BRAKE MAIN, FR LH |
MR334917 |
US $48.10 |
||
|
56263R
|
56263R
MR334918 TUBE, BRAKE MAIN, FR RH |
MR334918 |
US $46.62 |
||
|
56267
|
56267
MR334915 TUBE, FR BRAKE |
MR334915 |
US $40.70 |
||
|
56267L
|
56267L
MR334764
TUBE, FR BRAKE, LH
|
MR334764 |
— | ||
|
56267R
|
56267R
MR334916 TUBE, FR BRAKE, RH |
MR334916 |
US $29.41 |
||
|
35 750
|
Modulator
35 750
|
||||
