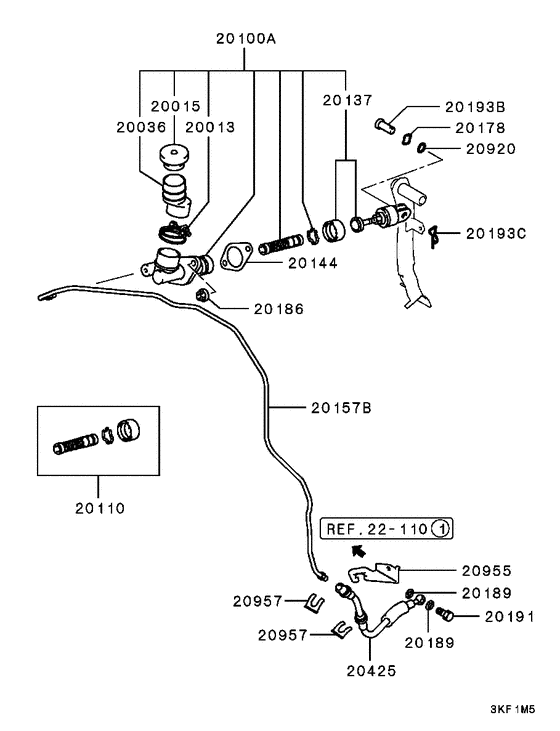

Clutch control (ALL) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1997
- Sales region
- Japan
- Note
- EVOLUTION,5FM/T
- transmission
- 5FM/T
- grade
- EVOLUTION
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20013
|
20013
MB193387
BAND, BRAKE M/CYL INR
|
MB193387 |
— | ||
|
20015
|
20015
MB555135 CAP, CLUTCH FLUID RESERVOIR |
MB555135 |
from US $8.17 |
||
|
20036
|
20036
MB892020
RESERVOIR, CLUTCH FLUID
|
MB892020 |
— | ||
|
20100A
|
20100A
MR353584
CYLINDER ASSY, CLUTCH MASTER
|
MR353584 |
— | ||
|
20110
|
20110
MR234246 CYLINDER KIT, CLUTCH MASTER |
MR234246 |
from US $33.30 |
||
|
20137
|
20137
MR132608 PUSH ROD, CLUTCH M/CYL |
MR132608 |
US $34.78 |
||
|
20144
|
20144
MB555016 SEAL, CLUTCH M/CYL |
MB555016 |
US $3.56 |
||
|
20157B
|
20157B
MR353535
TUBE, CLUTCH M/CYL
|
MR353535 |
— | ||
|
20178
|
20178
MF451105 WASHER, BACK DOOR LOCKINGWave,10 |
MF451105 |
US $2.74 |
||
|
20186
|
20186
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
20189
|
20189
MA111832 GASKET, CLUTCH M/CYL10.2 |
MA111832 |
from US $1.07 |
||
|
20191
|
20191
MB082326 EYEBOLT, RR AXLE BRAKE TUBE10x21 |
MB082326 |
from US $5.30 |
||
|
20193B
|
20193B
MF473492 PIN, CLUTCH M/CYLClevis,10x23 |
MF473492 |
from US $2.67 |
||
|
20193C
|
20193C
MB858800 PIN, BRAKE BOOSTERSnap,10 |
MB858800 |
from US $1.13 |
||
|
20425
|
20425
MR418722
HOSE, CLUTCH RELEASE CYLINDER
|
MR418722 |
— | ||
|
20920
|
20920
MF520006 O-RING, ENG OIL FILLER10.1 |
MF520006 |
from US $0.96 |
||
|
20955
|
20955
MR418721
BRACKET, CLUTCH FLUID LINE
|
MR418721 |
— | ||
|
20957
|
20957
MA431825 CLIP, BRAKE FLUID LINE13 |
MA431825 |
from US $1.83 |
||
|
22 110
|
M/t case
22 110
|
||||
|
22 110
|
M/t case
22 110
|
||||
|
22 110
|
M/t case
22 110
|
||||
