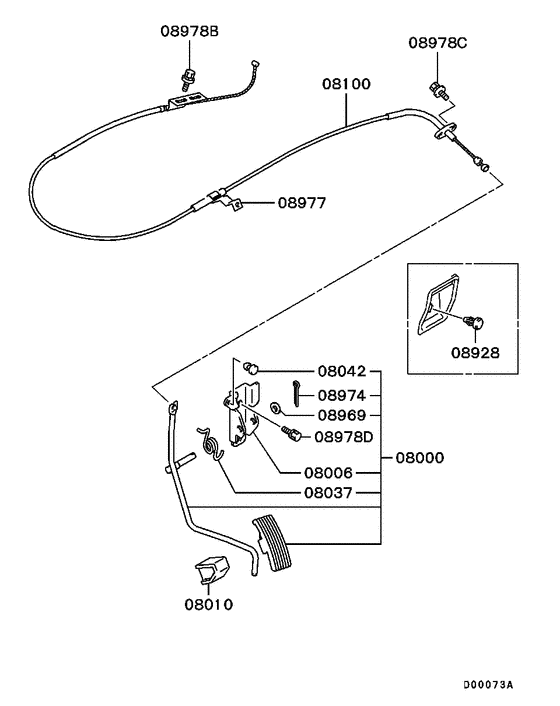

Engine control (ALL) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1997
- Sales region
- Japan
- Note
- EVOLUTION,5FM/T
- transmission
- 5FM/T
- grade
- EVOLUTION
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
08000
|
08000
MR370647
PEDAL, ACCEL
|
MR370647 |
— | ||
|
08006
|
08006
MB539662 BRACKET, ACCEL PEDAL ARM |
MB539662 |
US $8.73 |
||
|
08010
|
08010
MB864399 PAD, ACCEL PEDAL |
MB864399 |
US $8.07 |
||
|
08037
|
08037
MB011387 SPRING, ACCEL PEDAL ARM RETURN |
MB011387 |
from US $2.20 |
||
|
08042
|
08042
MR235515 STOPPER, CLUTCH PEDAL |
MR235515 |
US $4.65 |
||
|
08100
|
08100
MR353536
CABLE, ACCEL
|
MR353536 |
— | ||
|
08928
|
08928
MB778197 PLUG, INSTRUMENT PANEL SWITCH |
MB778197 |
US $4.24 |
||
|
08969
|
08969
MA152064 WASHER, WATER SEPARATOR INR |
MA152064 |
US $4.24 |
||
|
08974
|
08974
MF472067 PIN, WATER SEPARATOR INRSplit,3x20 |
MF472067 |
from US $0.45 |
||
|
08977
|
08977
MR267270
CLIP, ACCEL CONTROL EQUIP
|
MR267270 |
— | ||
|
08978B
|
08978B
MF243623 BOLT, FLYWHEEL HOUSINGWasher assembled,6x14 |
MF243623 |
US $2.74 |
||
|
08978C
|
08978C
MS240022 BOLT, CRUISE CONTROL EQUIPWasher assembled,6x20 |
MS240022 |
US $2.19 |
||
|
08978D
|
08978D
MS240085 BOLT, ENG OIL LINEWasher assembled,8x20 |
MS240085 |
from US $1.07 |
