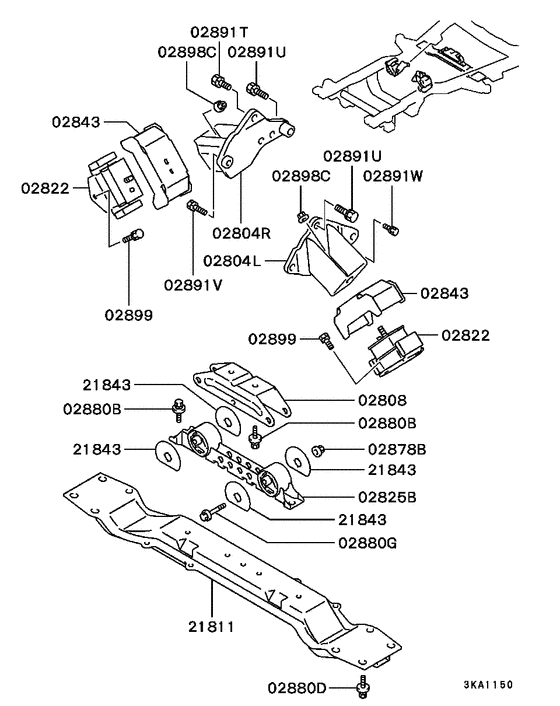

Engine mounting & support (A/T) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1997
- Sales region
- Japan
- Note
- EVOLUTION,5FM/T
- transmission
- 5FM/T
- grade
- EVOLUTION
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02804L
|
02804L
MD300946 BRACKET, CYLINDER BLOCK ENG MOUNTING, LH |
MD300946 |
US $79.18 |
||
|
02804R
|
02804R
MD353841 BRACKET, CYLINDER BLOCK ENG MOUNTING, RH |
MD353841 |
US $77.70 |
||
|
02808
|
02808
MB932070 BRACKET, T/F MOUNTING |
MB932070 |
US $19.15 |
||
|
02822
|
02822
MR267922 CUSHION, CROSSMEMBER ENG MOUNTING |
MR267922 |
US $62.93 |
||
|
02825B
|
02825B
MR133663 CUSHION, ENG RR MOUNTING |
MR133663 |
from US $143.64 |
||
|
02843
|
02843
MR267923 STOPPER, ENG FR MOUNTING CUSHION |
MR267923 |
US $37.62 |
||
|
02878B
|
02878B
MF434105 NUT, CYLINDER BLOCKFlange,10 |
MF434105 |
from US $1.19 |
||
|
02880B
|
02880B
MF244880 BOLT, ENG RR MOUNTINGWasher assembled,10x25 |
MF244880 |
from US $1.50 |
||
|
02880D
|
02880D
MF244905 BOLT, ENG RR MOUNTINGWasher assembled,12x25 |
MF244905 |
from US $1.01 |
||
|
02880G
|
02880G
MF140275 BOLT, EXHAUST PIPEFlange,10x85 |
MF140275 |
from US $3.30 |
||
|
02880G
|
02880G
MF140475 BOLT, ENG SUPPORT RODFlange,10x85 |
MF140475 |
from US $3.28 |
||
|
02891T
|
02891T
MF301365
BOLT, ENG MOUNTING
|
MF301365 |
— | ||
|
02891U
|
02891U
MF301368
BOLT, ENG MOUNTING
|
MF301368 |
— | ||
|
02891V
|
02891V
MF301349
BOLT, ENG MOUNTING
|
MF301349 |
— | ||
|
02891W
|
02891W
MF241853
BOLT, RR SEAT
|
MF241853 |
— | ||
|
02898C
|
02898C
MF434105 NUT, CYLINDER BLOCKFlange,10 |
MF434105 |
from US $1.19 |
||
|
02899
|
02899
MF244882 BOLT, ENG RR MOUNTINGWasher assembled,10x30 |
MF244882 |
from US $1.05 |
||
|
21811
|
21811
MR319562 CROSSMEMBER, T/M MOUNTING |
MR319562 |
US $238.28 |
||
|
21843
|
21843
MB932076 STOPPER, T/M MOUNTING ROLL STOPPER CUSHION |
MB932076 |
from US $3.88 |
