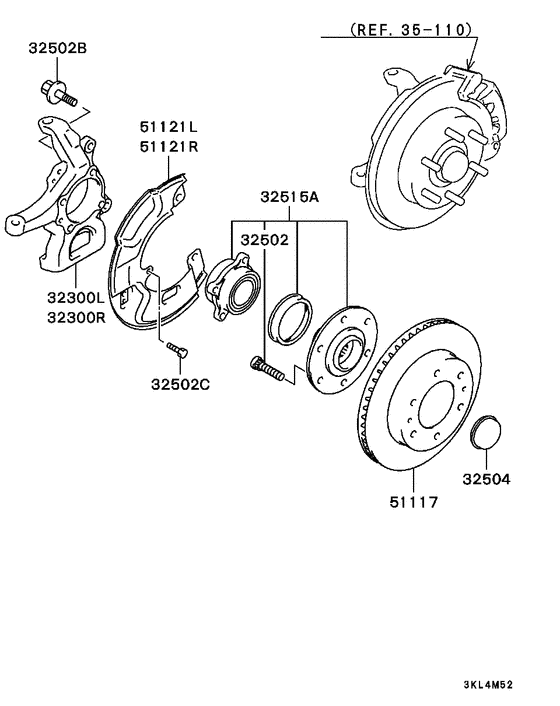

Front axle hub & drum (ALL) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1997
- Sales region
- Japan
- Note
- EVOLUTION,5FM/T
- transmission
- 5FM/T
- grade
- EVOLUTION
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32300L
|
32300L
MR319991 KNUCKLE, LH |
MR319991 |
US $544.54 |
||
|
32300R
|
32300R
MR319992 KNUCKLE, RH |
MR319992 |
US $544.54 |
||
|
32502
|
32502
MB584750 BOLT, WHEEL HUB12x43 |
MB584750 |
from US $1.85 |
||
|
32502B
|
32502B
MU140016 BOLT, FR WHEEL HUBFlange,12x45 |
MU140016 |
from US $4.10 |
||
|
32502C
|
32502C
MS240095 BOLT, ENG OIL COOLER LINEWasher assembled,8x16 |
MS240095 |
US $2.74 |
||
|
32504
|
32504
MR353350 CAP, FR WHEEL HUB |
MR353350 |
from US $3.33 |
||
|
32515A
|
32515A
MR418493 HUB ASSY, FR WHEEL |
MR418493 |
US $429.94 |
||
|
51117
|
51117
MR289995
DISC, FR BRAKE
|
MR289995 |
— | ||
|
51121L
|
51121L
MR334755
COVER, FR BRAKE DISC, LH
|
MR334755 |
— | ||
|
51121R
|
51121R
MR334756
COVER, FR BRAKE DISC, RH
|
MR334756 |
— | ||
|
35 110
|
Front wheel brake
35 110
|
||||
