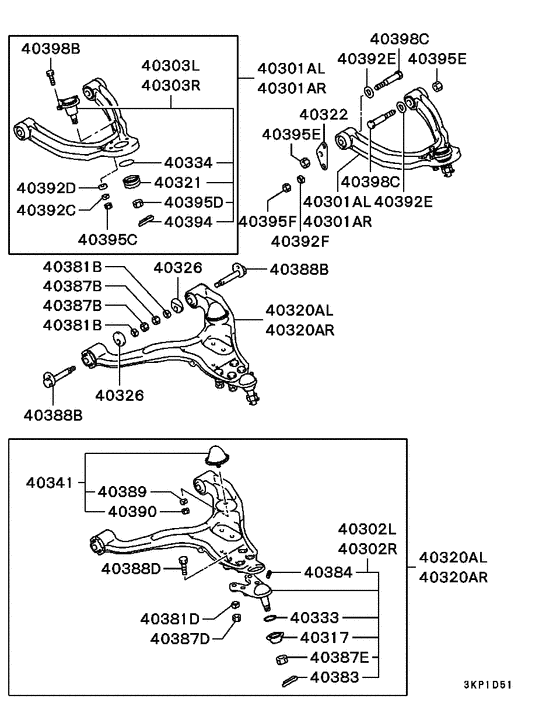

Front susp arm & member (SUSPENSION ARM..EVOLUTION) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1997
- Sales region
- Japan
- Note
- EVOLUTION,5FM/T
- transmission
- 5FM/T
- grade
- EVOLUTION
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
40301AL
|
40301AL
MR392793 ARM ASSY, FR SUSP, UPR LH |
MR392793 |
US $608.40 |
||
|
40301AR
|
40301AR
MR392794 ARM ASSY, FR SUSP, UPR RH |
MR392794 |
US $608.40 |
||
|
40302L
|
40302L
MR414137
BALL JOINT KIT, FR SUSP LWR ARM, LH
|
MR414137 |
— | ||
|
40302R
|
40302R
MR414138
BALL JOINT KIT, FR SUSP LWR ARM, RH
|
MR414138 |
— | ||
|
40303L
|
40303L
MR392826 BALL JOINT KIT, FR SUSP UPR ARM |
MR392826 |
US $88.92 |
||
|
40303R
|
40303R
MR392826 BALL JOINT KIT, FR SUSP UPR ARM |
MR392826 |
US $88.92 |
||
|
40317
|
40317
MT362563 COVER, FR SUSP LWR ARM BALL JOINT |
MT362563 |
from US $8.64 |
||
|
40320AL
|
40320AL
MR392795
ARM ASSY, FR SUSP, LWR LH
|
MR392795 |
— | ||
|
40320AR
|
40320AR
MR392796 ARM ASSY, FR SUSP, LWR RH |
MR392796 |
US $422.24 |
||
|
40321
|
40321
MR353204 COVER, FR SUSP UPR ARM BALL JOINT |
MR353204 |
US $17.02 |
||
|
40322
|
40322
MR353212 BRACKET, FR SUSP UPR ARM |
MR353212 |
US $48.10 |
||
|
40326
|
40326
MB430154 PLATE, FR SUSP LWR ARM SHAFT |
MB430154 |
from US $3.43 |
||
|
40333
|
40333
MT141183 RING, FR SUSP LWR ARM BALL JOINT |
MT141183 |
from US $1.50 |
||
|
40334
|
40334
MB633819 RING, FR SUSP UPR ARM BALL JOINT |
MB633819 |
US $4.44 |
||
|
40341
|
40341
MB831096 STOPPER KIT, FR SUSP LWR ARM BUMP |
MB831096 |
from US $37.71 |
||
|
40381B
|
40381B
MS451114 WASHER, FR DIFF MOUNTING |
MS451114 |
from US $1.48 |
||
|
40381D
|
40381D
MF450407 WASHERSpring,12 |
MF450407 |
from US $0.84 |
||
|
40383
|
40383
MF472085 PIN, ENG OIL PUMP INR |
MF472085 |
from US $0.31 |
||
|
40384
|
40384
MF524001 NIPPLE, FR SUSP LWR ARMStraight,6 |
MF524001 |
from US $1.33 |
||
|
40387B
|
40387B
MU430004 NUT, FR SUSP LWR ARM8t,12 |
MU430004 |
from US $1.70 |
||
|
40387D
|
40387D
MF430123 NUT, ENG RR MOUNTING12 |
MF430123 |
from US $1.11 |
||
|
40387E
|
40387E
MF431344 NUT, FR SUSP LWR ARMSlotted,4t,16 |
MF431344 |
US $2.74 |
||
|
40388B
|
40388B
MB951707 BOLT, FR SUSP LWR ARM12x112 |
MB951707 |
from US $5.46 |
||
|
40388D
|
40388D
MF104916 BOLT, FR SUSP LWR ARM12x40 |
MF104916 |
US $2.19 |
||
|
40389
|
40389
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
40390
|
40390
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
40392C
|
40392C
MR374753 WASHER, FR SUSP UPR ARM |
MR374753 |
US $2.07 |
||
|
40392D
|
40392D
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
40392E
|
40392E
MF450010 WASHER, CRANKSHAFTPlain,18 |
MF450010 |
from US $1.17 |
||
|
40392F
|
40392F
MF450407 WASHERSpring,12 |
MF450407 |
from US $0.84 |
||
|
40394
|
40394
MF472071 PIN, ENG RH COVERSplit,3x30 |
MF472071 |
from US $0.31 |
||
|
40395C
|
40395C
MF430121 NUT, CYLINDER HEAD8 |
MF430121 |
from US $0.80 |
||
|
40395D
|
40395D
MF431343 NUT, FR SUSP UPR ARMSlotted,14 |
MF431343 |
from US $1.37 |
||
|
40395E
|
40395E
MF445087 NUT, ENG RR MOUNTINGSelf locking,14 |
MF445087 |
US $7.11 |
||
|
40395F
|
40395F
MF430007 NUT12 |
MF430007 |
from US $1.46 |
||
|
40398B
|
40398B
MF106059 BOLT, FR SUSP UPR ARM8x30 |
MF106059 |
US $2.96 |
||
|
40398C
|
40398C
MR353179
BOLT, FR SUSP UPR ARM
|
MR353179 |
— |
