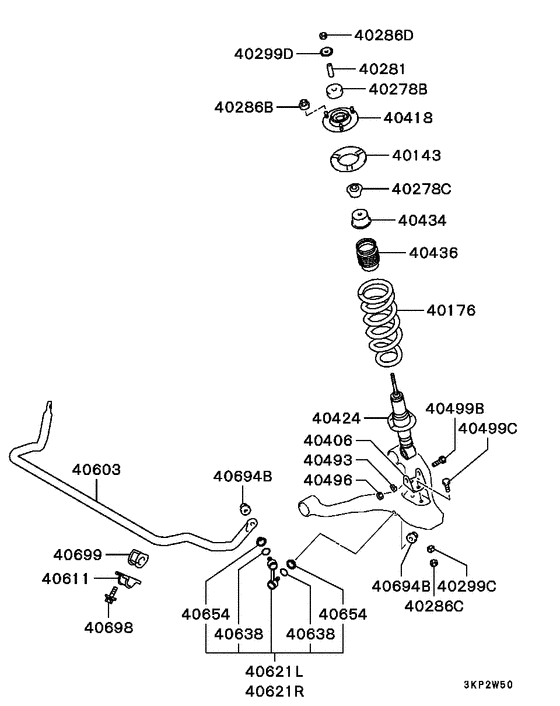

Front susp strut & spring (FRONT SUSPENSION..EVOLUTION) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1997
- Sales region
- Japan
- Note
- EVOLUTION,5FM/T
- transmission
- 5FM/T
- grade
- EVOLUTION
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
40143
|
40143
MR353200
PAD, FR SUSP SPRING
|
MR353200 |
— | ||
|
40176
|
40176
MR353196
SPRING, FR SUSP COIL
|
MR353196 |
— | ||
|
40278B
|
40278B
MR353209
BUSHING, FR SUSP COIL SPRING
|
MR353209 |
— | ||
|
40278C
|
40278C
MR353210
BUSHING, FR SUSP COIL SPRING
|
MR353210 |
— | ||
|
40281
|
40281
MR353211 COLLAR, FR SUSP COIL SPRING |
MR353211 |
from US $5.05 |
||
|
40286B
|
40286B
MF434105 NUT, CYLINDER BLOCKFlange,10 |
MF434105 |
from US $1.19 |
||
|
40286C
|
40286C
MF430122 NUT, ENG RR MOUNTING10 |
MF430122 |
from US $0.72 |
||
|
40286D
|
40286D
MU435003 NUT, FR SUSP COIL SPRING |
MU435003 |
US $2.60 |
||
|
40299C
|
40299C
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
40299D
|
40299D
MR267271
WASHER, FR SUSP COIL SPRING
|
MR267271 |
— | ||
|
40406
|
40406
MR353201
BRACKET, FR SHOCK ABSORBER, LWR
|
MR353201 |
— | ||
|
40418
|
40418
MR353197
INSULATOR, FR SHOCK ABSORBER
|
MR353197 |
— | ||
|
40424
|
40424
MR353195 SHOCK ABSORBER, FR SUSP |
MR353195 |
US $325.83 |
||
|
40434
|
40434
MB338614 CUP, RR SHOCK ABSORBER |
MB338614 |
from US $6.67 |
||
|
40436
|
40436
MB864911 COVER, FR SUSP STRUT |
MB864911 |
from US $22.27 |
||
|
40493
|
40493
MS451115 WASHER, RR DIFF RR MOUNTING |
MS451115 |
from US $3.84 |
||
|
40496
|
40496
MF430124 NUT6T, 14 |
MF430124 |
from US $1.29 |
||
|
40499B
|
40499B
MF106152 BOLT, ALTERNATOR14x80 |
MF106152 |
from US $5.34 |
||
|
40499C
|
40499C
MF101283 BOLT, CYLINDER BLOCK10x20 |
MF101283 |
US $2.74 |
||
|
40603
|
40603
MR353189 BAR, FR SUSP STABILIZER30 |
MR353189 |
US $340.70 |
||
|
40611
|
40611
MR150097 BRACKET, FR SUSP STABILIZER BAR |
MR150097 |
US $13 |
||
|
40621L
|
40621L
MR353185
LINK, FR SUSP STABILIZER, LH
|
MR353185 |
— | ||
|
40621R
|
40621R
MR353186 LINK, FR SUSP STABILIZER, RH |
MR353186 |
US $103.97 |
||
|
40638
|
40638
MB633060
RING, FR SUSP STABILIZER LINK DUST COVER
|
MB633060 |
— | ||
| replacement | |||||
|
40638
|
40638
MB892989 RING, SUSP STABILIZER LINK DUST COVER |
MB892989 |
US $8.34 |
||
|
40654
|
40654
MR267871 COVER, FR SUSP STABILIZER LINK BALL JOINT DUST |
MR267871 |
US $7.11 |
||
|
40694B
|
40694B
MH004161 NUT, CHASSIS FRAMEFlange,12 |
MH004161 |
from US $1.91 |
||
|
40698
|
40698
MS240091 BOLT, FR BUMPERWasher assembled,10x30 |
MS240091 |
US $2.46 |
||
|
40699
|
40699
MR150094 BUSHING, FR SUSP STABILIZER29 |
MR150094 |
from US $8.60 |
||
