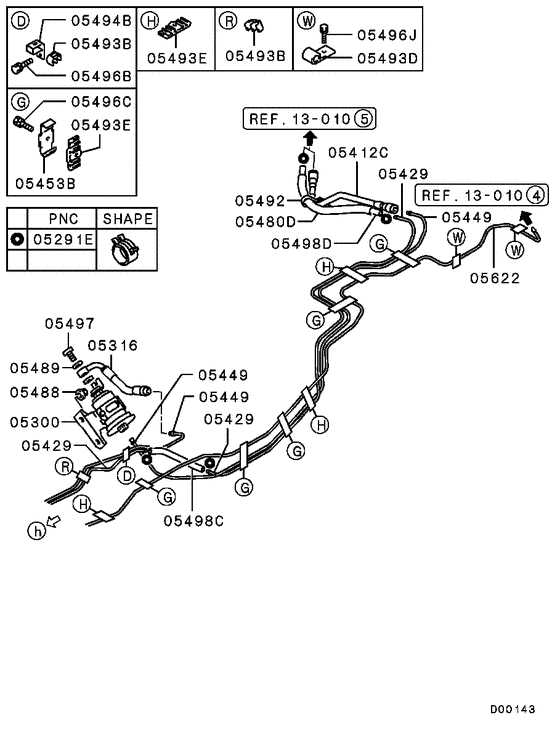

Fuel line & vapor gas control (REAR) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1997
- Sales region
- Japan
- Note
- EVOLUTION,5FM/T
- transmission
- 5FM/T
- grade
- EVOLUTION
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05291E
|
05291E
MB329606 CLIP, FUEL RETURN LINE |
MB329606 |
US $4.51 |
||
|
05300
|
05300
MB868452 FUEL FILTER |
MB868452 |
from US $75.54 |
||
|
05316
|
05316
MR160408 HOSE, FUEL FILTER HIGH PRESSURE |
MR160408 |
US $94.39 |
||
|
05412C
|
05412C
MR355455
HOSE, FUEL HIGH PRESSURE
|
MR355455 |
— | ||
|
05429
|
05429
MR355457 PIPE, FUEL RETURN |
MR355457 |
US $33.30 |
||
|
05429
|
05429
MR355459 PIPE, FUEL RETURN |
MR355459 |
US $48.10 |
||
|
05429
|
05429
MR355462 PIPE, FUEL RETURN |
MR355462 |
US $8.58 |
||
|
05449
|
05449
MR355456 PIPE, FUEL LINE |
MR355456 |
US $52.54 |
||
|
05449
|
05449
MR355458 PIPE, FUEL LINE |
MR355458 |
US $70.30 |
||
|
05453B
|
05453B
MB554176 SUPPORT, FUEL LINE |
MB554176 |
US $10.40 |
||
|
05480D
|
05480D
MB044005
TUBE, FUEL TANK
|
MB044005 |
— | ||
| replacement | |||||
|
05480D
|
05480D
MB133481 TUBE, FUEL RETURN LINE |
MB133481 |
US $6.84 |
||
|
05488
|
05488
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
05489
|
05489
MF660064 GASKET, CYLINDER BLOCKD=12 |
MF660064 |
from US $0.57 |
||
|
05492
|
05492
MB249339 BAND, ENG BREATHERL=169.5 |
MB249339 |
from US $1.50 |
||
|
05493B
|
05493B
MB181581 CLIP, FUEL LINE8,6.1 |
MB181581 |
US $2.87 |
||
|
05493D
|
05493D
MF477022 CLIP, FUEL FILLER LID LOCKINGD=6 |
MF477022 |
US $1.64 |
||
|
05493E
|
05493E
MB316724 CLIP, SPEEDOMETER CABLE6.2x4.5x4.5x7.8x6.2 |
MB316724 |
US $3.15 |
||
|
05494B
|
05494B
MB658523 CLIP, FUEL LINE |
MB658523 |
US $4.51 |
||
|
05496B
|
05496B
MF240050 BOLT, ROCKER COVERWasher assembled,8x14 |
MF240050 |
from US $1.07 |
||
|
05496C
|
05496C
MS240084 BOLT, FUEL LINEWasher assembled,6x30 |
MS240084 |
US $2.19 |
||
|
05496J
|
05496J
MF240024 BOLT, FUEL TANKWasher assembled,6x14 |
MF240024 |
US $2.60 |
||
|
05497
|
05497
MS650013 EYEBOLT, FUEL LINE12x23 |
MS650013 |
from US $3.28 |
||
|
05498C
|
05498C
MU600698 HOSE, FUEL TANK6x2000 |
MU600698 |
US $97.13 |
||
|
05498D
|
05498D
MU600698 HOSE, FUEL TANK6x2000 |
MU600698 |
US $97.13 |
||
|
05622
|
05622
MR355460 PIPE, FUEL VAPOR |
MR355460 |
US $54.02 |
||
|
13 010
|
Fuel tank
13 010
|
||||
|
13 010
|
Fuel tank
13 010
|
||||
