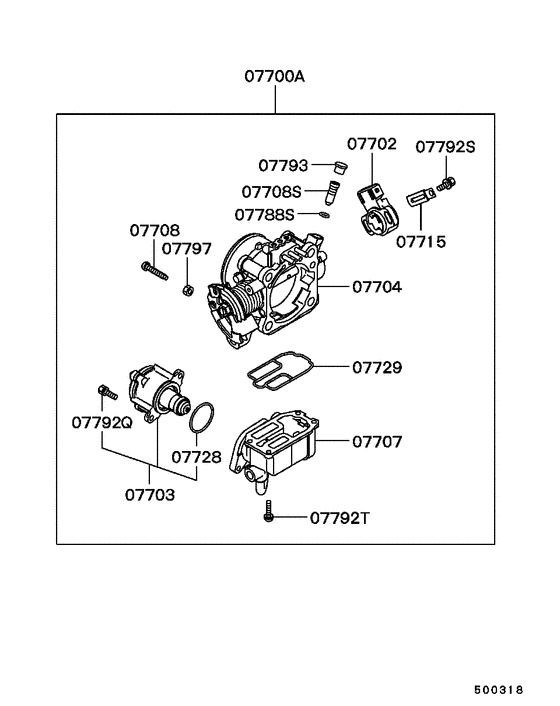

Injector & throttle body (ALL (INNER PARTS)) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1997
- Sales region
- Japan
- Note
- EVOLUTION,5FM/T
- transmission
- 5FM/T
- grade
- EVOLUTION
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
07700A
|
07700A
MD349099
Throttle Body Assy
|
MD349099 |
— | ||
|
07702
|
07702
MD614735 SENSOR, THROTTLE BODY THROTTLE |
MD614735 |
from US $189.25 |
||
|
07703
|
07703
MD614678
SERVO KIT, THROTTLE BODY IDLE SPEED CONTROL
|
MD614678 |
— | ||
| replacement | |||||
|
07703
|
07703
MD628059 SERVO KIT, THROTTLE BODY IDLE SPEED CONTROL |
MD628059 |
from US $428.58 |
||
|
07703
|
07703
MD628059 SERVO KIT, THROTTLE BODY IDLE SPEED CONTROL |
MD628059 |
from US $428.58 |
||
|
07704
|
07704
MD628085
BODY, THROTTLE BODY MIXING
|
MD628085 |
— | ||
|
07707
|
07707
MD614679
VALVE, FAST IDLE AIR
|
MD614679 |
— | ||
|
07708
|
07708
MD614304 ADJUSTING SCREW, THROTTLE BODY SPEED |
MD614304 |
US $4.79 |
||
|
07708S
|
07708S
MD614948 ADJUSTING SCREW, THROTTLE BODY SPEED |
MD614948 |
from US $3.53 |
||
|
07715
|
07715
MD617649 CLAMP, CARB INR |
MD617649 |
US $6.84 |
||
|
07728
|
07728
MD614417 O-RING, THROTTLE BODY IDLE SPEED CONTROL SERVO |
MD614417 |
from US $7.14 |
||
|
07729
|
07729
MD614680 O-RING, THROTTLE BODY FAST IDLE AIR VALVE |
MD614680 |
from US $5.89 |
||
|
07788S
|
07788S
MD608806 O-RING, THROTTLE BODY INR |
MD608806 |
from US $3.74 |
||
|
07792Q
|
07792Q
MD614285
SCREW, THROTTLE BODY INR
|
MD614285 |
— | ||
|
07792Q
|
07792Q
MD628050 SCREW, THROTTLE BODY INR |
MD628050 |
US $4.29 |
||
|
07792S
|
07792S
MD614528 SCREW, THROTTLE BODY INR |
MD614528 |
US $4.38 |
||
|
07792T
|
07792T
MF200055 SCREW, HEADLININGMachine,5x20 |
MF200055 |
US $2.22 |
||
|
07793
|
07793
MD614532 CAP, THROTTLE BODY INR |
MD614532 |
US $12.45 |
||
|
07797
|
07797
MD614305 NUT, THROTTLE BODY |
MD614305 |
US $2.74 |
||
