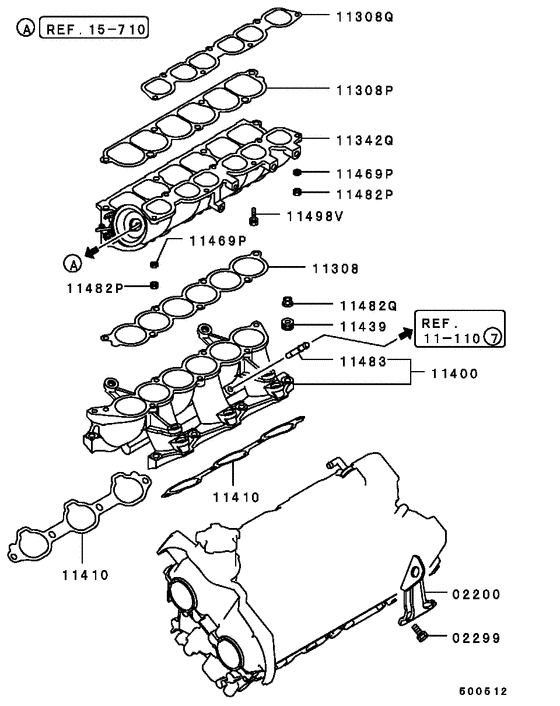

Inlet manifold (ALL (MANIFOLD)) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1997
- Sales region
- Japan
- Note
- EVOLUTION,5FM/T
- transmission
- 5FM/T
- grade
- EVOLUTION
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02200
|
02200
MD357025 ENGINE HANGER |
MD357025 |
US $46.62 |
||
|
02299
|
02299
MF241852 BOLT, INLET MANIFOLDWasher assembled,8x18 |
MF241852 |
US $3.28 |
||
|
11308
|
11308
MD300483 GASKET, ENG AIR INTAKE SURGE TANK |
MD300483 |
from US $9.28 |
||
|
11308P
|
11308P
MD347649
GASKET, ENG AIR INTAKE SURGE TANK
|
MD347649 |
— | ||
|
11308Q
|
11308Q
MD347648 GASKET, ENG AIR INTAKE SURGE TANK |
MD347648 |
US $9.92 |
||
|
11342Q
|
11342Q
MD355097
TANK, ENG AIR INTAKE SURGE
|
MD355097 |
— | ||
|
11400
|
11400
MD352567 MANIFOLD, INLET |
MD352567 |
US $544.54 |
||
|
11410
|
11410
MD308039
GASKET, INLET MANIFOLD
|
MD308039 |
— | ||
|
11439
|
11439
MD307210 SPRING, INLET MANIFOLD DISC |
MD307210 |
from US $3.33 |
||
|
11469P
|
11469P
MF450494 WASHER, AIR CLEANERSpring,6 |
MF450494 |
US $1.78 |
||
|
11482P
|
11482P
MF430064 NUT, AIR CLEANER6 |
MF430064 |
US $1.63 |
||
|
11482Q
|
11482Q
MD090676 NUT, TIMING BELT TRAINFlange,8 |
MD090676 |
US $3.97 |
||
|
11483
|
11483
MD135983 NIPPLE, INLET MANIFOLD8 |
MD135983 |
US $5.18 |
||
|
11498V
|
11498V
MF241827
BOLT, ROCKER COVER
|
MF241827 |
— | ||
|
