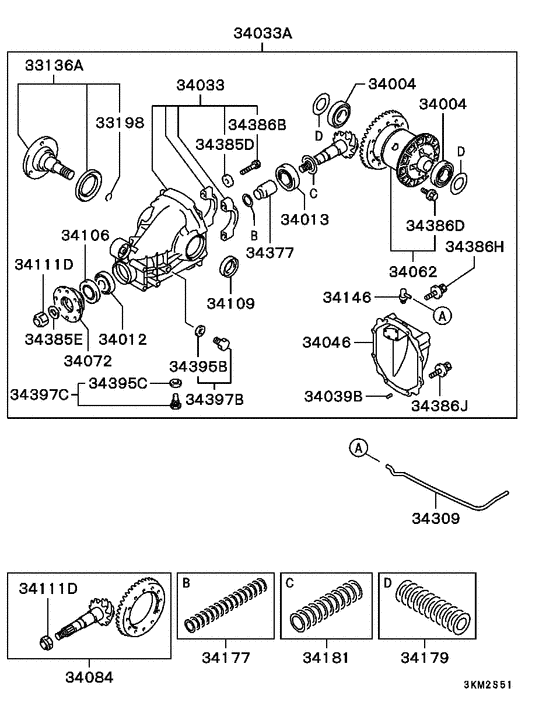

Rear axle differential (ALL) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 1997
- Sales region
- Japan
- Note
- EVOLUTION,5FM/T
- transmission
- 5FM/T
- grade
- EVOLUTION
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33136A
|
33136A
MR350879 SHAFT ASSY, RR AXLE |
MR350879 |
US $117.66 |
||
|
33198
|
33198
MR350882
CLIP, RR AXLE DRIVE SHAFT
|
MR350882 |
— | ||
|
34004
|
34004
MR350884
BEARING, RR DIFF CASE
|
MR350884 |
— | ||
|
34012
|
34012
MB393471 BEARING, FR DIFF DRIVE PINION, RRTaper roller,68.26x22.22-30.16 |
MB393471 |
from US $27.32 |
||
|
34013
|
34013
MB837844 BEARING, RR DIFF DRIVE PINION, RRTaper roller,90.00x35.25-36.51 |
MB837844 |
from US $42.63 |
||
|
34033
|
34033
MR399083 CARRIER, RR DIFF |
MR399083 |
US $618.80 |
||
|
34033A
|
34033A
MR392782 CARRIER ASSY, RR DIFF4.636 hybrid lsd |
MR392782 |
US $4,939.20 |
||
|
34039B
|
34039B
MF472403 PIN, CYLINDER BLOCKDowel,6x14 |
MF472403 |
from US $2.40 |
||
|
34046
|
34046
MR389299 COVER, RR DIFF CARRIER |
MR389299 |
US $104.34 |
||
|
34062
|
34062
MR410945 DIFFERENTIAL KIT, RR LIMITED SLIP |
MR410945 |
US $4,046.40 |
||
|
34072
|
34072
MR377994 FLANGE, RR DIFF COMPANION |
MR377994 |
US $57.46 |
||
|
34084
|
34084
MR124857 GEAR KIT, RR DIFF FINAL DRIVE4.636 |
MR124857 |
US $880.15 |
||
|
34106
|
34106
MB160949
OIL SEAL, RR DIFF DRIVE PINION
|
MB160949 |
— | ||
| replacement | |||||
|
34106
|
34106
MR580530 OIL SEAL, RR DIFF DRIVE PINION |
MR580530 |
from US $6.77 |
||
|
34109
|
34109
MR350883 OIL SEAL, RR DIFF SIDE BEARING |
MR350883 |
from US $11.88 |
||
|
34111D
|
34111D
MB837841 NUT, RR DIFF22 |
MB837841 |
from US $5.66 |
||
|
34146
|
34146
MR367680
PLUG, RR DIFF
|
MR367680 |
— | ||
|
34177
|
34177
MB569391 SHIM SET, FR DIFF DRIVE PINION, FR |
MB569391 |
from US $32.10 |
||
|
34179
|
34179
MR392823 SHIM SET, RR DIFF SIDE BEARING |
MR392823 |
US $133.94 |
||
|
34181
|
34181
MR179440 SHIM SET, RR DIFF DRIVE PINION, RR |
MR179440 |
from US $59.14 |
||
|
34309
|
34309
MR410176 HOSE, RR DIFF BREATHER3x500 |
MR410176 |
US $13.91 |
||
|
34377
|
34377
MB837842 SPACER, RR DIFF PINION BEARING52.50 |
MB837842 |
from US $8.21 |
||
|
34377
|
34377
MB837843 SPACER, RR DIFF PINION BEARING52.84 |
MB837843 |
from US $22.07 |
||
|
34385D
|
34385D
MF450407 WASHERSpring,12 |
MF450407 |
from US $0.84 |
||
|
34385E
|
34385E
MB837840 WASHER, RR DIFF22.5 |
MB837840 |
from US $6.29 |
||
|
34386B
|
34386B
MR276505 BOLT, RR DIFF12x76 |
MR276505 |
US $5.92 |
||
|
34386D
|
34386D
MB161021 BOLT, FR DIFFFlange,12x28 |
MB161021 |
US $5.77 |
||
|
34386H
|
34386H
MF244886 BOLT, CRANKSHAFTWasher assembled,10x40 |
MF244886 |
US $2.81 |
||
|
34386J
|
34386J
MF244882 BOLT, ENG RR MOUNTINGWasher assembled,10x30 |
MF244882 |
from US $1.05 |
||
|
34395B
|
34395B
MF660066 GASKET, PLUGD=16 |
MF660066 |
from US $1.01 |
||
|
34395C
|
34395C
MB001294 GASKET, DRAIN PLUGD=18.2 |
MB001294 |
from US $1.11 |
||
|
34397B
|
34397B
MB001261 PLUG KIT, FR AXLE HOUSING |
MB001261 |
from US $3.08 |
||
|
34397C
|
34397C
MB569390 PLUG KIT, FR DIFF |
MB569390 |
from US $6.14 |
||
