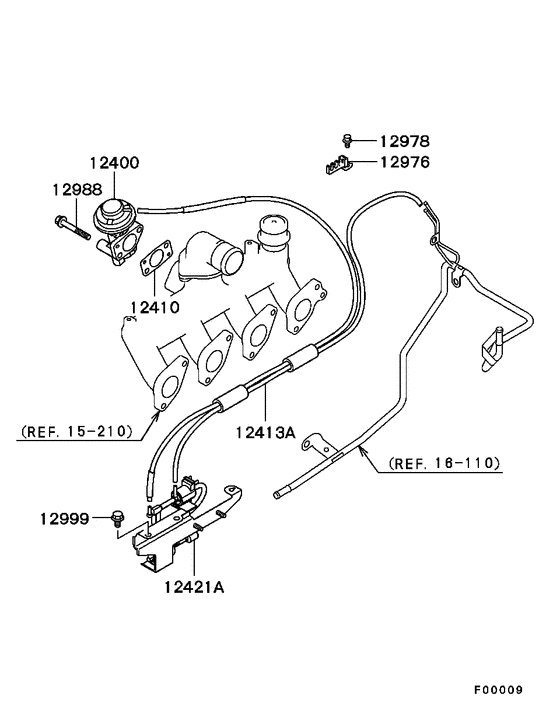

Emission control (-0106.3) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 2000 - 2006
- Sales region
- EUR
- Note
- GLS(NSS4),5FM/T LHD
- transmission
- 5FM/T
- grade
- GLS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12400
|
12400
MD132849 VALVE, EGR |
MD132849 |
US $356.72 |
||
|
12400
|
12400
MR577141 VALVE,EGR |
MR577141 |
US $197.27 |
||
|
12410
|
12410
MD300522 GASKET, EGR VALVE |
MD300522 |
from US $1.81 |
||
|
12413A
|
12413A
MR507406
HOSE ASSY,EMISSION VACUUM CONTROL
|
MR507406 |
— | ||
|
12421A
|
12421A
MR507303
VALVE ASSY,EMISSION SOLENOID
|
MR507303 |
— | ||
|
12421A
|
12421A
MR577080
VALVE ASSY,EMISSION SOLENOID
|
MR577080 |
— | ||
|
12421A
|
12421A
MR577099
VALVE ASSY,EMISSION SOLENOID
|
MR577099 |
— | ||
|
12976
|
12976
MR188703 CLAMP, EMISSION CONTROL EQUIP |
MR188703 |
US $7.40 |
||
|
12978
|
12978
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.68 |
||
|
12988
|
12988
MD075967 BOLT, EGR EQUIPWasher assembled,8x60 |
MD075967 |
US $5.92 |
||
|
12999
|
12999
MF140223 BOLT, CYLINDER HEADFlange,8x16 |
MF140223 |
from US $1.01 |
||
|
15 210
|
Inlet manifold
15 210
|
||||
|
15 210
|
Inlet manifold
15 210
|
||||
|
16 110
|
Alternator & vacuum pump
16 110
|
||||
|
16 110
|
Alternator & vacuum pump
16 110
|
||||
