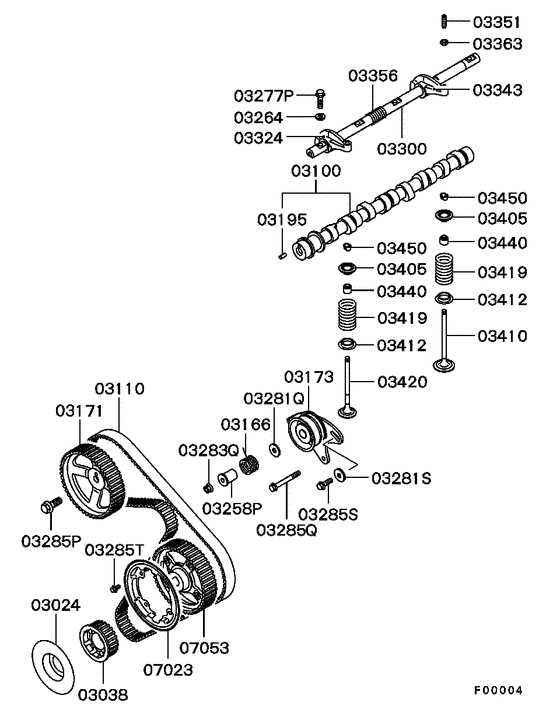

Camshaft & valve (-0106.3) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 2000 - 2006
- Sales region
- EUR
- Note
- GLS(NSS4),5FM/T RHD
- transmission
- 5FM/T
- grade
- GLS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
03024
|
03024
MD050121 FLANGE, CRANKSHAFT SPROCKET |
MD050121 |
from US $6.03 |
||
|
03024
|
03024
MD365955
FLANGE,CRANKSHAFT SPROCKET
|
MD365955 |
— | ||
|
03038
|
03038
MD164831 SPROCKET, CRANKSHAFT CAMSHAFT DRIVE |
MD164831 |
from US $37.67 |
||
|
03100
|
03100
MD302333 CAMSHAFT |
MD302333 |
from US $557.02 |
||
|
03110
|
03110
MD300470 BELT, VALVE TIMING |
MD300470 |
US $66.07 |
||
| replacement | |||||
|
03110
|
03110
MD306981 BELT, VALVE TIMING |
MD306981 |
US $124.49 |
||
|
03166
|
03166
MD140529 SPRING, TIMING BELT TENSIONER |
MD140529 |
from US $3.35 |
||
|
03171
|
03171
MD164832 SPROCKET, CAMSHAFT |
MD164832 |
from US $53.35 |
||
|
03173
|
03173
MD050135 TENSIONER, TIMING BELT |
MD050135 |
from US $53.70 |
||
|
03195
|
03195
MF472403 PIN, CYLINDER BLOCKDowel,6x14 |
MF472403 |
from US $2.34 |
||
|
03258P
|
03258P
MD181379 SPACER, TIMING BELT TRAIN29.3 |
MD181379 |
US $5.92 |
||
|
03264
|
03264
MD000425 WASHER, CYLINDER HEADPlain,8 |
MD000425 |
from US $1.46 |
||
|
03277P
|
03277P
MD050107 BOLT, VALVE GEAR TRAINFlange,8x30 |
MD050107 |
from US $1.76 |
||
|
03281Q
|
03281Q
MF450272 WASHER, TIMING BELT TRAINPlain,8 |
MF450272 |
from US $0.72 |
||
|
03281S
|
03281S
MD140620 WASHER, TIMING BELT TRAINPlain,8 |
MD140620 |
from US $2.37 |
||
|
03283Q
|
03283Q
MF434104 NUT, ROCKER COVERFlange,8 |
MF434104 |
from US $0.55 |
||
|
03285P
|
03285P
MF140285 BOLT, ENG RR PLATEFlange,12x30 |
MF140285 |
from US $1.01 |
||
|
03285Q
|
03285Q
MD050138 BOLT, TIMING BELT TRAINFlange,8x67 |
MD050138 |
from US $1.60 |
||
|
03285S
|
03285S
MF140227 BOLT, ROCKER COVERFlange,8x25 |
MF140227 |
from US $0.96 |
||
|
03285T
|
03285T
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.68 |
||
|
03300
|
03300
MD142361 SHAFT, ROCKER ARM |
MD142361 |
from US $101.92 |
||
|
03324
|
03324
MD352128 ROCKER ARM, EXHAUST VALVE |
MD352128 |
from US $37.40 |
||
|
03343
|
03343
MD352127 ROCKER ARM, INLET VALVE |
MD352127 |
from US $36.17 |
||
|
03351
|
03351
MD180514 ADJUSTING SCREW, ROCKER ARM8x26 |
MD180514 |
from US $5.34 |
||
|
03356
|
03356
MD134369 SPRING, ROCKER SHAFT |
MD134369 |
from US $1.40 |
||
|
03363
|
03363
MD000961 NUT, ROCKER ARM ADJUSTING SCREW LOCKJam,8 |
MD000961 |
from US $0.80 |
||
|
03405
|
03405
MD066498 RETAINER, VALVE SPRING |
MD066498 |
from US $1.68 |
||
|
03410
|
03410
MD198404 VALVE, INLET |
MD198404 |
from US $49.22 |
||
|
03410
|
03410
MD373236
VALVE,INLET
|
MD373236 |
— | ||
|
03412
|
03412
MD000507 SEAT, VALVE SPRING |
MD000507 |
from US $1.40 |
||
|
03419
|
03419
MD195282 SPRING, INLET & EXHAUST VALVE |
MD195282 |
US $4.38 |
||
|
03420
|
03420
MD198406 Valve, Exhaust |
MD198406 |
from US $48.85 |
||
|
03420
|
03420
MD373237
Valve,exhaust
|
MD373237 |
— | ||
|
03440
|
03440
MD197467 SEAL, VALVE STEMRubber |
MD197467 |
from US $4.70 |
||
|
03450
|
03450
MD061895 LOCK, VALVE SPRING RETAINER |
MD061895 |
from US $2.24 |
||
|
07023
|
07023
MD050134 FLANGE, INJECTION PUMP SPROCKET |
MD050134 |
from US $9.91 |
||
|
07053
|
07053
MD164833 SPROCKET, INJECTION PUMP |
MD164833 |
from US $56.09 |
||
