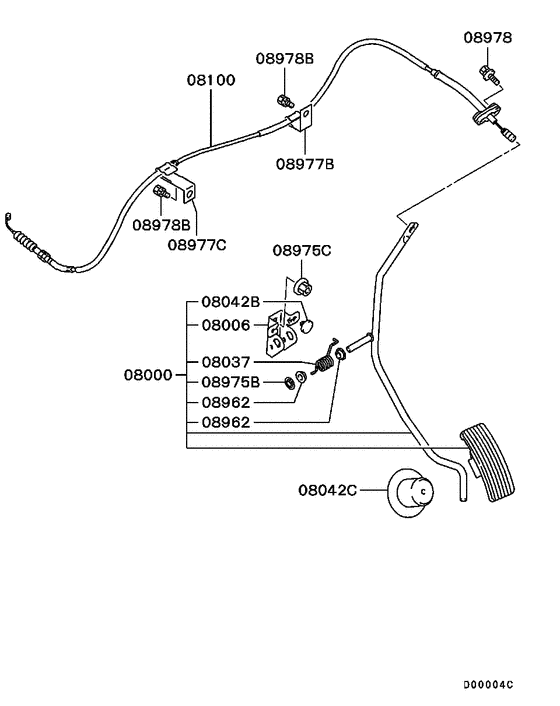

Engine control (RHD..CABLE TYPE) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 2000 - 2006
- Sales region
- EUR
- Note
- GLS(NSS4),5FM/T RHD
- transmission
- 5FM/T
- grade
- GLS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
08000
|
08000
MR407339 PEDAL, ACCEL |
MR407339 |
US $41.44 |
||
|
08000
|
08000
MR475079 PEDAL, ACCEL |
MR475079 |
US $172.37 |
||
|
08006
|
08006
MR307879 BRACKET, ACCEL PEDAL ARM |
MR307879 |
US $5.62 |
||
|
08037
|
08037
MR307880 SPRING, ACCEL PEDAL ARM RETURN |
MR307880 |
US $3.55 |
||
|
08037
|
08037
MR449164 SPRING, ACCEL PEDAL ARM RETURN |
MR449164 |
US $3.26 |
||
|
08042B
|
08042B
MR235515 STOPPER, CLUTCH PEDAL |
MR235515 |
US $4.65 |
||
|
08042C
|
08042C
MN103774 STOPPER, ACCEL PEDAL ARM |
MN103774 |
from US $2.13 |
||
|
08042C
|
08042C
MR493907 STOPPER, ACCEL PEDAL ARM |
MR493907 |
US $3.11 |
||
|
08100
|
08100
MR418488
CABLE,ACCEL
|
MR418488 |
— | ||
| replacement | |||||
|
08100
|
08100
1610A027
CABLE,ACCEL
|
1610A027 |
— | ||
|
08962
|
08962
MR307081 BUSHING, ACCEL CONTROL EQUIP |
MR307081 |
US $2.87 |
||
|
08975B
|
08975B
MF430722 NUT, CARB INR |
MF430722 |
US $1.92 |
||
|
08975B
|
08975B
MR307082 SNAP RING, ACCEL CONTROL EQUIP |
MR307082 |
US $2.05 |
||
|
08975C
|
08975C
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
08977B
|
08977B
MR418456 CLIP, ACCEL CONTROL EQUIP |
MR418456 |
US $5.03 |
||
|
08977C
|
08977C
MR418458
CLIP,ACCEL CONTROL EQUIP
|
MR418458 |
— | ||
|
08978
|
08978
MF243603 BOLT, ACCEL CONTROL EQUIPWasher assembled,5x14 |
MF243603 |
US $1.18 |
||
|
08978
|
08978
MF247228 BOLT, FUEL LINEWasher assembled,6x25 |
MF247228 |
from US $0.99 |
||
|
08978B
|
08978B
MF240050 BOLT, ROCKER COVERWasher assembled,8x14 |
MF240050 |
from US $1.07 |
||
