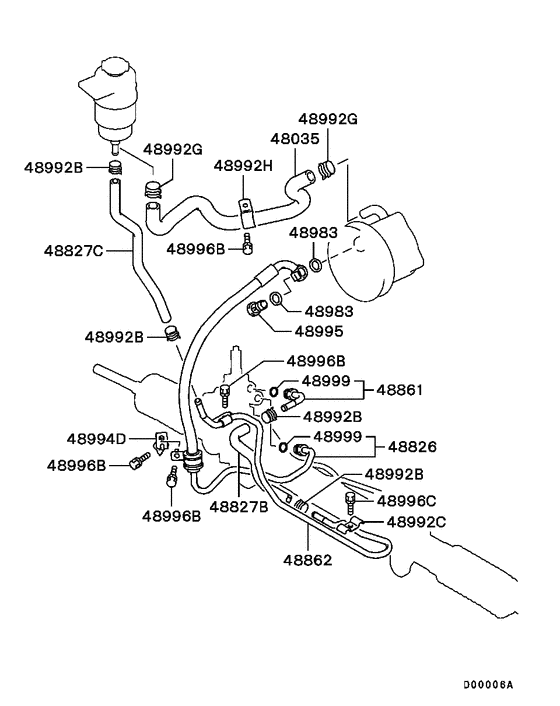

Power steering oil line (RHD) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 2000 - 2006
- Sales region
- EUR
- Note
- GLS(NSS4),5FM/T RHD
- transmission
- 5FM/T
- grade
- GLS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48035
|
48035
MR418483
HOSE,P/S OIL PUMP SUCTION
|
MR418483 |
— | ||
|
48826
|
48826
4455A220
HOSE,P/S OIL PRESSURE
|
4455A220 |
— | ||
|
48826
|
48826
MR455484
HOSE,P/S OIL PRESSURE
|
MR455484 |
— | ||
| replacement | |||||
|
48826
|
48826
4455A220
HOSE,P/S OIL PRESSURE
|
4455A220 |
— | ||
|
48827B
|
48827B
MR418430 HOSE, P/S OIL RETURN |
MR418430 |
from US $10.26 |
||
|
48827C
|
48827C
MR455487
HOSE,P/S OIL RETURN
|
MR455487 |
— | ||
|
48861
|
48861
MR418428 TUBE, P/S OIL RETURN |
MR418428 |
from US $5.87 |
||
|
48862
|
48862
MR455486
TUBE,P/S OIL COOLER
|
MR455486 |
— | ||
|
48983
|
48983
MF660066 GASKET, PLUGD=16 |
MF660066 |
from US $1.01 |
||
|
48992B
|
48992B
MR133826 CLIP, P/S OIL LINE18.1 |
MR133826 |
from US $1.93 |
||
|
48992C
|
48992C
MB192958 CLIP, ENG OIL COOLER LINE |
MB192958 |
US $7.25 |
||
|
48992G
|
48992G
MS660171 CLAMP, P/S OIL PUMPD=20.8 |
MS660171 |
from US $1.33 |
||
|
48992H
|
48992H
MF477029 CLIP, ENG AIR INTAKE LINED=25 |
MF477029 |
US $1.78 |
||
|
48994D
|
48994D
MR455489
BRACKET,P/S OIL LINE
|
MR455489 |
— | ||
|
48995
|
48995
MR491471 EYEBOLT, P/S OIL LINE |
MR491471 |
US $9.99 |
||
|
48996B
|
48996B
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
48996C
|
48996C
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
48996C
|
48996C
MF240053 BOLT, CYLINDER HEADWasher assembled,8x20 |
MF240053 |
from US $1.01 |
||
|
48999
|
48999
MB166042
O-RING, STEERING GEAR INR
|
MB166042 |
— | ||
| replacement | |||||
|
48999
|
48999
MB950259 O-RING, STEERING GEAR INR |
MB950259 |
from US $1.31 |
||
