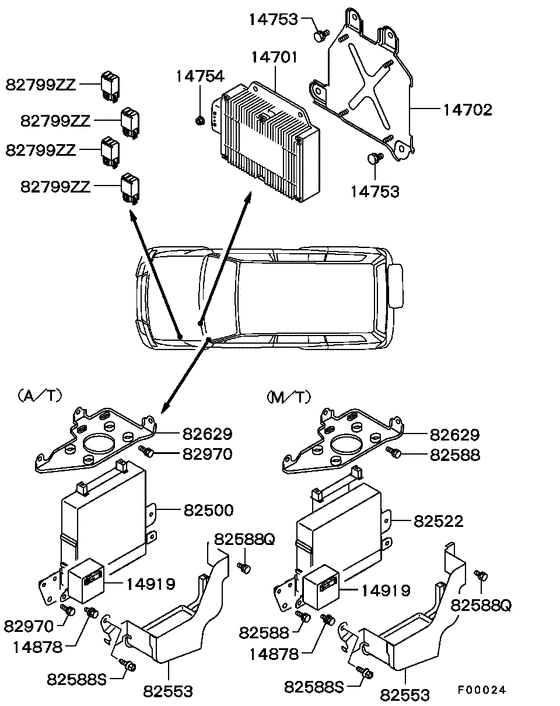

Electrical control (RHD (CONTROL UNIT ETC.)) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 2000 - 2001
- Sales region
- EUR
- Note
- GLS(NSS4),5FM/T RHD
- transmission
- 5FM/T
- grade
- GLS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14701
|
14701
MD346802 DRIVE UNIT, FUEL INJECTOR |
MD346802 |
US $1,456.24 |
||
|
14702
|
14702
MD365100 BRACKET, FUEL INJECTOR DRIVE UNIT |
MD365100 |
US $37.74 |
||
|
14753
|
14753
MF241250 BOLT, ELECTRIC FUEL PUMPWasher assembled,8x14 |
MF241250 |
US $2.46 |
||
|
14754
|
14754
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
14878
|
14878
MF244823 BOLT, 6x14Washer assembled,6x14 |
MF244823 |
US $3.01 |
||
|
14919
|
14919
MD369969
RELAY,ENG OIL LEVEL
|
MD369969 |
— | ||
|
82522
|
82522
MD369225
CONTROL UNIT,ENG
|
MD369225 |
— | ||
|
82553
|
82553
MR514487
COVER,CONTROL UNIT
|
MR514487 |
— | ||
|
82588
|
82588
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
82588Q
|
82588Q
MF240023 BOLT, FUEL TANKWasher assembled,6x12 |
MF240023 |
from US $0.60 |
||
|
82588S
|
82588S
MR560218 BOLT, ENG CONTROL UNIT |
MR560218 |
US $3.15 |
||
|
82629
|
82629
MD366413 BRACKET, ENG CONTROL MODULATOR |
MD366413 |
US $12.43 |
||
|
82799ZZ
|
82799ZZ
MR312504 RELAY, ENG CONTROL |
MR312504 |
from US $26.89 |
||
|
82970
|
82970
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
