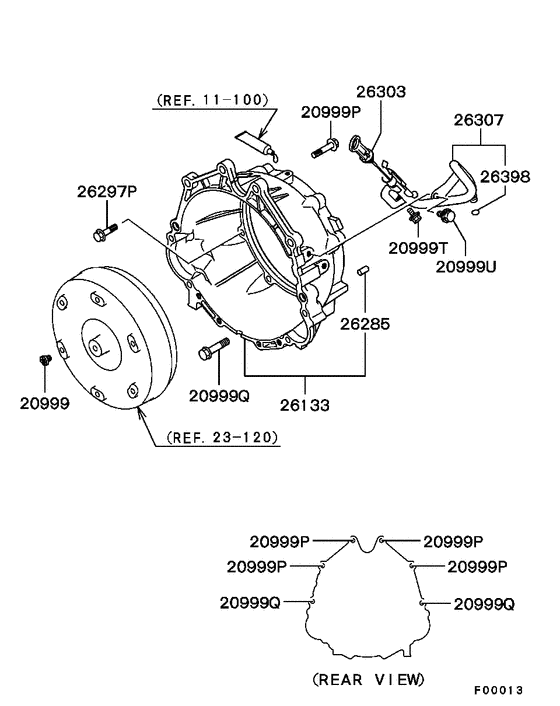

A/t case (ALL (HOUSING,CONNECTING PARTS)) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 2006
- Sales region
- EUR
- Note
- GLS(NSS4/EURO2),4FA/T LHD
- transmission
- 4FA/T
- grade
- GLS
- body
- LONG WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20999
|
20999
MD713228 BOLT, T/M CONNECTING |
MD713228 |
from US $5.97 |
||
|
20999P
|
20999P
MF301372 BOLT, T/M CONNECTINGWasher assembled,12x40 |
MF301372 |
US $3.69 |
||
|
20999Q
|
20999Q
MF140292 BOLT, T/M CONNECTINGFlange,12x55 |
MF140292 |
US $5.34 |
||
|
20999T
|
20999T
MF244849 BOLT, ENG MOUNTINGWasher assembled,8x16 |
MF244849 |
US $2.60 |
||
|
20999U
|
20999U
MF244878 BOLT, CYLINDER HEADWasher assembled,10x20 |
MF244878 |
from US $1.50 |
||
|
26133
|
26133
MR967835 HOUSING, A/T TORQUE CONVERTER |
MR967835 |
US $446.99 |
||
|
26285
|
26285
MF472405 PIN, CYLINDER BLOCKDowel,10x20 |
MF472405 |
from US $1.31 |
||
|
26297P
|
26297P
MF140266 BOLT, TIMING BELT TRAINFlange,10x40 |
MF140266 |
from US $1.48 |
||
|
26303
|
26303
MR593744 GAUGE, A/T OIL LEVEL |
MR593744 |
from US $30.99 |
||
|
26307
|
26307
MR483317 TUBE, A/T OIL FILLER |
MR483317 |
US $63.64 |
||
|
26398
|
26398
MD707200
O-RING, OIL FILTER
|
MD707200 |
— | ||
| replacement | |||||
|
26398
|
26398
MR486844 O-RING, A/T CASE9.8 |
MR486844 |
from US $1.25 |
||
|
11 100
|
Liquid gasket
11 100
|
||||
|
23 120
|
A/t tor-con & oil pump
23 120
|
||||
