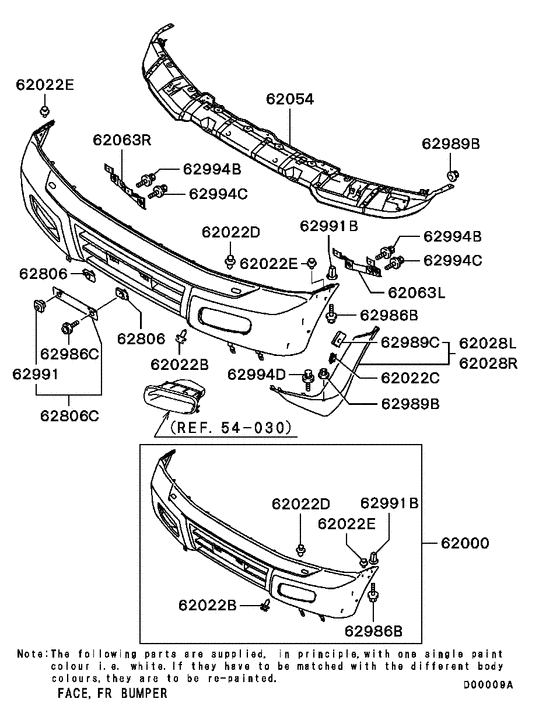

Front bumper & support (ALL) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 2000 - 2001
- Sales region
- PUERTO RICO&GUAM
- Note
- SR(NSS4),4FA/T PUERTO RICO
- transmission
- 4FA/T
- grade
- SR
- body
- LONG WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62000
|
62000
MR508163
FACE KIT,FR BUMPER
|
MR508163 |
— | ||
|
62000
|
62000
MR508164
FACE KIT, FR BUMPER
|
MR508164 |
— | ||
|
62000
|
62000
MR508812
FACE KIT, FR BUMPER
|
MR508812 |
— | ||
|
62000
|
62000
MR508813
FACE KIT, FR BUMPER
|
MR508813 |
— | ||
|
62000
|
62000
MR508814
FACE KIT, FR BUMPER
|
MR508814 |
— | ||
|
62022B
|
62022B
MR200300 CLIP, FR BUMPER |
MR200300 |
from US $1.37 |
||
|
62022C
|
62022C
MR415259 CLIP, RR MUD GUARD2.5 |
MR415259 |
from US $2.03 |
||
|
62022C
|
62022C
MR960618 CLIP, FR BUMPER2.5 |
MR960618 |
from US $3.42 |
||
|
62022D
|
62022D
MB879499 CLIP, HEATER DUCT9 |
MB879499 |
US $3.01 |
||
|
62022E
|
62022E
MR288150 CLIP, RR BUMPER |
MR288150 |
from US $0.99 |
||
|
62028L
|
62028L
MR520207
EXTENSION,FR BUMPER,LH
|
MR520207 |
— | ||
|
62028L
|
62028L
MR520209 EXTENSION, FR BUMPER, LH |
MR520209 |
from US $260.48 |
||
|
62028L
|
62028L
MR612083 EXTENSION, FR BUMPER, LH |
MR612083 |
US $260.48 |
||
|
62028L
|
62028L
MR612084 EXTENSION, FR BUMPER, LH |
MR612084 |
US $260.48 |
||
|
62028L
|
62028L
MR612085 EXTENSION, FR BUMPER, LH |
MR612085 |
US $260.48 |
||
|
62028R
|
62028R
MR520208
EXTENSION,FR BUMPER,RH
|
MR520208 |
— | ||
|
62028R
|
62028R
MR520210 EXTENSION, FR BUMPER, RH |
MR520210 |
from US $260.48 |
||
|
62028R
|
62028R
MR612086 EXTENSION, FR BUMPER, RH |
MR612086 |
US $260.48 |
||
|
62028R
|
62028R
MR612087 EXTENSION, FR BUMPER, RH |
MR612087 |
US $260.48 |
||
|
62028R
|
62028R
MR612088 EXTENSION, FR BUMPER, RH |
MR612088 |
US $260.48 |
||
|
62054
|
62054
MR437253 REINFORCEMENT, FR BUMPER |
MR437253 |
from US $190.36 |
||
|
62063L
|
62063L
MR437261 STAY, FR BUMPER, LH |
MR437261 |
US $27.38 |
||
|
62063R
|
62063R
MR437262 STAY, FR BUMPER, RH |
MR437262 |
from US $26.11 |
||
|
62806
|
62806
MB325163 BRACKET, FR LICENSE PLATE |
MB325163 |
from US $4.21 |
||
|
62806C
|
62806C
MR492474
BRACKET,FR LICENSE PLATE
|
MR492474 |
— | ||
|
62986B
|
62986B
MS452348 SCREW, STEERING COLUMN |
MS452348 |
from US $2.34 |
||
|
62986C
|
62986C
MF350792 SCREW, ACCEL CONTROL EQUIPWasher assembled,6x16 |
MF350792 |
US $2.87 |
||
|
62989B
|
62989B
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
62989C
|
62989C
MC145377
NUT, FR BUMPER
|
MC145377 |
— | ||
| replacement | |||||
|
62989C
|
62989C
MR971296 NUT, FR BUMPERSpring,6 |
MR971296 |
US $2.19 |
||
|
62989C
|
62989C
MR971296 NUT, FR BUMPERSpring,6 |
MR971296 |
US $2.19 |
||
|
62991
|
62991
MU480007 GROMMET, RR BODY GATE6 |
MU480007 |
US $4.51 |
||
|
62991B
|
62991B
MU480035 GROMMET, ABS CONTROL EQUIPScrew,6 |
MU480035 |
from US $0.78 |
||
|
62994B
|
62994B
MS240141 BOLT, FUEL FILLER LID PANELWasher assembled,6x16 |
MS240141 |
from US $1.25 |
||
|
62994C
|
62994C
MS240156 BOLTWasher assembled,6x20 |
MS240156 |
from US $0.78 |
||
|
62994C
|
62994C
MS240602 BOLT, FR BUMPERWasher assembled,6x20 |
MS240602 |
from US $0.98 |
||
|
62994D
|
62994D
MS240142 BOLT, FUEL TANKWasher assembled,6x20 |
MS240142 |
from US $0.96 |
||
|
