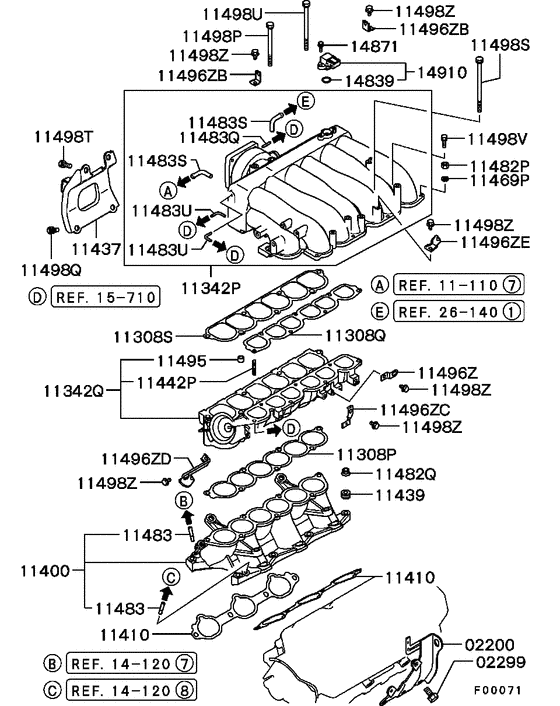

Inlet manifold (-0307.3) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 2004 - 2005
- Sales region
- MMNA
- Note
- LS(NSS4),S5FA/T FED
- transmission
- S5FA/T
- grade
- LS
- body
- LONG WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02200
|
02200
MN122031 ENGINE HANGER |
MN122031 |
US $34.04 |
||
|
02299
|
02299
MF241280 BOLT, RR SEATWasher assembled,10x20 |
MF241280 |
from US $0.98 |
||
|
11308P
|
11308P
MR561584 GASKET, ENG AIR INTAKE SURGE TANK |
MR561584 |
from US $5.64 |
||
|
11308Q
|
11308Q
MR561581 GASKET, ENG AIR INTAKE SURGE TANK |
MR561581 |
from US $8.42 |
||
|
11308S
|
11308S
MR561582 GASKET, ENG AIR INTAKE SURGE TANK |
MR561582 |
from US $9.11 |
||
|
11342P
|
11342P
MN135872
TANK,ENG AIR INTAKE SURGE
|
MN135872 |
— | ||
|
11342Q
|
11342Q
MN135871 TANK, ENG AIR INTAKE SURGE |
MN135871 |
from US $636.60 |
||
|
11400
|
11400
MR561580 MANIFOLD, INLET |
MR561580 |
US $440.75 |
||
|
11410
|
11410
MR561678 GASKET, INLET MANIFOLD |
MR561678 |
from US $7.31 |
||
|
11437
|
11437
MR561938 STAY, INLET MANIFOLD |
MR561938 |
US $36.26 |
||
|
11439
|
11439
MD307210 SPRING, INLET MANIFOLD DISC |
MD307210 |
US $4.65 |
||
|
11442P
|
11442P
MS401104 STUD, INLET MANIFOLD6x20 |
MS401104 |
from US $3.11 |
||
|
11469P
|
11469P
MF450494 WASHER, AIR CLEANERSpring,6 |
MF450494 |
US $1.78 |
||
|
11482P
|
11482P
MF430064 NUT, AIR CLEANER6 |
MF430064 |
US $1.63 |
||
|
11482Q
|
11482Q
1540A130 NUT, INLET MANIFOLDFlange,8 |
1540A130 |
US $1.78 |
||
|
11482Q
|
11482Q
MD090676 NUT, TIMING BELT TRAINFlange,8 |
MD090676 |
US $3.97 |
||
|
11482Q
|
11482Q
MN156726 NUT, INLET MANIFOLDFlange,8 |
MN156726 |
US $1.48 |
||
|
11483
|
11483
MD305458 NIPPLE, INLET MANIFOLD6 |
MD305458 |
US $4.59 |
||
|
11483Q
|
11483Q
MD108999 NIPPLE, INLET MANIFOLD4 |
MD108999 |
US $4.59 |
||
|
11483S
|
11483S
MD109597 NIPPLE, INLET MANIFOLD8 |
MD109597 |
US $6.51 |
||
|
11483U
|
11483U
MD109598 NIPPLE, INLET MANIFOLD4 |
MD109598 |
US $9.03 |
||
|
11495
|
11495
MS471104 BUSHING, CYLINDER HEAD8x9 |
MS471104 |
from US $1.79 |
||
|
11496Z
|
11496Z
MD349281 BRACKET, EMISSION CONTROL EQUIP |
MD349281 |
US $2.60 |
||
|
11496ZB
|
11496ZB
MD195356 BRACKET, ENG HARNESS SUPPORT |
MD195356 |
US $2.46 |
||
|
11496ZC
|
11496ZC
MD348864 BRACKET, INLET MANIFOLD |
MD348864 |
US $6.81 |
||
|
11496ZD
|
11496ZD
MR507291 BRACKET, EMISSION CONTROL EQUIP |
MR507291 |
US $7.84 |
||
|
11496ZE
|
11496ZE
MR560892 BRACKET, INLET MANIFOLD |
MR560892 |
US $4.44 |
||
|
11498P
|
11498P
MF241272 BOLT, CARBWasher assembled,8x100 |
MF241272 |
US $4.38 |
||
|
11498Q
|
11498Q
MF241280 BOLT, RR SEATWasher assembled,10x20 |
MF241280 |
from US $0.98 |
||
|
11498S
|
11498S
MD195687 BOLT, INLET MANIFOLDWasher assembled,8x130 |
MD195687 |
from US $3.47 |
||
|
11498T
|
11498T
MF241252 BOLT, CARBWasher assembled,8x18 |
MF241252 |
from US $0.96 |
||
|
11498U
|
11498U
MD347641 BOLT, INLET MANIFOLDWasher assembled,8x160 |
MD347641 |
from US $4.54 |
||
|
11498V
|
11498V
MF241228 BOLT, ENG OIL PUMPWasher assembled,6x22 |
MF241228 |
US $2.05 |
||
|
11498Z
|
11498Z
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.78 |
||
|
14839
|
14839
MD632057 O-RING, ENG CONTROL PRESSURE SENSOR |
MD632057 |
from US $2.22 |
||
|
14871
|
14871
MF244805 BOLT, ENG CONTROL PRESSURE SENSORWasher assembled,5x18 |
MF244805 |
from US $1.33 |
||
|
14910
|
14910
MD305600 SENSOR, INLET MANIFOLD DIFF PRESSURE |
MD305600 |
from US $292.03 |
||
|
