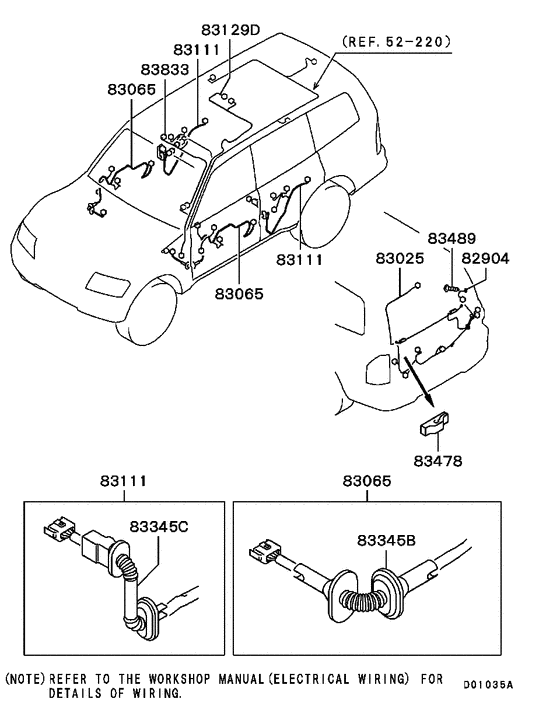

Wiring & attaching parts (WIRING HARNESS..AROUND DOOR,TAILGATE) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 2004 - 2005
- Sales region
- MMNA
- Note
- LS(NSS4),S5FA/T FED
- transmission
- S5FA/T
- grade
- LS
- body
- LONG WAGON
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82904
|
82904
MB697385 CABLE, DEFOGGER |
MB697385 |
US $4.74 |
||
|
83025
|
83025
8512A436
HARNESS,BACK DOOR
|
8512A436 |
— | ||
|
83025
|
83025
MR517660
HARNESS,BACK DOOR
|
MR517660 |
— | ||
|
83065
|
83065
8512A113
HARNESS,FR DOOR
|
8512A113 |
— | ||
| replacement | |||||
|
83065
|
83065
8512A306
HARNESS,FR DOOR
|
8512A306 |
— | ||
|
83065
|
83065
8512A297
HARNESS,FR DOOR
|
8512A297 |
— | ||
|
83065
|
83065
8512A306
HARNESS,FR DOOR
|
8512A306 |
— | ||
|
83111
|
83111
8512A264
HARNESS,RR DOOR
|
8512A264 |
— | ||
|
83111
|
83111
8512A269
HARNESS,RR DOOR
|
8512A269 |
— | ||
|
83345B
|
83345B
MR459937 GROMMET, DOOR WIRING62x31(body)-58x38(door) |
MR459937 |
US $24.62 |
||
|
83345C
|
83345C
MR459938 GROMMET, DOOR WIRING58x27(body)-68x27(door) |
MR459938 |
US $22.20 |
||
|
83478
|
83478
MR515713 CUSHION, RR WINDOW WASHER |
MR515713 |
US $2.81 |
||
|
83489
|
83489
MF453045 SCREW, FUEL FILLER LID LOCKINGWasher assembled,6x12 |
MF453045 |
US $2.19 |
||
|
52 220
|
Headlining
52 220
|
||||
|
52 220
|
Headlining
52 220
|
||||
