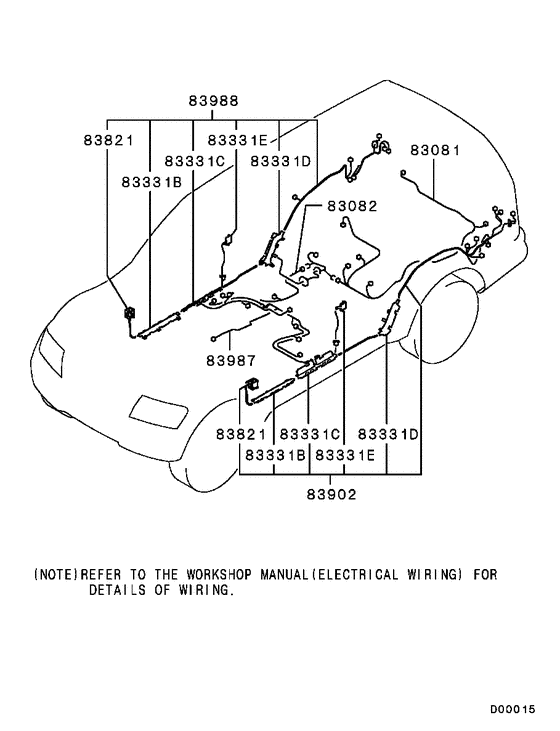

Wiring & attaching parts (WIRING HARNESS..AROUND FLOOR) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 2002 - 2003
- Sales region
- MMNA
- Note
- 20TH-LIMITED(NSS4),S5FA/T FED
- transmission
- S5FA/T
- grade
- 20TH-LIMITED
- body
- LONG WAGON
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83081
|
83081
MN188080
HARNESS,CHASSIS FRAME
|
MN188080 |
— | ||
|
83081
|
83081
MR588115
HARNESS,CHASSIS FRAME
|
MR588115 |
— | ||
|
83082
|
83082
MR517639
HARNESS, FUEL GAUGE UNIT
|
MR517639 |
— | ||
|
83331B
|
83331B
MR459955 PROTECTOR, HARNESSSide sill(fr,lh/rh) |
MR459955 |
US $12.14 |
||
|
83331C
|
83331C
MR459959 PROTECTOR, HARNESSSide sill(rr,lh/rh) |
MR459959 |
US $13.02 |
||
|
83331D
|
83331D
MR461356 PROTECTOR, HARNESSQuarter(rh) |
MR461356 |
US $14.36 |
||
|
83331D
|
83331D
MR538996 PROTECTOR, HARNESS |
MR538996 |
US $6.07 |
||
|
83331E
|
83331E
MR482387 PROTECTOR, HARNESSCenter pillar(lh/rh) |
MR482387 |
US $5.92 |
||
|
83821
|
83821
MU803500 CONNECTOR, JUNCTION BLOCK |
MU803500 |
US $9.62 |
||
|
83902
|
83902
MN138079
HARNESS,FLOOR
|
MN138079 |
— | ||
|
83987
|
83987
MR965582
HARNESS,AIR BAG
|
MR965582 |
— | ||
|
83988
|
83988
MN138087
HARNESS,FLOOR ASSIST SIDE
|
MN138087 |
— | ||
|
83988
|
83988
MN138089
HARNESS,FLOOR ASSIST SIDE
|
MN138089 |
— |
