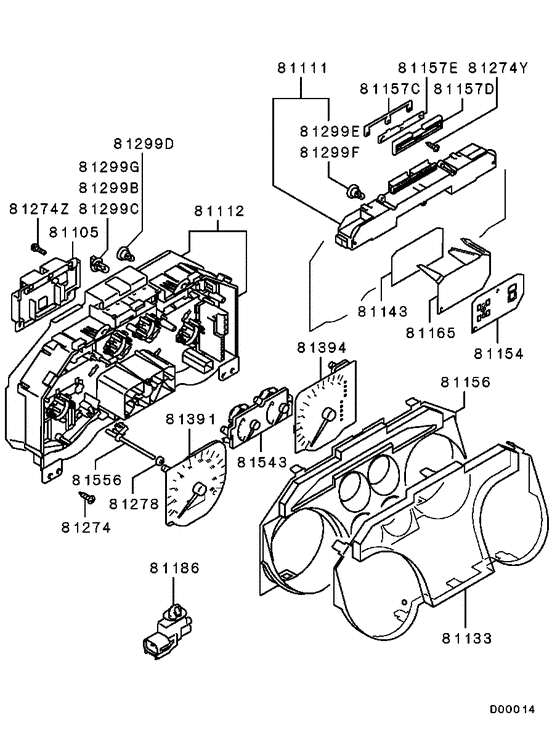

Meter,gauge & clock (COMBINATION METER) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 2002 - 2003
- Sales region
- PUERTO RICO&GUAM
- Note
- SR(NSS4),S5FA/T PUERTO RICO
- transmission
- S5FA/T
- grade
- SR
- body
- LONG WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81105
|
81105
8100A207
BOARD,INSTRUMENT PANEL PRINTED CIRCUIT
|
8100A207 |
— | ||
|
81105
|
81105
MR532787
BOARD,INSTRUMENT PANEL PRINTED CIRCUIT
|
MR532787 |
— | ||
|
81111
|
81111
MR975136
CASE,COMBINATION METER INDICATOR
|
MR975136 |
— | ||
|
81112
|
81112
8100A205
CASE, COMBINATION METER
|
8100A205 |
— | ||
|
81112
|
81112
MR962615 CASE, COMBINATION METER |
MR962615 |
US $161.32 |
||
|
81133
|
81133
MR506539 GLASS, COMBINATION METER |
MR506539 |
US $79.34 |
||
|
81143
|
81143
MN188351
LENS,COMBINATION METER INDICATOR
|
MN188351 |
— | ||
|
81143
|
81143
MR962617 LENS, COMBINATION METER INDICATOR |
MR962617 |
US $11.76 |
||
|
81143
|
81143
MR975316
LENS, COMBINATION METER INDICATOR
|
MR975316 |
— | ||
|
81154
|
81154
MN188350
PLATE,COMBINATION METER INDICATOR
|
MN188350 |
— | ||
|
81154
|
81154
MR962618 PLATE, COMBINATION METER INDICATOR |
MR962618 |
US $13 |
||
|
81156
|
81156
MR506540 PLATE, COMBINATION METER WINDOW |
MR506540 |
US $54.76 |
||
|
81157C
|
81157C
MR506548 PLATE, COMBINATION METER |
MR506548 |
US $4.24 |
||
|
81157D
|
81157D
MR506549 PLATE, COMBINATION METER |
MR506549 |
US $6.57 |
||
|
81157E
|
81157E
MR506550 PLATE, COMBINATION METER |
MR506550 |
US $4.24 |
||
|
81165
|
81165
MR962616 PRISM, COMBINATION METER INDICATOR |
MR962616 |
US $13 |
||
|
81274
|
81274
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
81274Y
|
81274Y
MR240173 SCREW, INSTRUMENT PANEL METER |
MR240173 |
US $2.46 |
||
|
81274Z
|
81274Z
MR444555 SCREW, INSTRUMENT PANEL METER |
MR444555 |
US $2.46 |
||
|
81278
|
81278
8150A002 GROMMET, INSTRUMENT PANEL METER |
8150A002 |
US $2.87 |
||
|
81278
|
81278
MR444546 GROMMET, INSTRUMENT PANEL METER |
MR444546 |
US $2.66 |
||
|
81299B
|
81299B
MR444537 BULB, INSTRUMENT PANEL METER14v-3w |
MR444537 |
from US $4.17 |
||
|
81299C
|
81299C
MR444536 BULB, INSTRUMENT PANEL METER |
MR444536 |
from US $3.67 |
||
|
81299D
|
81299D
MR506551 BULB, INSTRUMENT PANEL METER14v-1.12w |
MR506551 |
from US $3.49 |
||
|
81299E
|
81299E
MR506552 BULB, INSTRUMENT PANEL METER14v-0.84w |
MR506552 |
from US $3.61 |
||
|
81299F
|
81299F
MR532786 BULB, INSTRUMENT PANEL METER14v-0.7w |
MR532786 |
US $5.47 |
||
|
81391
|
81391
8105A013
Speedometer
|
8105A013 |
— | ||
|
81391
|
81391
MN138722
Speedometer
|
MN138722 |
— | ||
|
81391
|
81391
MN188352
Speedometer
|
MN188352 |
— | ||
|
81394
|
81394
8108A002
TACHOMETER
|
8108A002 |
— | ||
|
81394
|
81394
MN138725 TACHOMETER |
MN138725 |
US $121.36 |
||
|
81394
|
81394
MN188354
TACHOMETER
|
MN188354 |
— | ||
|
81543
|
81543
8141A002
GAUGE,FUEL & WATER TEMPERATURE
|
8141A002 |
— | ||
|
81543
|
81543
MN138732 GAUGE, FUEL & WATER TEMPERATURE |
MN138732 |
from US $119.11 |
||
|
81543
|
81543
MN188355
GAUGE,FUEL & WATER TEMPERATURE
|
MN188355 |
— | ||
|
81556
|
81556
MR506541 KNOB, TRIP METER |
MR506541 |
US $4.38 |
