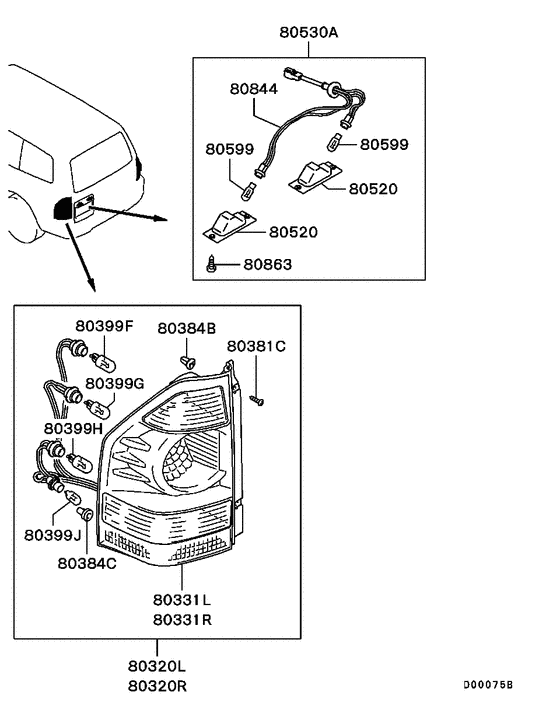

Rear exterior lamp (REAR COMBINATION,LICENSE PLATE LAMP) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 2002 - 2006
- Sales region
- PUERTO RICO&GUAM
- Note
- LTD(NSS4),S5FA/T FED
- transmission
- S5FA/T
- grade
- LTD
- body
- LONG WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80320L
|
80320L
MN133767
LAMP KIT,COMBINATION,RR LH
|
MN133767 |
— | ||
|
80320R
|
80320R
MN133768
LAMP KIT,COMBINATION,RR RH
|
MN133768 |
— | ||
|
80331L
|
80331L
MN117805
LAMP UNIT,COMBINATION,RR LH
|
MN117805 |
— | ||
|
80331R
|
80331R
MN117804
LAMP UNIT,COMBINATION,RR RH
|
MN117804 |
— | ||
|
80381C
|
80381C
MF453093 SCREW, FUEL FILLER LID LOCKINGTapping,5x16 |
MF453093 |
from US $1.68 |
||
|
80381C
|
80381C
MF453273 SCREW, SCUFF PLATETapping,5x16 |
MF453273 |
from US $1.54 |
||
|
80381C
|
80381C
MU461033 SCREW, TAIL LAMPTapping,5x16 |
MU461033 |
from US $1.74 |
||
|
80384B
|
80384B
MU480009 GROMMET, BODY WIRING5 |
MU480009 |
from US $1.31 |
||
|
80384C
|
80384C
MU000613 GROMMET, TAIL LAMP |
MU000613 |
from US $1.27 |
||
|
80384C
|
80384C
MU810528 GROMMET, TAIL LAMP |
MU810528 |
from US $1.60 |
||
|
80399F
|
80399F
MS820050 BULB, HEADLAMP12v-21w |
MS820050 |
from US $5.36 |
||
|
80399G
|
80399G
MS820027 BULB, TAIL LAMP12v-21/5w |
MS820027 |
from US $2.09 |
||
|
80399H
|
80399H
MS820026 BULB, TAIL LAMP12v-21w |
MS820026 |
from US $1.46 |
||
|
80399J
|
80399J
MS820090 BULB (12V, 5W)12v-5w |
MS820090 |
from US $2.44 |
||
|
80520
|
80520
MB859364 LAMP UNIT, LICENSE PLATE |
MB859364 |
US $15.73 |
||
|
80530A
|
80530A
MR441889 LAMP ASSY, LICENSE PLATE12v-5w |
MR441889 |
US $50.32 |
||
|
80599
|
80599
MS820090 BULB (12V, 5W)12v-5w |
MS820090 |
from US $2.44 |
||
|
80844
|
80844
MR442117 SOCKET, LICENSE PLATE LAMP |
MR442117 |
US $28.04 |
||
|
80863
|
80863
MR221703 SCREW, LICENSE PLATE LAMPTapping,4x14 |
MR221703 |
US $2.60 |
