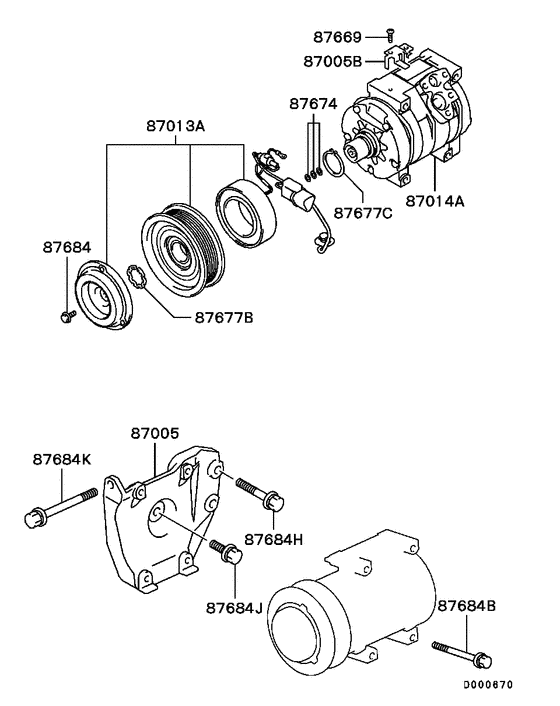

A/c condenser, piping (COMPRESSOR,BRACKET) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 2002 - 2006
- Sales region
- MMNA
- Note
- LTD(NSS4),S5FA/T FED
- transmission
- S5FA/T
- grade
- LTD
- body
- LONG WAGON
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87005
|
87005
MR398429
BRACKET, A/C COMPRESSOR
|
MR398429 |
— | ||
|
87005B
|
87005B
MR500875
BRACKET, A/C COMPRESSOR
|
MR500875 |
— | ||
|
87013A
|
87013A
MR568290
CLUTCH ASSY, A/C COMPRESSOR
|
MR568290 |
— | ||
|
87014A
|
87014A
MR500877
COMPRESSOR ASSY, A/C
|
MR500877 |
— | ||
| replacement | |||||
|
87014A
|
87014A
4472800070
COMPRESSOR ASSY, A/C
|
4472800070 |
— | ||
|
87014A
|
87014A
MR568288
COMPRESSOR ASSY, A/C
|
MR568288 |
— | ||
|
87669
|
87669
MB332584
SCREW, A/C COMPRESSOR
|
MB332584 |
— | ||
|
87674
|
87674
MB609774 WASHER, A/C COMPRESSORPlain,0.1 |
MB609774 |
US $0.59 |
||
|
87674
|
87674
MB609775 WASHER, A/C COMPRESSORPlain,0.3 |
MB609775 |
US $0.76 |
||
|
87674
|
87674
MB609776 WASHER, A/C COMPRESSORPlain,0.5 |
MB609776 |
US $0.76 |
||
|
87677B
|
87677B
MR398398 SNAP RING, A/C COMPRESSOR |
MR398398 |
US $2.13 |
||
|
87677C
|
87677C
MB239621
SNAP RING, A/C COMPRESSOR
|
MB239621 |
— | ||
|
87684
|
87684
MR958180
BOLT, A/C COMPRESSOR
|
MR958180 |
— | ||
|
87684B
|
87684B
MF244866 BOLT, T/M CONNECTINGWasher assembled,8x75 |
MF244866 |
US $2.46 |
||
|
87684H
|
87684H
MF303883 BOLT, A/C COMPRESSORWasher assembled,10x60 |
MF303883 |
US $3.83 |
||
|
87684J
|
87684J
MF303369 BOLT, OIL FILTERWasher assembled,10x40 |
MF303369 |
US $2.19 |
||
|
87684K
|
87684K
MF300860 BOLT, WATER PUMPWasher assembled,10x100 |
MF300860 |
US $4.10 |
||
