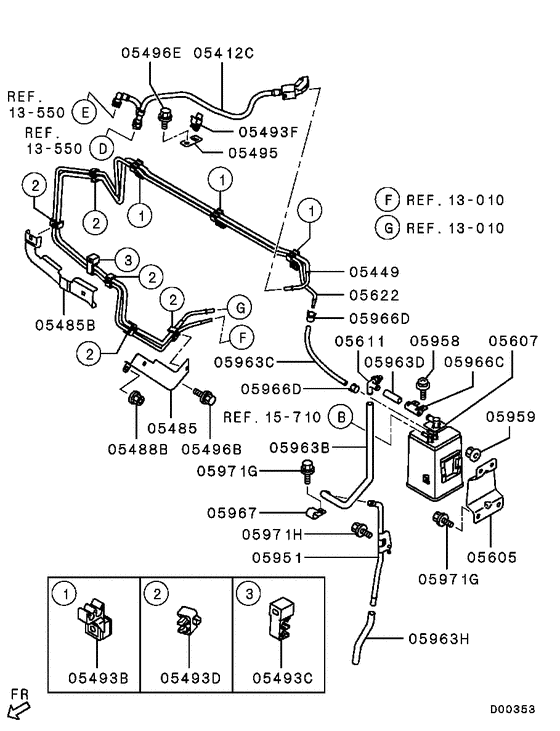

Fuel line & vapor gas control (W/BREATHER VALVE) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 2006 - 2008
- Sales region
- Japan
- Note
- VR-1/VR(NSS4),S4FA/T
- transmission
- S4FA/T
- grade
- VR-1/VR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05412C
|
05412C
1741A357 HOSE, FUEL HIGH PRESSURE |
1741A357 |
US $53.35 |
||
|
05449
|
05449
1741A348 PIPE, FUEL LINE |
1741A348 |
US $54.02 |
||
|
05485
|
05485
1741A353 STONE GUARD, FUEL LINE |
1741A353 |
from US $9.71 |
||
|
05485B
|
05485B
1741A354 STONE GUARD, FUEL LINE |
1741A354 |
US $11.40 |
||
|
05488B
|
05488B
MF434104 NUT, ROCKER COVERFlange,8 |
MF434104 |
from US $0.55 |
||
|
05493B
|
05493B
1748A067 CLIP, FUEL LINE |
1748A067 |
from US $4.92 |
||
|
05493C
|
05493C
1748A069 CLIP, FUEL LINE |
1748A069 |
US $3.56 |
||
|
05493D
|
05493D
1748A068 CLIP, FUEL LINE |
1748A068 |
US $3.56 |
||
|
05493F
|
05493F
1748A024 CLIP, FUEL LINE |
1748A024 |
from US $1.83 |
||
|
05495
|
05495
1741A369 BRACKET, FUEL LINE |
1741A369 |
US $2.66 |
||
|
05496B
|
05496B
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.68 |
||
|
05496E
|
05496E
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.68 |
||
|
05605
|
05605
MR404822 BRACKET, FUEL VAPOR CANISTER |
MR404822 |
US $18.50 |
||
|
05607
|
05607
MR464470 CANISTER, FUEL VAPOR |
MR464470 |
US $88.24 |
||
|
05611
|
05611
MR224204 CHECK VALVE, FUEL VAPOR CONTROL |
MR224204 |
US $11.10 |
||
|
05611
|
05611
MR497568 JOINT, FUEL VAPOR CONTROL LINE |
MR497568 |
US $3.01 |
||
|
05622
|
05622
1742A144 PIPE, FUEL VAPOR |
1742A144 |
US $48.84 |
||
|
05951
|
05951
1744A046 PIPE, FUEL VAPOR CONTROL LINE |
1744A046 |
US $22.20 |
||
|
05958
|
05958
MF350745 SCREW, FUEL RETURN LINEWasher assembled,4x12 |
MF350745 |
US $0.74 |
||
|
05959
|
05959
MF434104 NUT, ROCKER COVERFlange,8 |
MF434104 |
from US $0.55 |
||
|
05963B
|
05963B
1744A044 HOSE, FUEL VAPOR CONTROL LINE |
1744A044 |
US $17.02 |
||
|
05963C
|
05963C
MU602845 HOSE, FUEL TANK6x450 |
MU602845 |
from US $5.30 |
||
|
05963D
|
05963D
MS605580 HOSE, FUEL TANK11x2000 |
MS605580 |
US $72.50 |
||
|
05963H
|
05963H
1744A048 HOSE, FUEL VAPOR CONTROL LINE |
1744A048 |
US $5.77 |
||
|
05966C
|
05966C
MB658570 CLIP, FUEL VAPOR CONTROL LINE17.5 |
MB658570 |
US $5.18 |
||
|
05966D
|
05966D
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05967
|
05967
MR443528 CLIP, FUEL VAPOR CONTROL LINE |
MR443528 |
US $2.81 |
||
|
05971G
|
05971G
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
||
|
05971H
|
05971H
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.68 |
||
|
