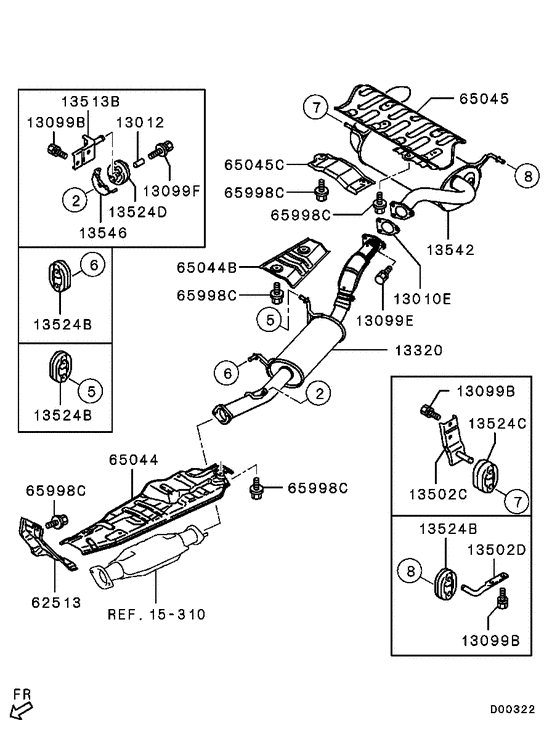

Exhaust pipe & muffler (ALL) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 2007 - 2008
- Sales region
- Japan
- Note
- VR-1(NSS4),S4FA/T
- transmission
- S4FA/T
- grade
- VR-1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13010E
|
13010E
MN110644 GASKET, CATALYTIC CONVERTER |
MN110644 |
from US $4.60 |
||
|
13012
|
13012
MB514690 COLLAR, EXHAUST PIPE |
MB514690 |
from US $1.85 |
||
|
13099B
|
13099B
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
13099E
|
13099E
MF241286 BOLT, COOLING FANWasher assembled,10x35 |
MF241286 |
from US $1.09 |
||
|
13099F
|
13099F
MF243660 BOLT, RADIATORWasher assembled,8x45 |
MF243660 |
from US $1.58 |
||
|
13320
|
13320
MN171129 PIPE, EXHAUST, CTR |
MN171129 |
US $403.31 |
||
|
13502C
|
13502C
MR431358 BRACKET, EXHAUST MUFFLER HANGER |
MR431358 |
US $9.77 |
||
|
13502C
|
13502C
MR481633 BRACKET, EXHAUST MUFFLER HANGER |
MR481633 |
US $13.02 |
||
|
13502D
|
13502D
MR431359 BRACKET, EXHAUST MUFFLER HANGER |
MR431359 |
US $13.02 |
||
|
13513B
|
13513B
MR431356 BRACKET, EXHAUST MUFFLER HANGER |
MR431356 |
US $11.84 |
||
|
13513B
|
13513B
MR497909 BRACKET, EXHAUST MUFFLER HANGER |
MR497909 |
US $11.25 |
||
|
13524B
|
13524B
MB906124 HANGER, EXHAUST MUFFLER |
MB906124 |
from US $10.02 |
||
|
13524C
|
13524C
MB611936 HANGER, EXHAUST MUFFLER |
MB611936 |
from US $9.20 |
||
|
13524D
|
13524D
MB906128 HANGER, EXHAUST MUFFLER |
MB906128 |
from US $6.20 |
||
|
13542
|
13542
1571A319 MUFFLER, EXHAUST MAIN |
1571A319 |
US $371.28 |
||
|
13546
|
13546
MB687527 PROTECTOR, EXHAUST MUFFLER HANGER |
MB687527 |
US $8.21 |
||
|
62513
|
62513
MR440980 PROTECTOR, DASH PANEL HEAT, LWR |
MR440980 |
US $59.51 |
||
|
65044
|
65044
MR505779 PROTECTOR, UNDER FLOOR HEAT, FR |
MR505779 |
US $64.98 |
||
|
65044B
|
65044B
5374A051 PROTECTOR, UNDER FLOOR HEAT, FR |
5374A051 |
US $23.68 |
||
|
65045
|
65045
5374A057 PROTECTOR, UNDER FLOOR HEAT, RR |
5374A057 |
US $50.62 |
||
|
65045C
|
65045C
5374A052 PROTECTOR, UNDER FLOOR HEAT, RR |
5374A052 |
US $18.50 |
||
|
65998C
|
65998C
MS100221 BOLT, RADIATOR SHROUDFlange,6x12 |
MS100221 |
US $2.46 |
||
|
15 310
|
Exhaust manifold
15 310
|
||||
|
15 310
|
Exhaust manifold
15 310
|
||||
