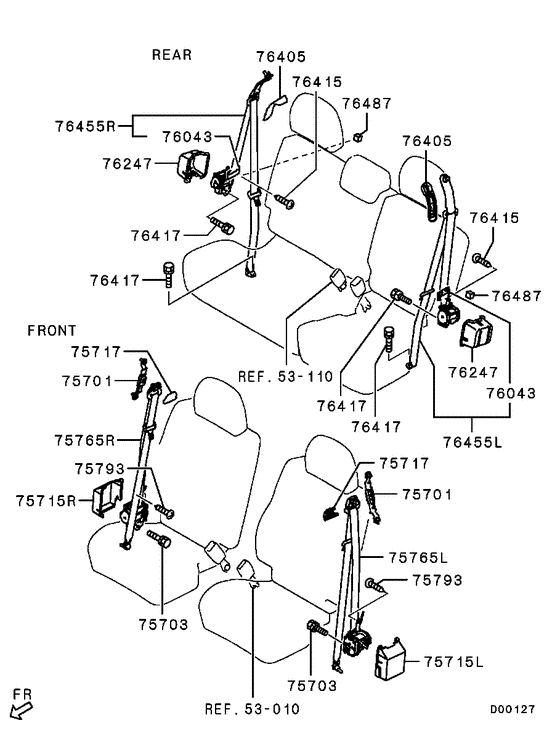

Seat belt (ALL) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 2007 - 2009
- Sales region
- Japan
- Note
- SUPER EXCEED EDITION(NSS4),S5FA/T
- transmission
- S5FA/T
- grade
- SUPER EXCEED ED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75701
|
75701
7005A021HB ADJUSTER, FR SEAT BELT ANCHOR, LH |
7005A021HB |
US $42.92 |
||
|
75703
|
75703
MB268795 BOLT, FLOOR CONSOLEWasher assembled,7/16x25 |
MB268795 |
from US $2.91 |
||
|
75715L
|
75715L
7003A017 COVER, FR SEAT BELT, LH |
7003A017 |
US $10.06 |
||
|
75715R
|
75715R
7003A018 COVER, FR SEAT BELT, RH |
7003A018 |
US $9.92 |
||
|
75717
|
75717
7010A001HC COVER, FR SEAT BELT SASH GUIDE |
7010A001HC |
US $4.59 |
||
|
75765L
|
75765L
7000A463XA SEAT BELT, FR SEAT PRE-TENSIONER, OTR LH |
7000A463XA |
US $486.30 |
||
|
75765R
|
75765R
7000A464XA SEAT BELT, FR SEAT PRE-TENSIONER, OTR RH |
7000A464XA |
US $486.30 |
||
|
75793
|
75793
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
76247
|
76247
MR279583 COVER, FR SEAT BELT |
MR279583 |
from US $0.92 |
||
|
76405
|
76405
MR655422 COVER, 2ND SEAT BELT SASH GUIDE |
MR655422 |
US $10.21 |
||
|
76415
|
76415
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
76417
|
76417
MB268795 BOLT, FLOOR CONSOLEWasher assembled,7/16x25 |
MB268795 |
from US $2.91 |
||
|
76455L
|
76455L
MR655424 SEAT BELT, 2ND SEAT, OTR LH3point |
MR655424 |
US $232.36 |
||
|
76455R
|
76455R
MR655425
SEAT BELT, 2ND SEAT, OTR RH
|
MR655425 |
— | ||
| replacement | |||||
|
76455R
|
76455R
7000B687
SEAT BELT, 2ND SEAT, OTR RH
|
7000B687 |
— | ||
|
76487
|
76487
6748A039 CUSHION, SEAT BELT RETRACTORRubber |
6748A039 |
US $5.03 |
||
|
53 010
|
Front seat
53 010
|
||||
|
53 010
|
Front seat
53 010
|
||||
|
53 110
|
Rear seat
53 110
|
||||
|
53 110
|
Rear seat
53 110
|
||||
|
53 110
|
Rear seat
53 110
|
||||
|
53 110
|
Rear seat
53 110
|
||||
|
53 110
|
Rear seat
53 110
|
||||
