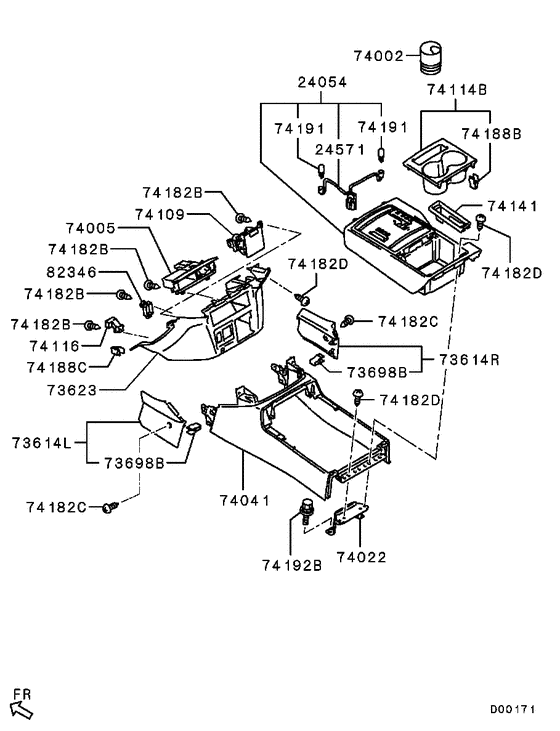

Console (FRONT..RHD(A/T)) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 2006 - 2008
- Sales region
- EUR
- Note
- GLS(NSS4/EURO4),S5FA/T RHD
- transmission
- S5FA/T
- grade
- GLS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24054
|
24054
8015A055HA PANEL, GEARSHIFT LEVER |
8015A055HA |
US $506.69 |
||
| replacement | |||||
|
24054
|
24054
8015A055HH PANEL, GEARSHIFT LEVERSILVER |
8015A055HH |
from US $332.44 |
||
|
24054
|
24054
8015A055HB
PANEL, GEARSHIFT LEVER
|
8015A055HB |
— | ||
| replacement | |||||
|
24054
|
24054
8015A055HG PANEL, GEARSHIFT LEVERSILVER/BROWN |
8015A055HG |
US $488.07 |
||
|
24571
|
24571
8015A064 SOCKET, GEARSHIFT LINK |
8015A064 |
US $18.47 |
||
|
73614L
|
73614L
8002A281XA COVER, INSTRUMENT PANEL CONSOLE SIDE, LH |
8002A281XA |
US $19.98 |
||
|
73614R
|
73614R
8002A282XA COVER, INSTRUMENT PANEL CONSOLE SIDE, RH |
8002A282XA |
US $19.98 |
||
|
73623
|
73623
8002A226XA PANEL, INSTRUMENT, LWR CTR |
8002A226XA |
US $78.44 |
||
|
73698B
|
73698B
MR402859 CLIP, FLOOR CONSOLE |
MR402859 |
from US $1.66 |
||
|
74002
|
74002
MR962039 ASHTRAY, FLOOR CONSOLE |
MR962039 |
US $67.34 |
||
| replacement | |||||
|
74002
|
74002
7600A012 ASHTRAY, FLOOR CONSOLE |
7600A012 |
US $57.72 |
||
|
74005
|
74005
8002A276XA BOX, FLOOR CONSOLE, FR |
8002A276XA |
US $78.66 |
||
|
74022
|
74022
MR402487 BRACKET, FLOOR CONSOLE, FR |
MR402487 |
US $9.44 |
||
|
74041
|
74041
8011A241XA CONSOLE, FLOOR, FR |
8011A241XA |
US $69.77 |
||
|
74109
|
74109
8042A037XA LID, FLOOR CONSOLE ACCESSORY BOX |
8042A037XA |
US $28.12 |
||
|
74114B
|
74114B
8041A019HA HOLDER, FLOOR CONSOLE BOX CUP |
8041A019HA |
US $107.39 |
||
|
74114B
|
74114B
8041A019YA HOLDER, FLOOR CONSOLE BOX CUP |
8041A019YA |
US $91.66 |
||
|
74116
|
74116
8011A459 COVER, FLOOR CONSOLE, INR |
8011A459 |
from US $6.42 |
||
|
74141
|
74141
8015A022XA COVER, FLOOR CONSOLE PARKING BRAKE LEVER |
8015A022XA |
US $18.47 |
||
|
74182B
|
74182B
MF453017 SCREWTapping,4x12 |
MF453017 |
from US $1.46 |
||
|
74182C
|
74182C
MF453092 SCREW, HEATER CONTROL PANELTapping,5x14 |
MF453092 |
from US $1.40 |
||
|
74182C
|
74182C
MF453272 SCREW, RR SHELF TRIM(5x14) |
MF453272 |
US $1.64 |
||
|
74182D
|
74182D
MF453032 SCREW, STEERING WHEELTapping,5x14 |
MF453032 |
from US $1.31 |
||
|
74182D
|
74182D
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
74188B
|
74188B
MR402859 CLIP, FLOOR CONSOLE |
MR402859 |
from US $1.66 |
||
|
74188C
|
74188C
MR402859 CLIP, FLOOR CONSOLE |
MR402859 |
from US $1.66 |
||
|
74191
|
74191
MS820083 BULB, GEARSHIFT LINK |
MS820083 |
from US $2.15 |
||
|
74192B
|
74192B
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
||
|
82346
|
82346
8042A041 HOLDER, INSTRUMENT PANEL SWITCH |
8042A041 |
US $5.88 |
||
